E Connectors - Interior Harness
E Connectors - Interior Harness

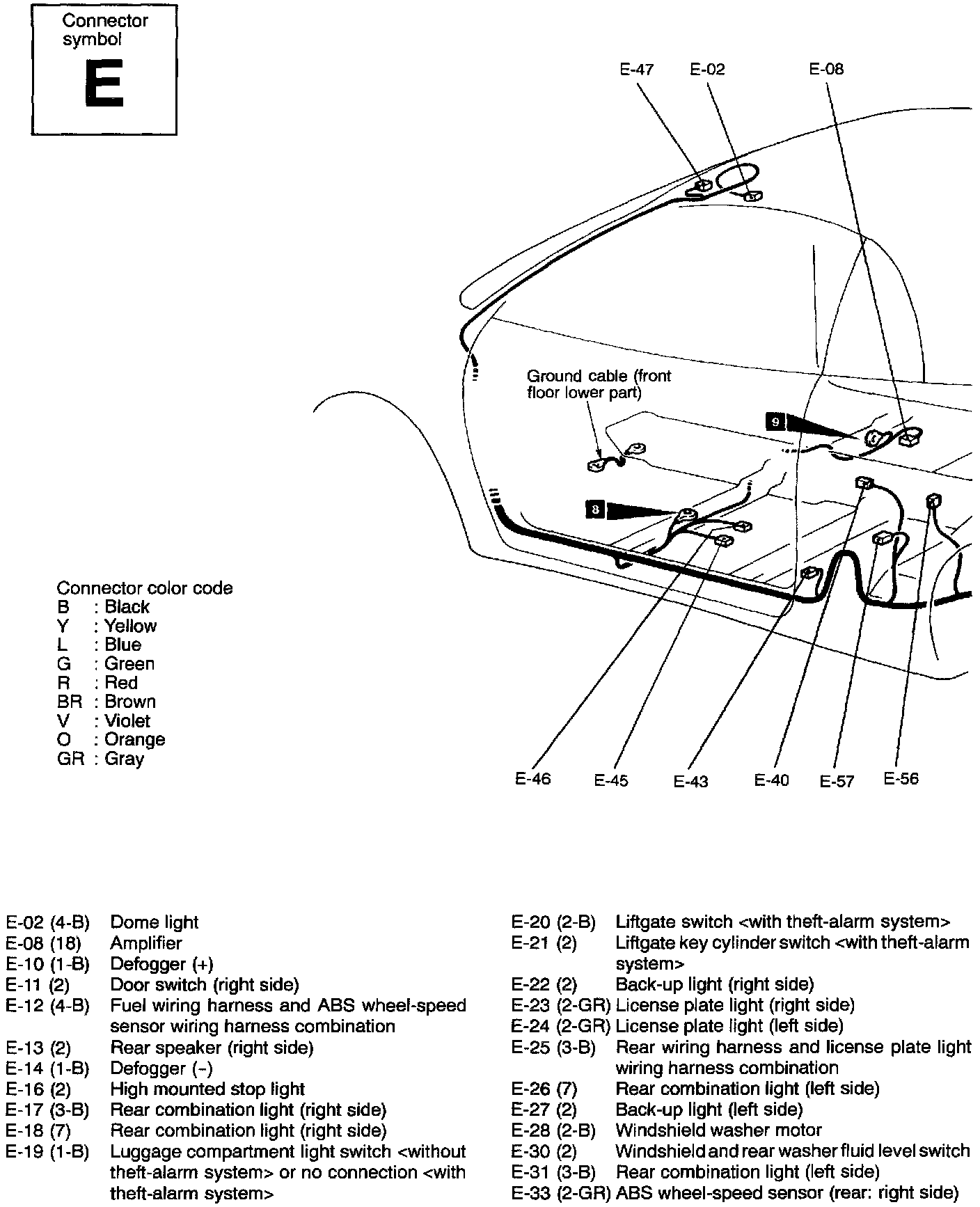

Interior - E Connector (02 (4-B) Thru 33 (2-GR)):

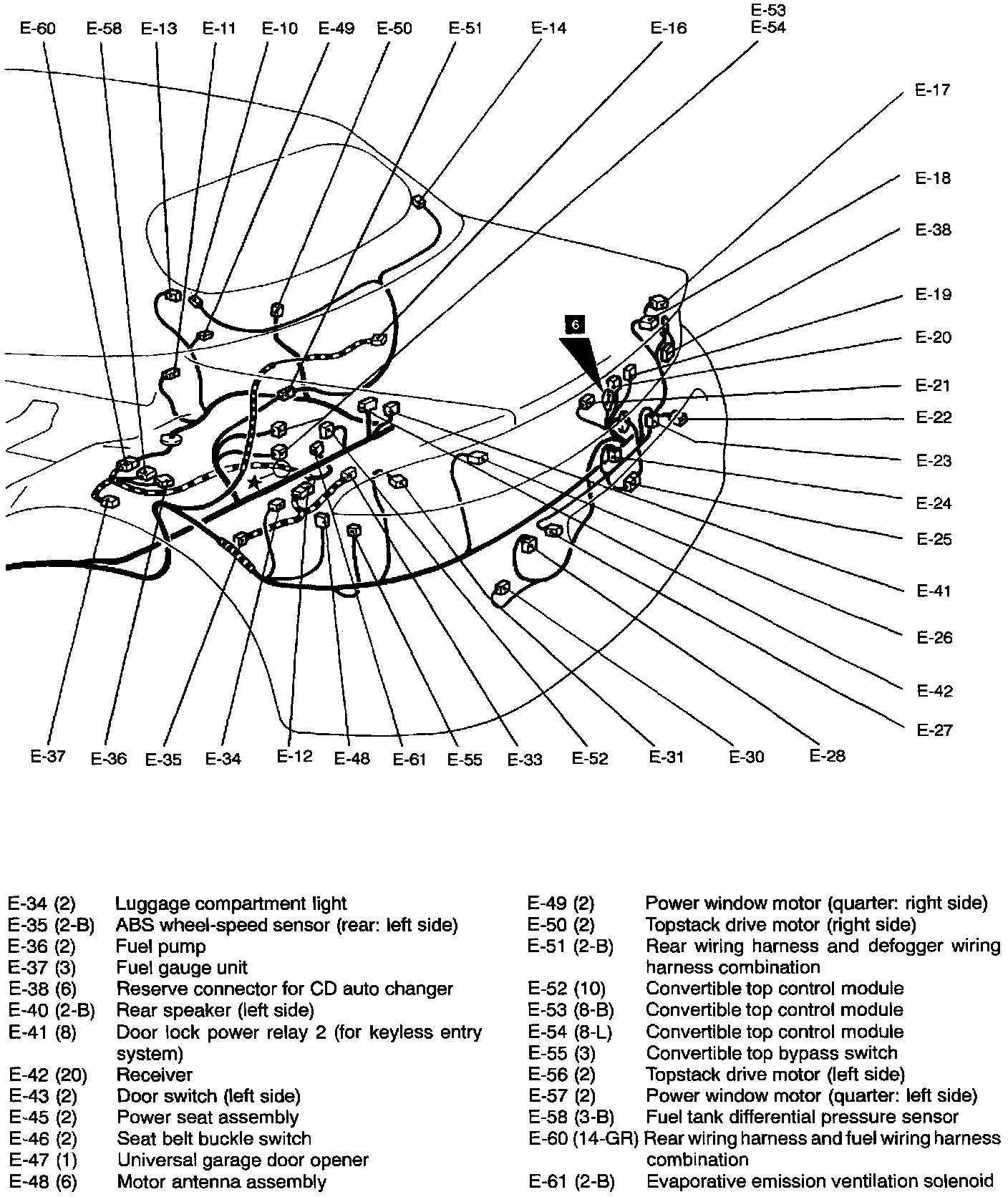

Interior - E Connector (34 (2) Thru 61 (2-B)):
