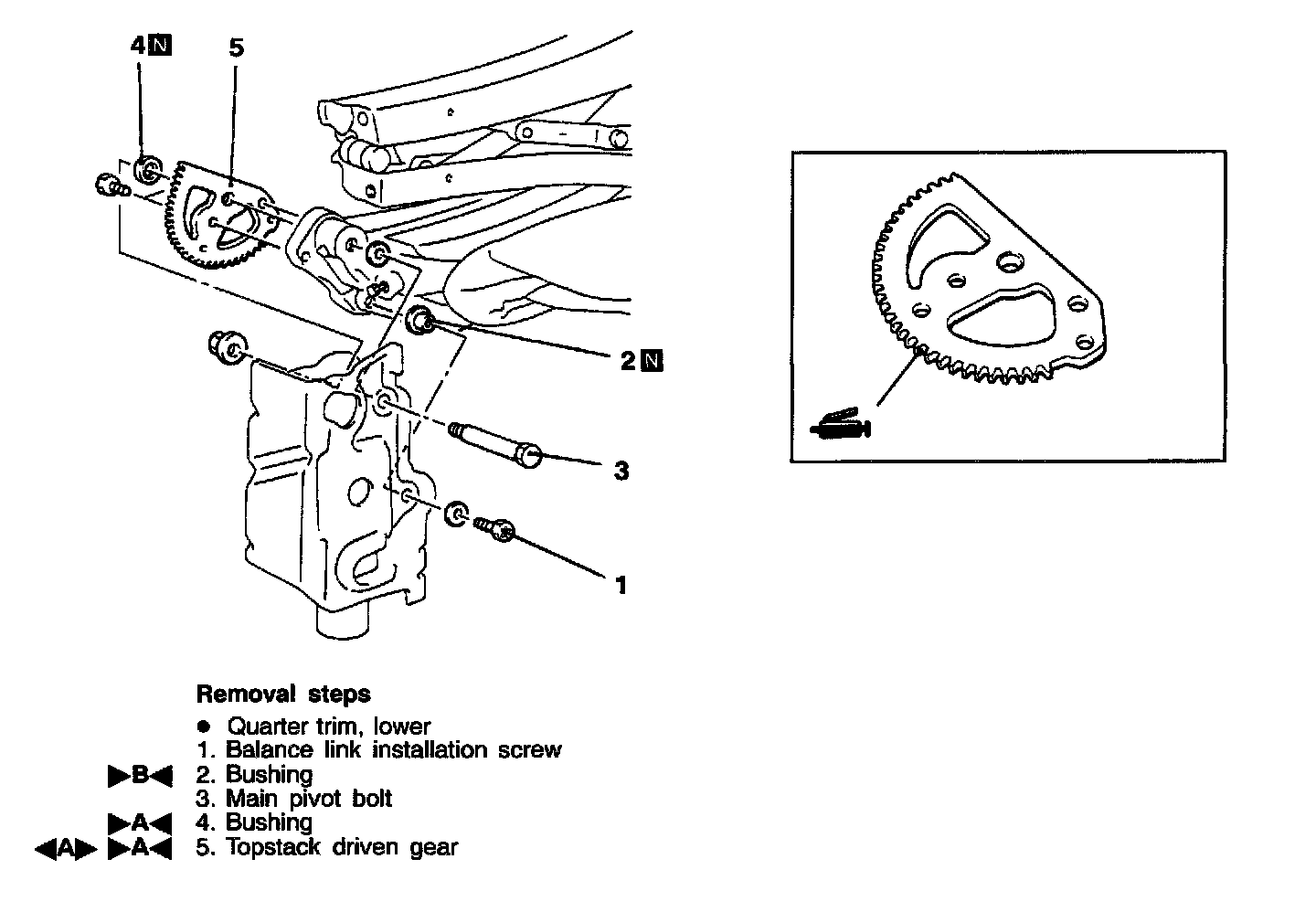

Topstack Driven Gear

REMOVAL SERVICE POINT
[A] TOPSTACK DRIVEN GEAR REMOVAL

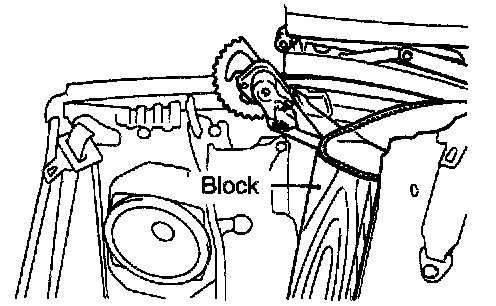

Lift pivot and support with 102 mm x 356 mm x 279 mm (4 in. x 14 in. x 11 in.) block of wood or equivalent.




INSTALLATION SERVICE POINTS
]A[ TOPSTACK DRIVEN GEAR/BUSHING INSTALLATION
1. Position the topstack driven gear and insert the main pivot bolt, then tighten two topstack driven gear installation bolts.
2. Remove the main pivot bolt.
3. Install the topstack driven gear to the main pivot complete bracket.

NOTE:
To align motor drive gear and topstack driven gear, change Bypass switch in left rear of trunk to manual position.

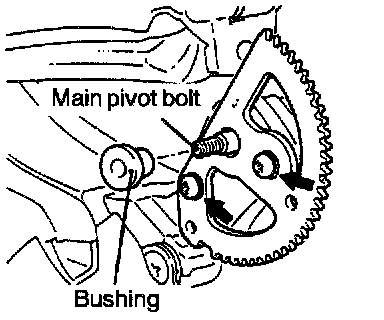

4. Insert the main pivot bolt and washer through the topstack driven gear.




]B[ BUSHING INSTALLATION

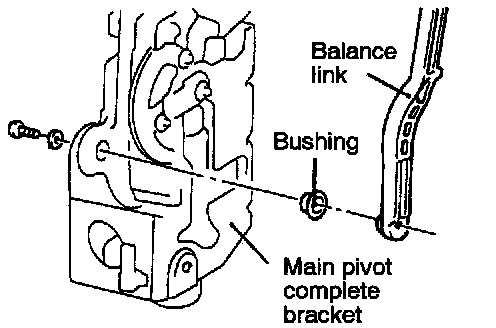

1. Insert bushing to balance link (shown orientation).
2. Install balance link into main pivot complete bracket.
3. Insert balance link installation screw, then tighten the screw.
