Topstack Drain Trough

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

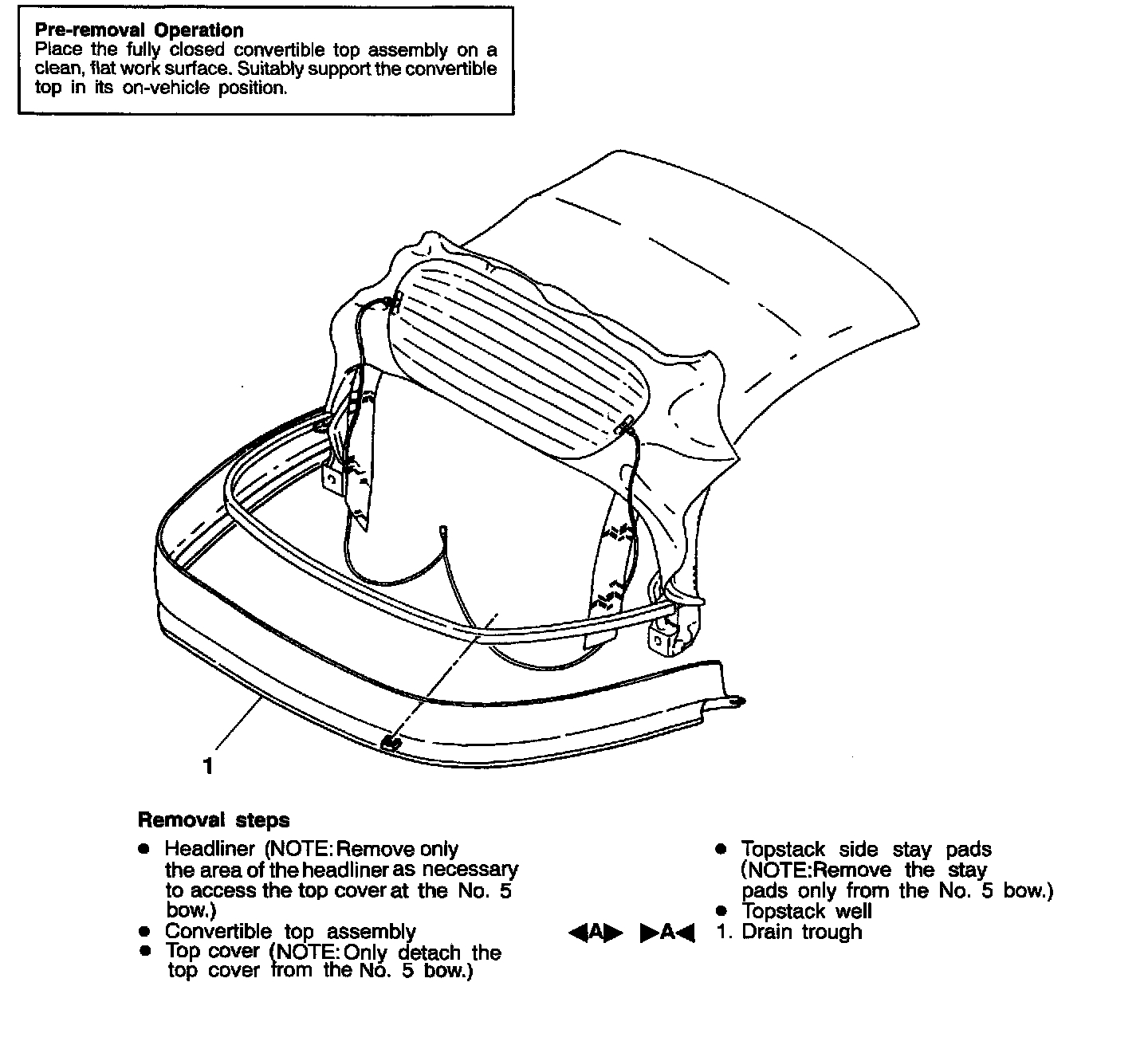

TOPSTACK DRAIN TROUGH REMOVAL

NOTE: Before unstapling the drain trough, note the location and quantity of the staples.

1. Note the orientation of the drain trough to the tackstrip.
2. Remove the drain attaching staples using an awl.

INSTALLATION SERVICE POINT

[A] TOPSTACK DRAIN TROUGH INSTALLATION
1. Measure and mark the center of the No.5 bow and center of the new drain trough.

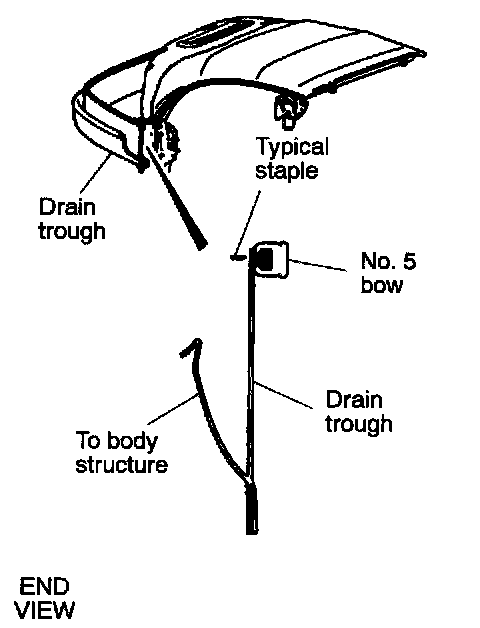

2. Position and align the drain trough to the No. 5 bow observing the center reference marks on both parts. Secure it in the center with a staple (0.375 in. x 0.319 in., stainless steel, divergent point). Ensure the drain trough is installed correctly, as shown in the illustrations.
3. Working from either side of the center staple, position and align the drain trough to the bow. Do not stretch it. Install the remaining staples.
