Convertible Top Assembly

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

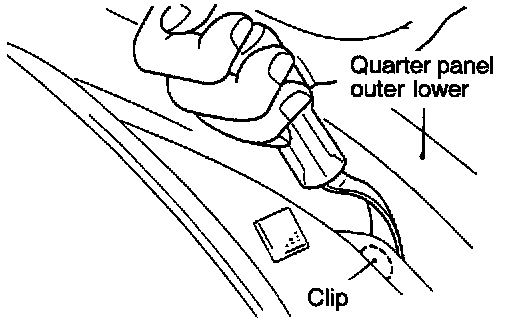

[A] CUP REMOVAL
Pry out 2 clips at each side using the prying tool.

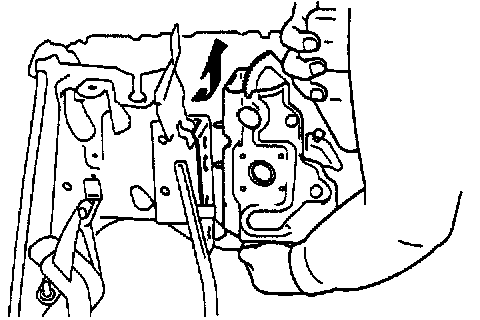

[B] DRAIN TROUGH REAR ATTACHING CLIP REMOVAL
Using the clip prying tool, remove 10 attaching clips.

CAUTION: Use care not to rip the drain trough during convertible top removal.

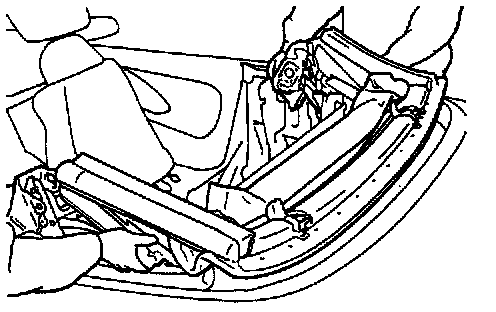

[C] CONVERTIBLE TOP ASSEMBLY REMOVAL
Pry one side back at a time.

CAUTION: Use care not to rip the drain trough during convertible top removal.

INSTALLATION SERVICE POINT

]A[ CONVERTIBLE TOP ASSEMBLY INSTALLATION




1. Insert rear bow into back of convertible top area first.

CAUTION: Use care not to rip the drain trough during convertible top removal.

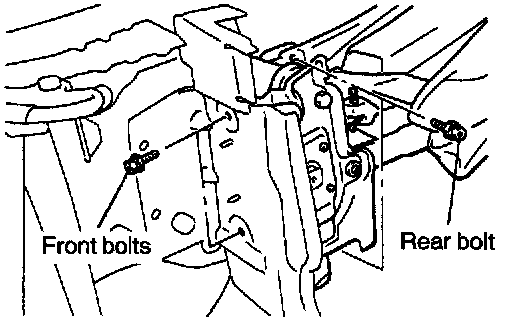

2. Snug front bolts first, then insert rear bolts.
