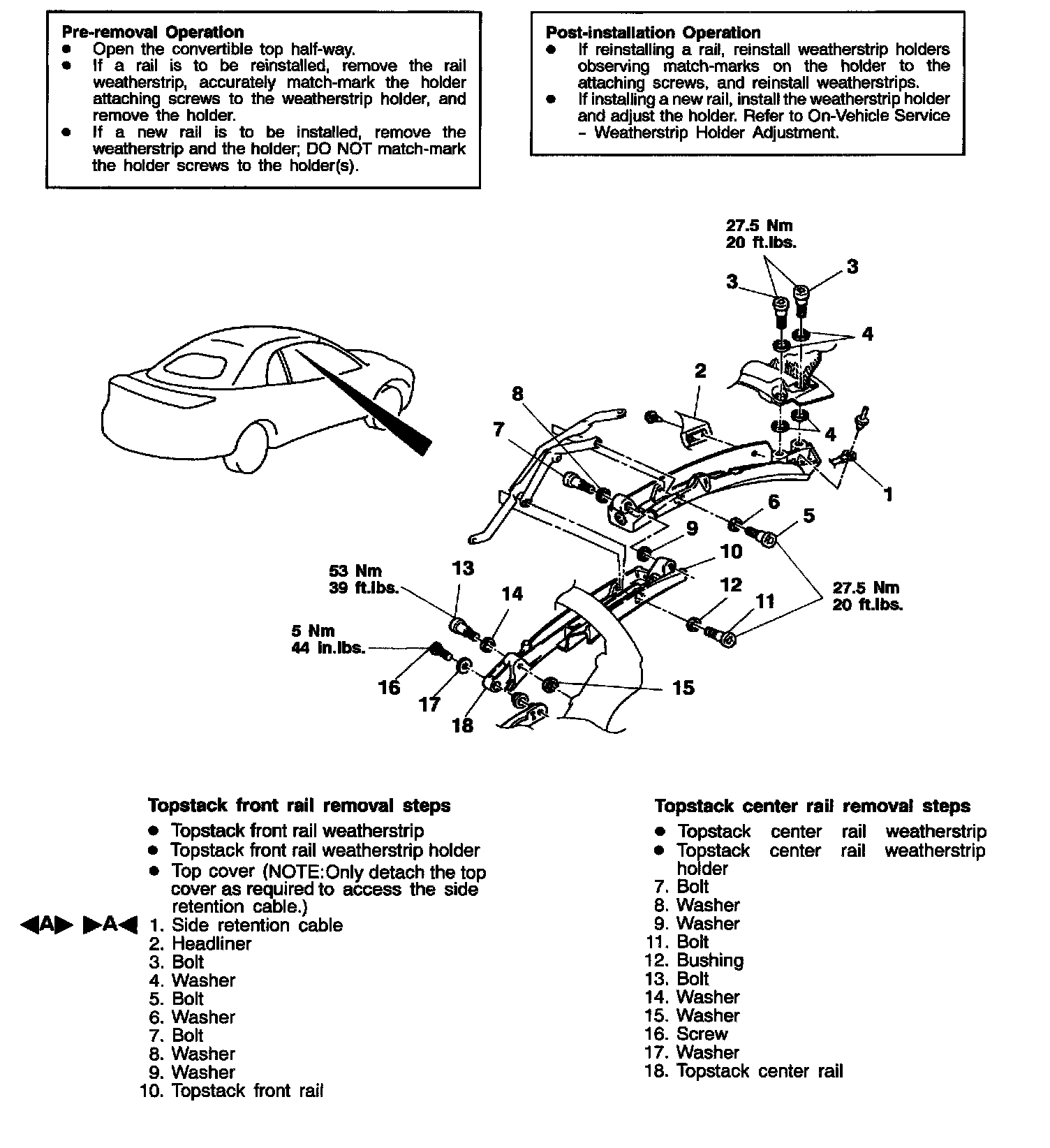

Topstack Front Rail and Center Rail

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[A] SIDE RETENTION CABLE REMOVAL
1. Protect the vehicle with a protective cover when drilling the rivet.
2. Using an 1/8 in. drill remove the rivet.

INSTALLATION SERVICE POINT

]A[ SIDE RETENTION CABLE INSTALLATION
1. Attach the cable to the front rail with an 1/8 in. x 0.500 protruding head, stainless steel rivet.
2. Remove the protective cover.
