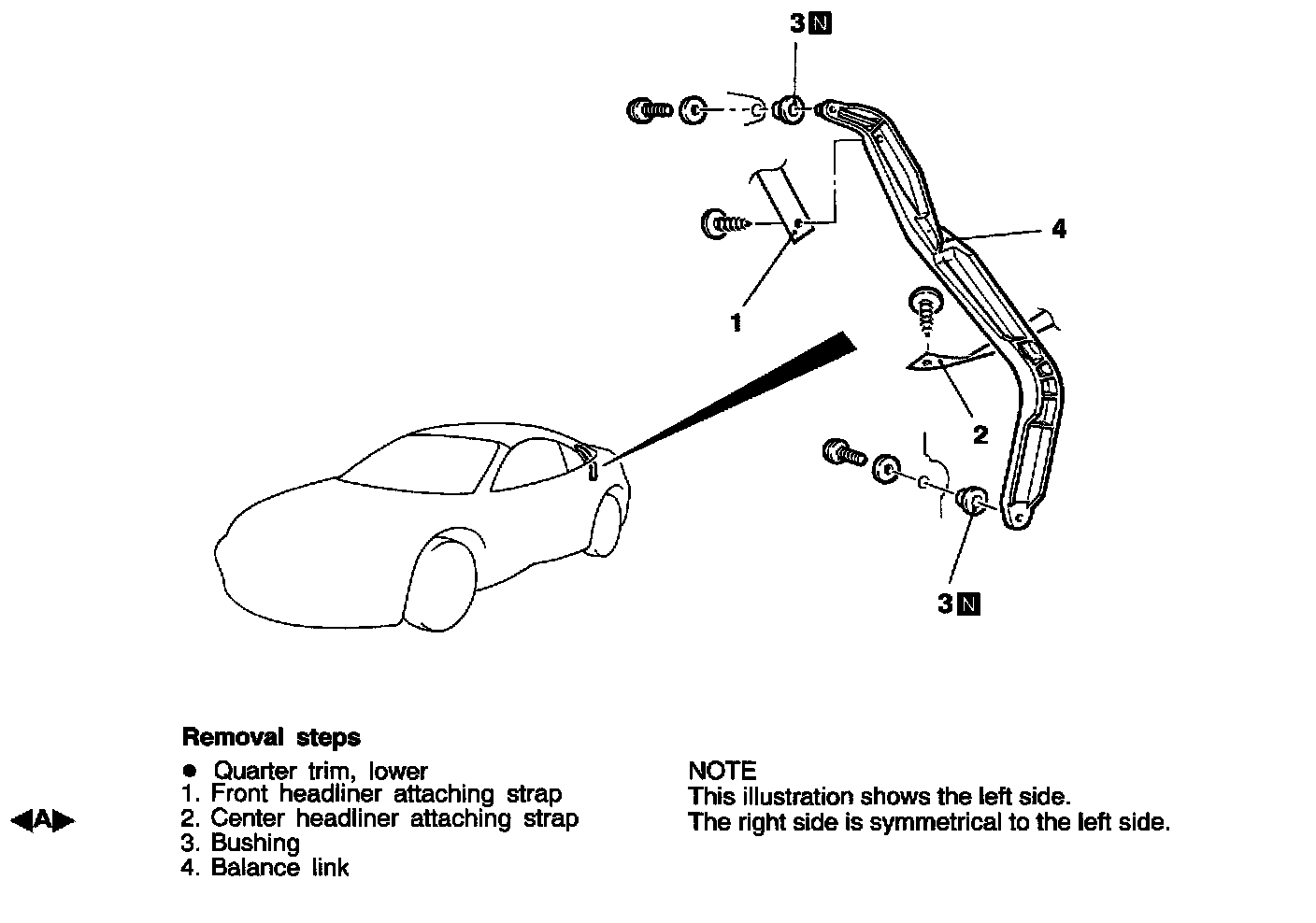

Balance Link




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[A] FRONT HEADLINER ATTACHING STRAP REMOVAL
From a fully closed position, raise the convertible top 102 mm to 153 mm (4 in. to 6 in.)
