Trunk / Liftgate: Service and Repair

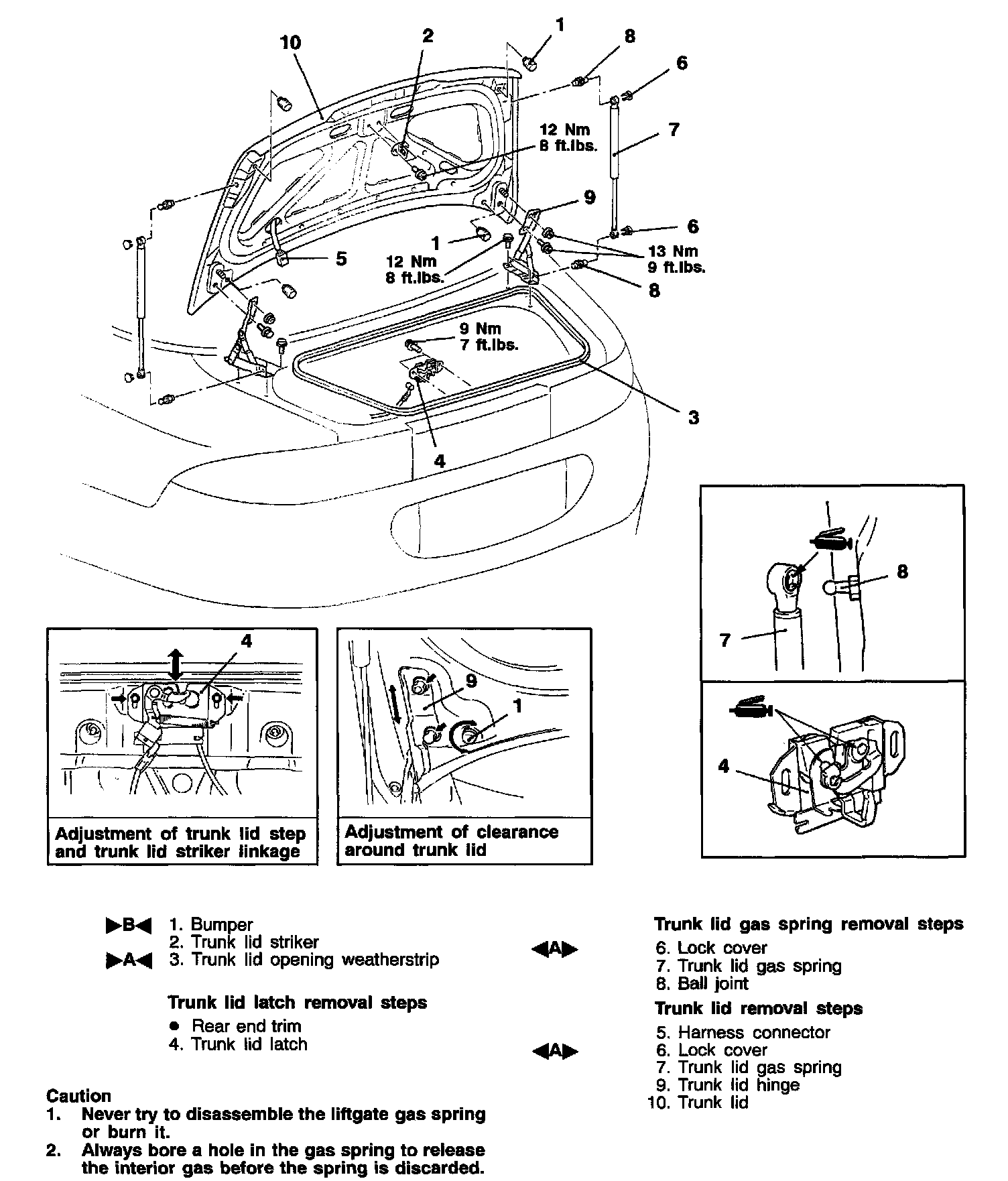

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[A] LOCK COVER REMOVAL
Insert a flat tip screwdriver, etc., into the slit, and remove the lock cover.

INSTALLATION SERVICE POINTS

]A[ TRUNK LID OPENING WEATHER-STRIP INSTALLATION

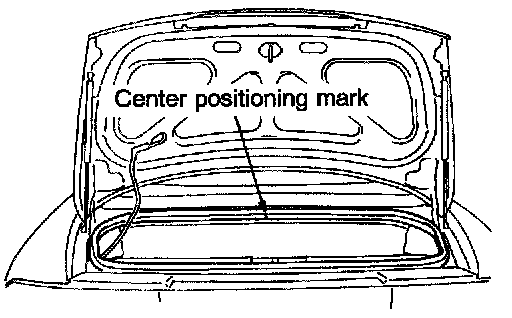

1. Install the trunk lid opening weather strip so that the marked part is at the position shown in the illustration.

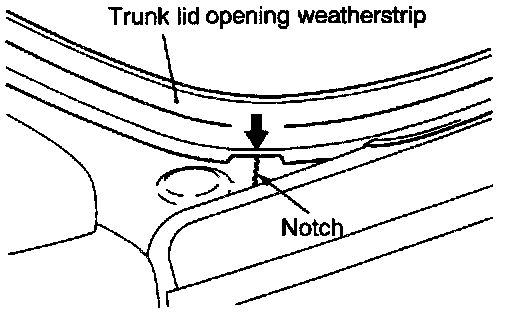

2. Install so that the notch on the trunk lid opening weather strip is approximately at the center of the panel notch shown in the illustration.

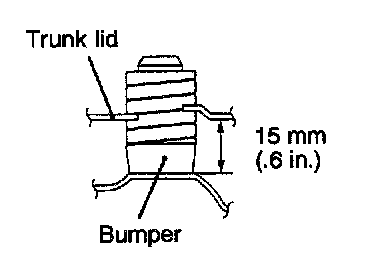

]B[ BUMPER INSTALLATION
Install the bumper as shown in the figure.
