Rear Wiper and Washer

WIPER MOTOR CHECK
Do not remove the motor and link assembly when checking.

Wiper Motor at Low Speed and High Speed Operation

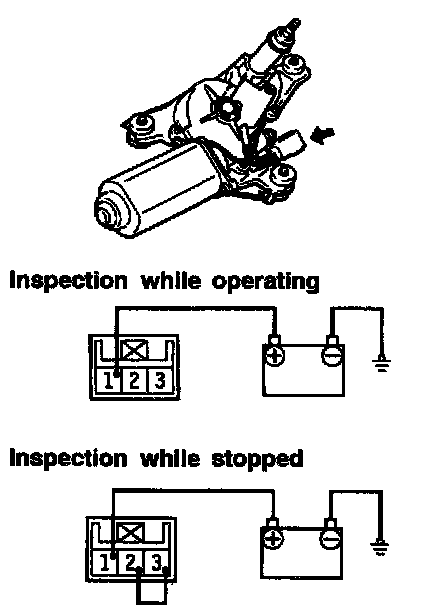

Connect a battery to the wiper motor as shown in the illustration and inspect motor operation at low speed and high speed.

Wiper Motor at Stop Position Operation
1. Run the wiper motor at low speed, disconnect the battery, and stop the motor.
2. Reconnect the battery as shown in the illustration, and confirm that after the motor starts turning at low speed, it stops at the automatic stop position.
