Windshield Washer Motor: Testing and Inspection

WASHER MOTOR CHECK
1. With the washer motor installed to the washer tank, fill the washer tank with water.

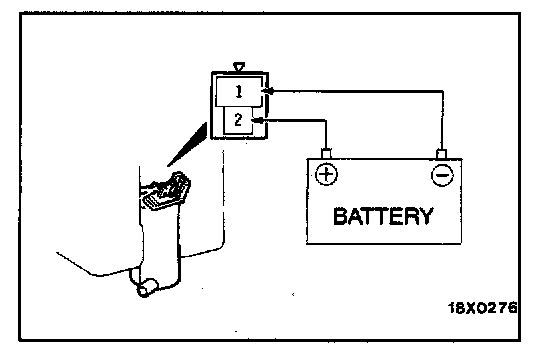

2. When the battery is connected as shown in the figure, check that the water squirts out strongly.
