Rear Wiper and Washer

TROUBLESHOOTING HINTS
1. Wipers do not operate.
1. Windshield wiper is not operative, either.
- Check the multi-purpose fuse No.9.
2. Low-speed wiper operation is inoperative.
- Check the wiper switch.
3. Intermittent wiper operation is inoperative.

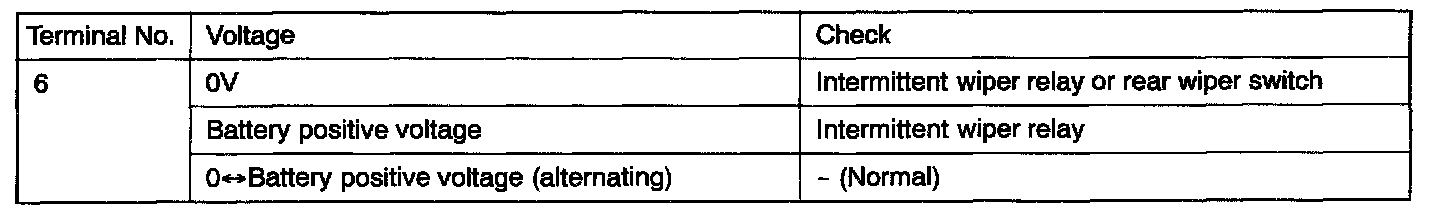

- Check terminal voltage of wiper switch (with a built-in intermittent wiper relay) with the intermittent wiper relay energized. (see table below.)
4. Wiper does not stop.
- Check the wiper motor.
- Check the intermittent wiper relay.
- Check the wiper switch.
5. Washer is inoperative.
1. Wiper is operative.
- Check the washer motor.
- Check the washer switch.
