Windshield Wiper and Washer

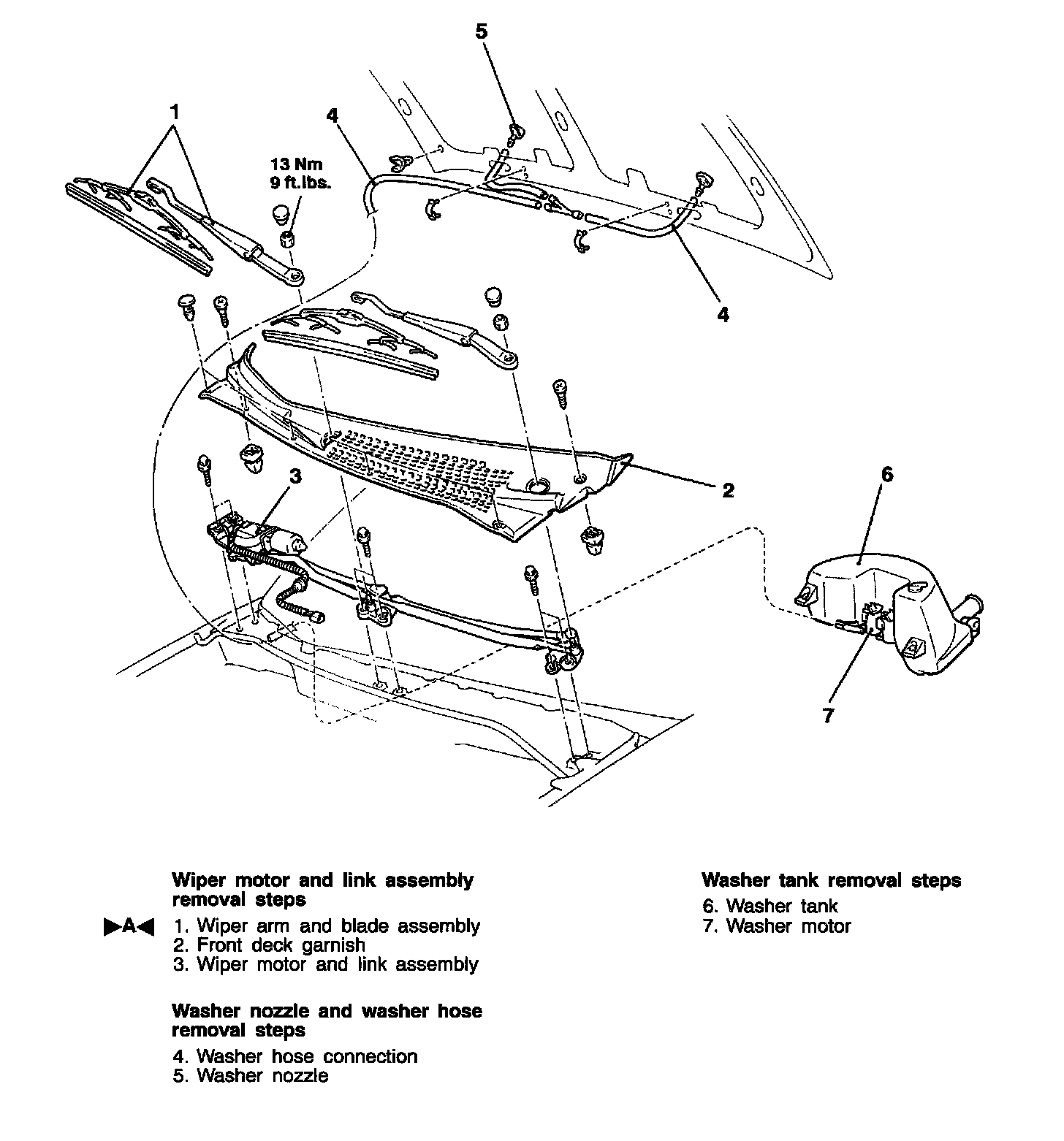

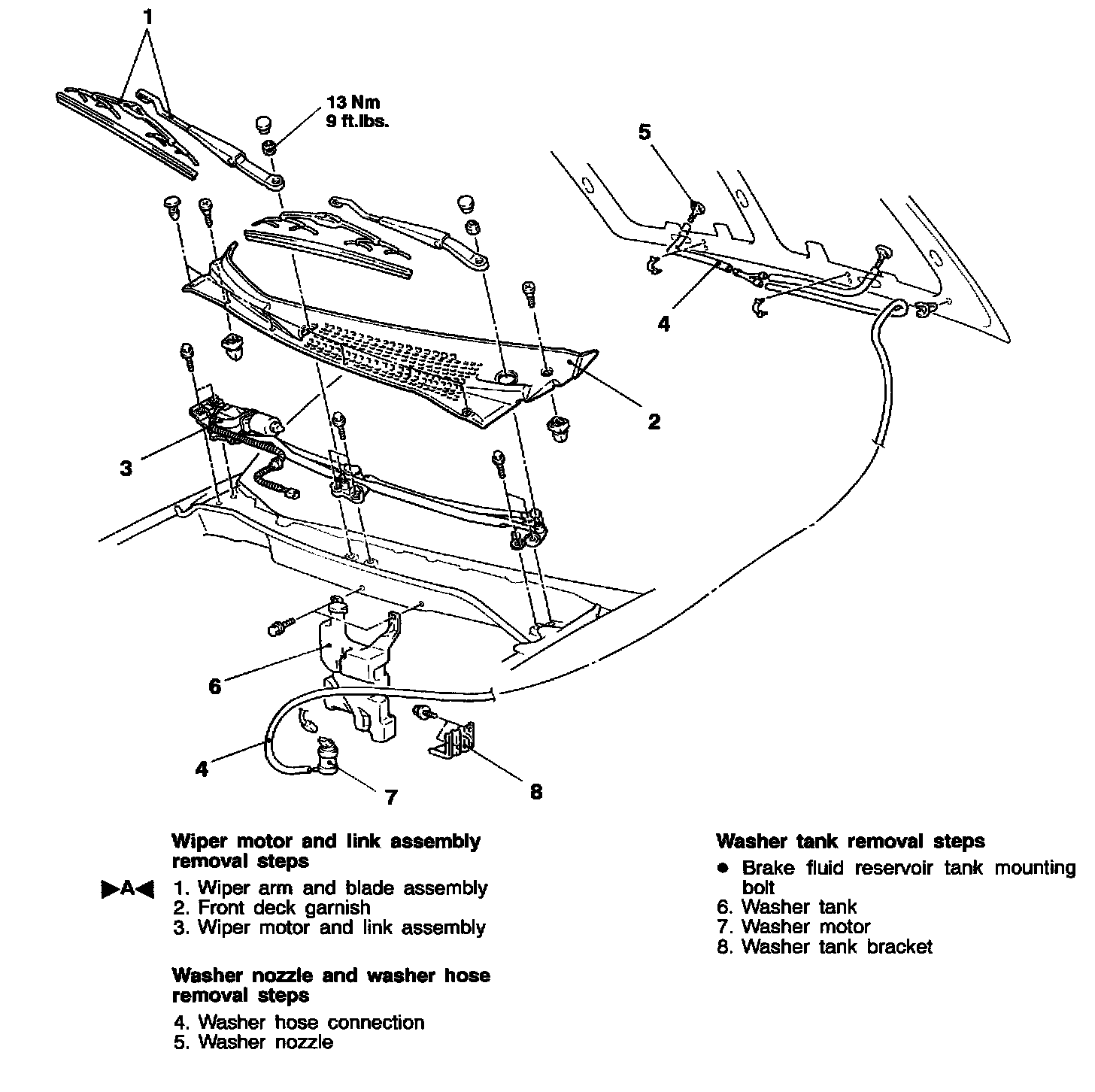

REMOVAL AND INSTALLATION

















INSTALLATION SERVICE POINT

WIPER ARM AND BLADE ASSEMBLY INSTALLATION

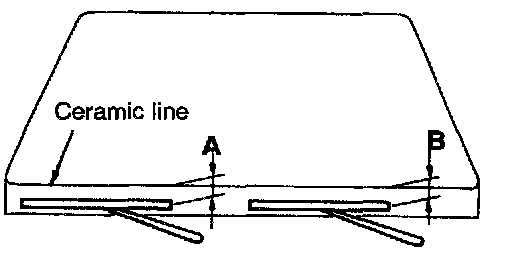

Adjust the wiper and blade assembly so that the clearances between the wiper blade edges and the ceramic line are at the standard value.
Standard value
(A): 47 ± 5 mm (1.85 ± 0.20 in.)
(B): 10 ± 5 mm (0.39 ± 0.20 in.)
