Rear Wiper and Washer

REMOVAL AND INSTALLATION

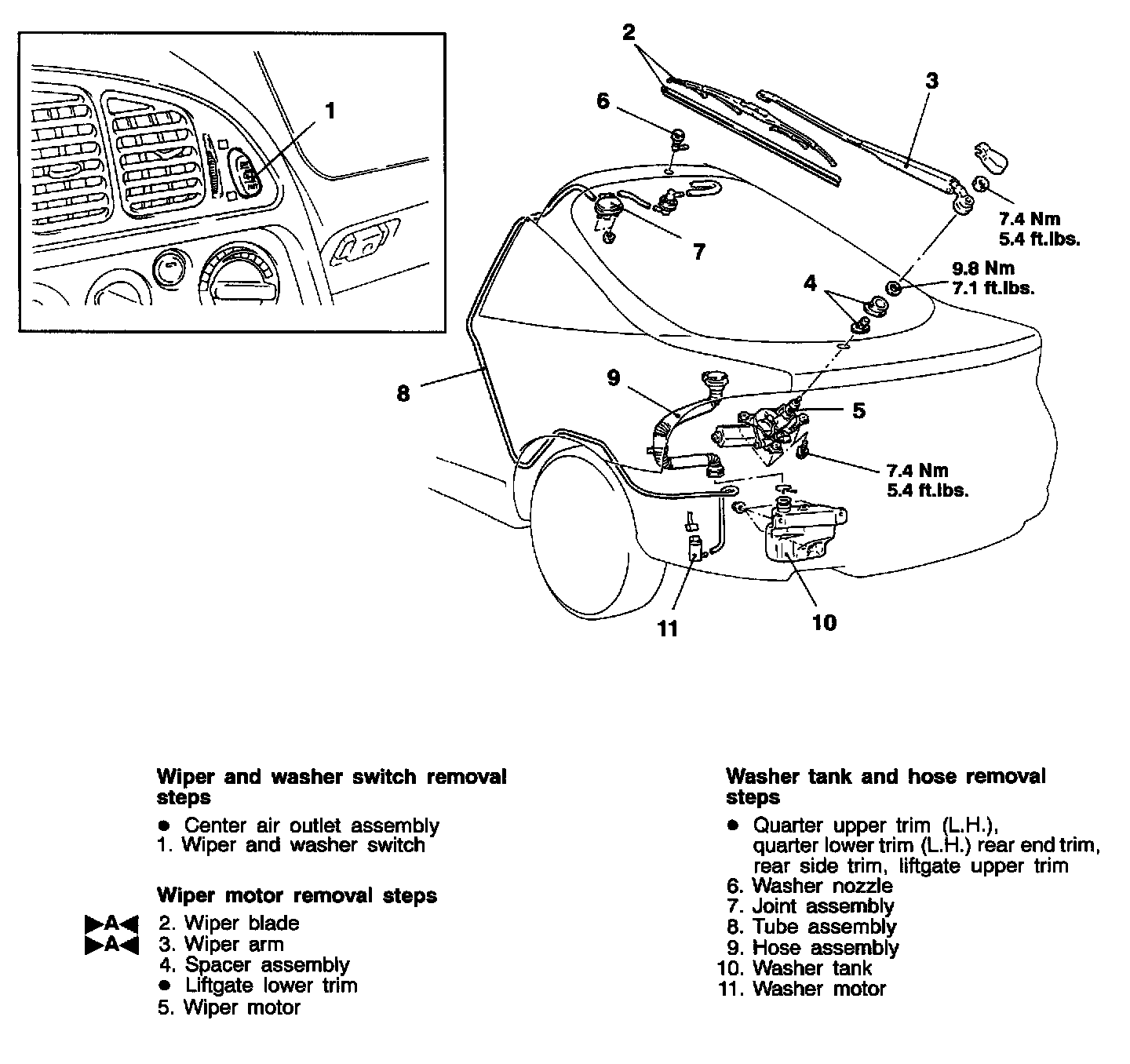

Non-turbo

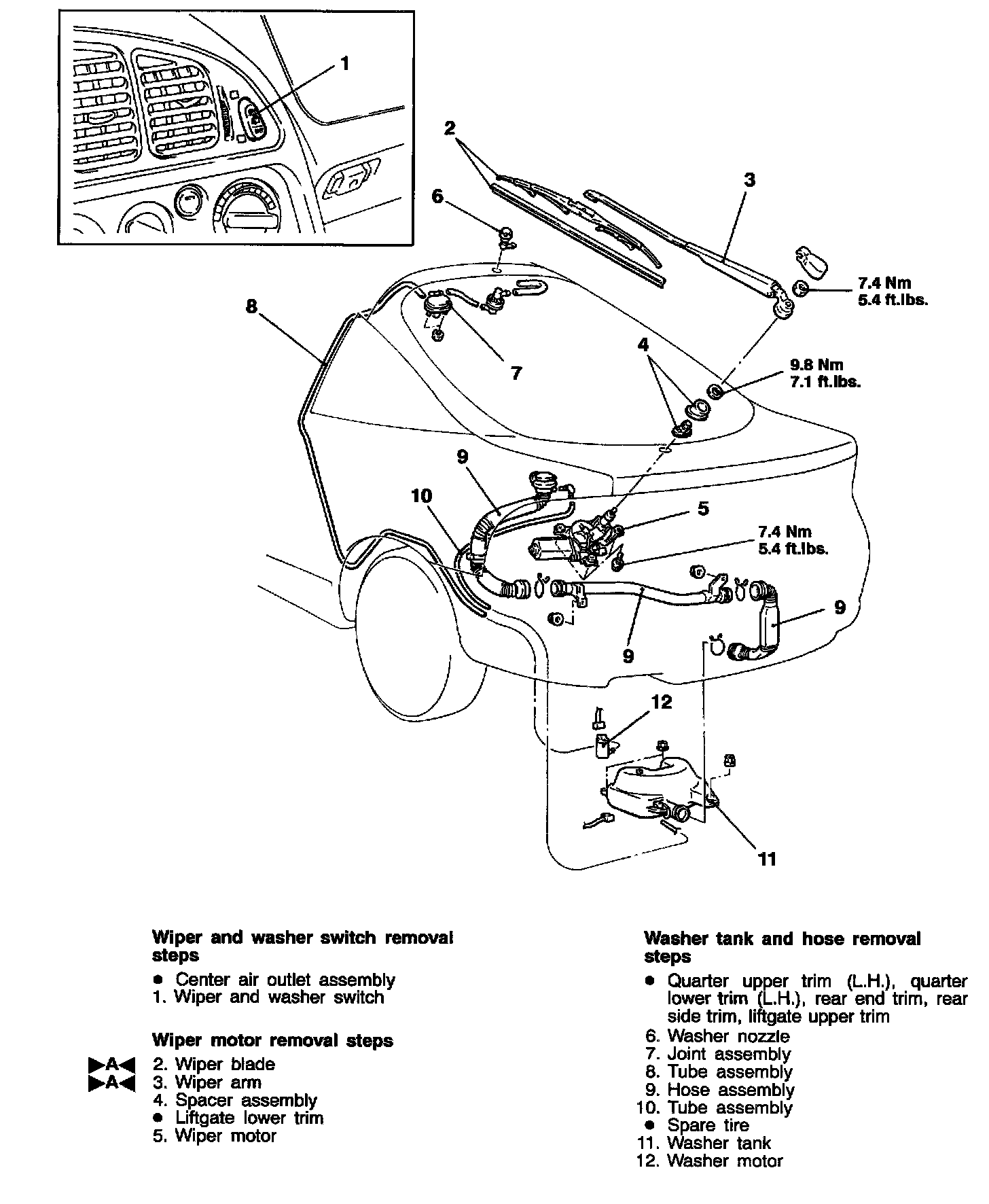

Turbo






INSTALLATION SERVICE POINT

WIPER ARM/WIPER BLADE INSTALLATION

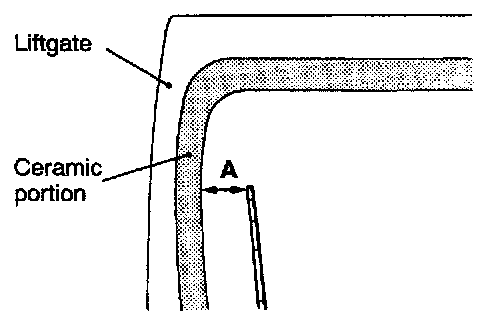

Adjust the wiper arm so that the clearance between the wiper blade edge and the ceramic portion is at the standard value.
Standard value (A): 130 ± 5 mm (5.18 ± 0.20 in.)
