Power Window Motor: Testing and Inspection

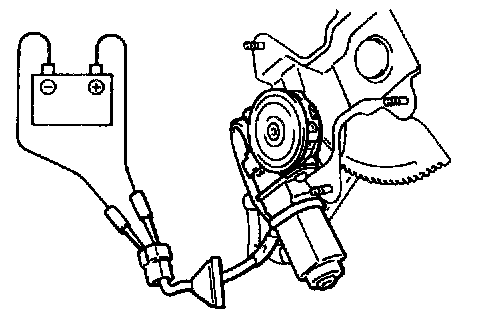

POWER WINDOW MOTOR CHECK (Motor With Regulator)
1. Check that the motor runs smoothly when the battery is connected directly to the motor terminals.
2. Furthermore, check that the motor operates in reverse when the terminal connections are switched.

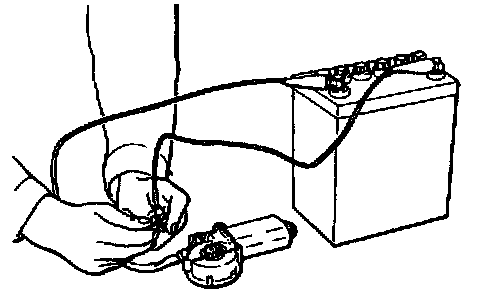

POWER WINDOW MOTOR CHECK
1. Check that the motor runs smoothly when the battery is connected directly to the motor terminals.
2. Furthermore, check that the motor operates in reverse when the terminal connections are switched.
