Power Window Circuit Breaker: Testing and Inspection

CIRCUIT BREAKER (INCORPORATED IN THE POWER WINDOW MOTOR) CHECK

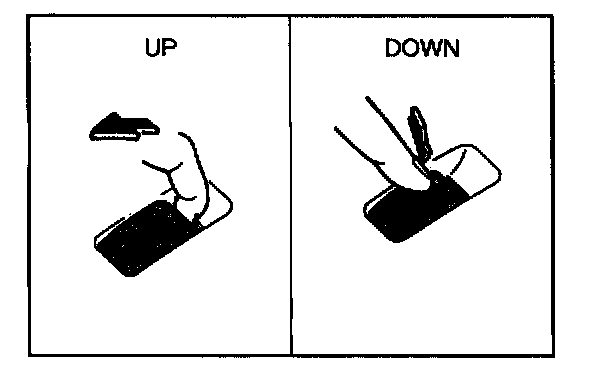

1. Lift the UP switch to fully close the window glass, and continue to lift the switch for 40 seconds.
2. As soon as the UP switch is released, press the DOWN switch. The circuit breaker can be considered good if at this time the door window glass begins to open within 60 seconds.
