Removal and Replacement

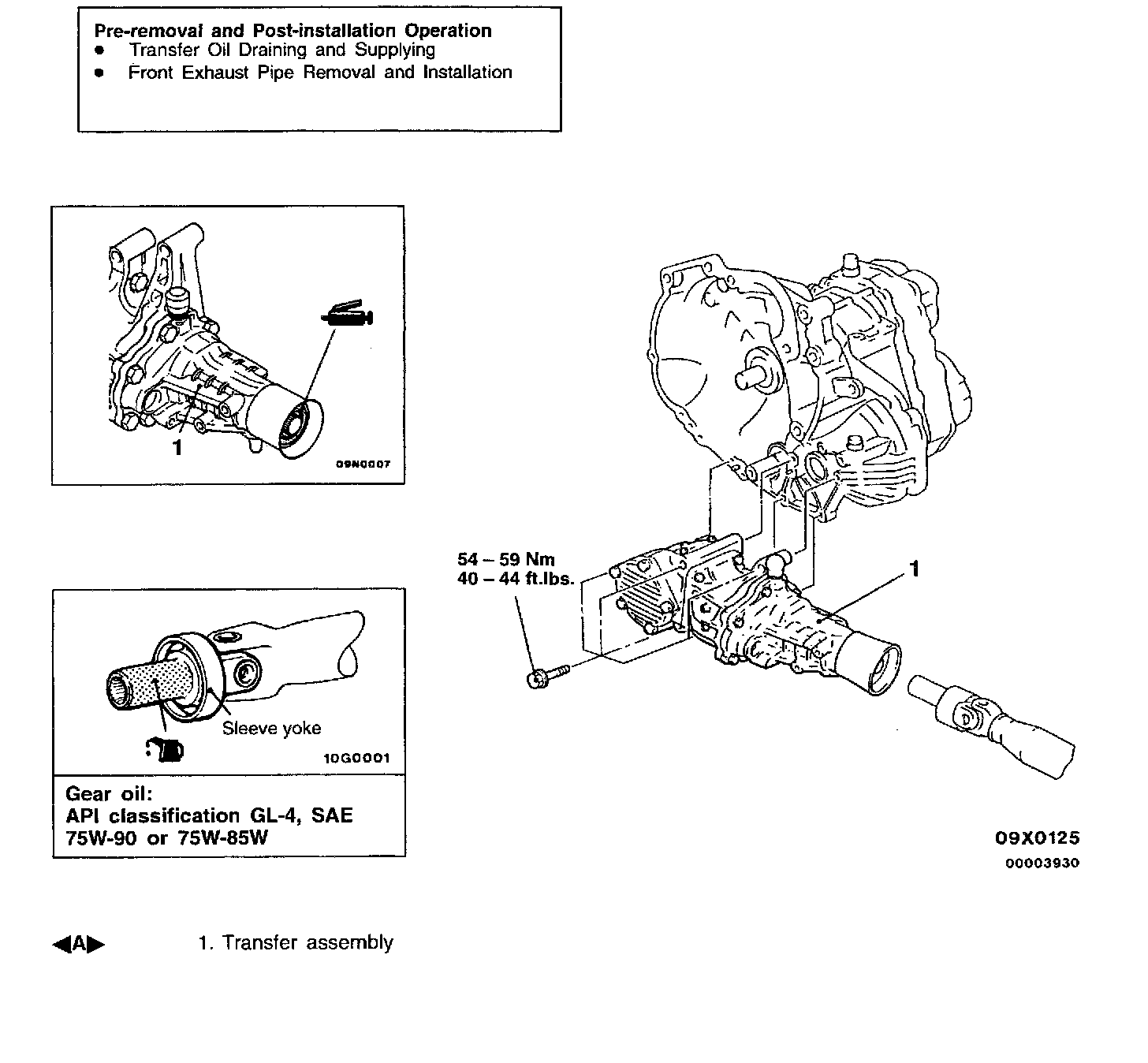

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
TRANSFER ASSEMBLY REMOVAL





CAUTION:

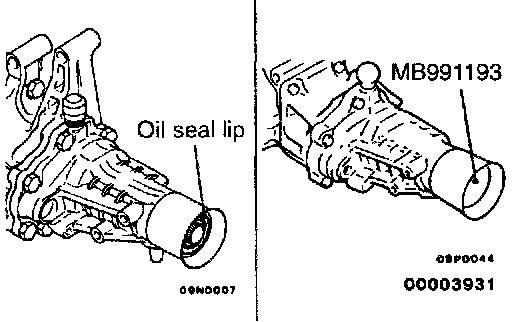

1. Do not damage the oil seal lip of the transfer.
2. Use the special tool to cover the transaxle case to prevent oil from gushing out or foreign materials from getting into the transaxle case.
