Extension Housing

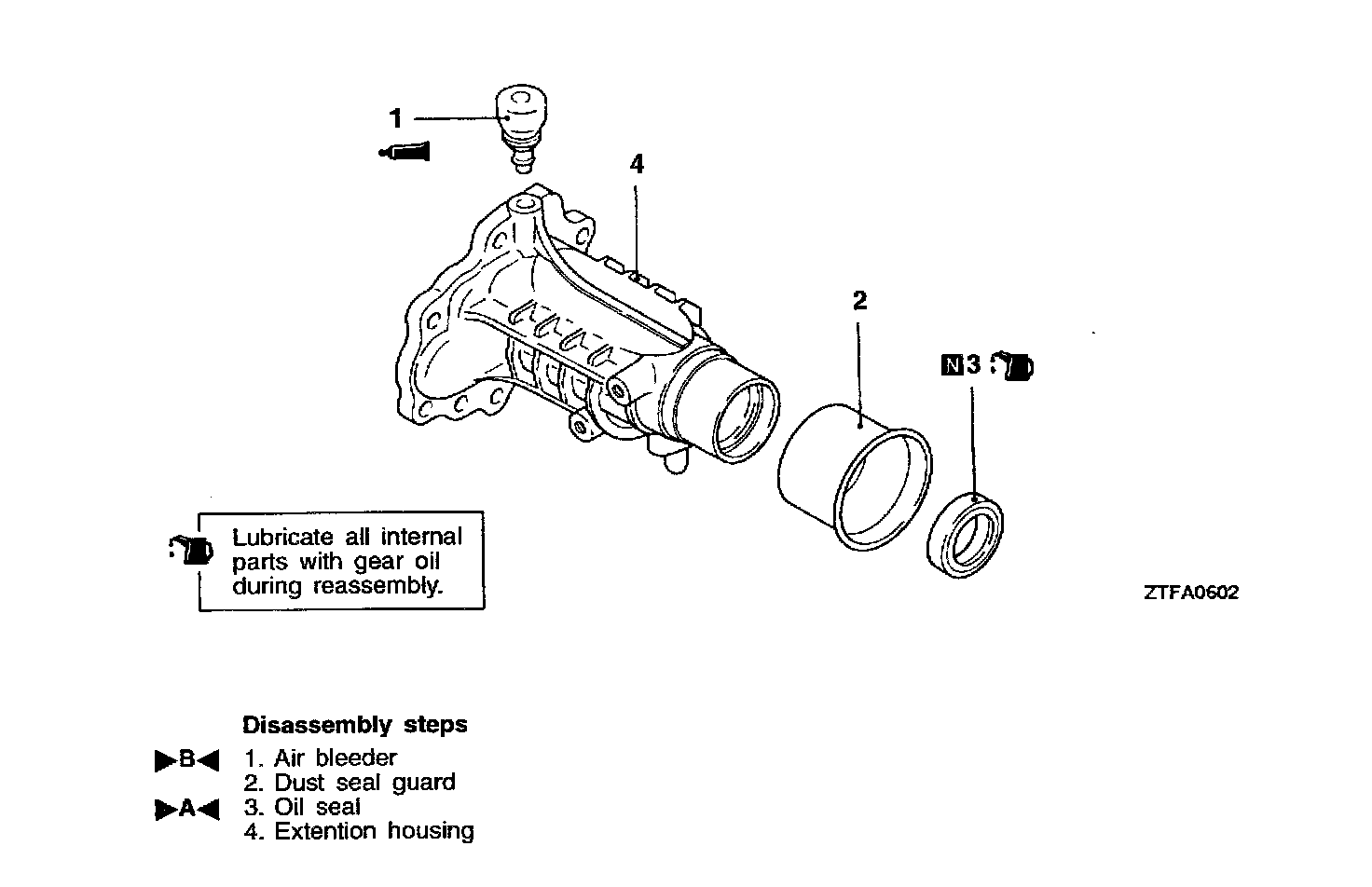

DISASSEMBLY AND REASSEMBLY
REASSEMBLY SERVICE POINTS

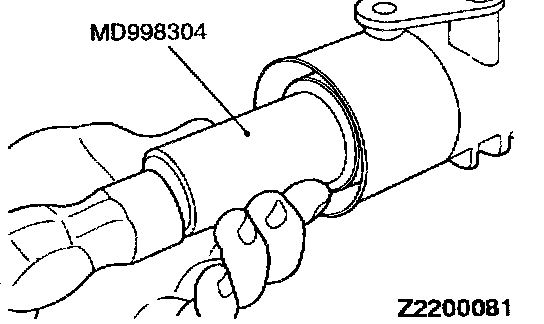

>A< OIL SEAL INSTALLATION

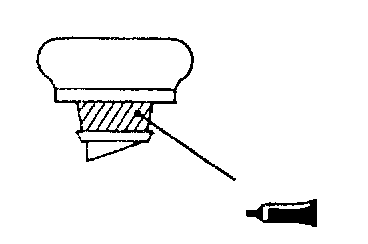

>B< AIR BLEEDER INSTALLATION





Install the air bleeder applying sealant to the inserting portion.
Specified sealant: 3M SUPER WEATHERSTRIP No. 8001 or equivalent
