Extension Housing






DISASSEMBLY AND REASSEMBLY
REASSEMBLY SERVICE POINTS

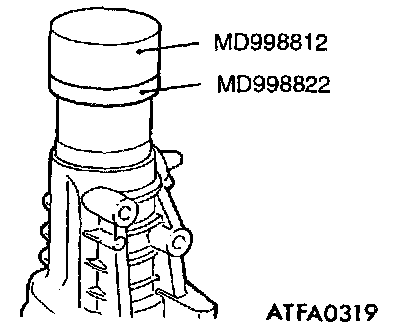

>A< OIL SEAL INSTALLATION

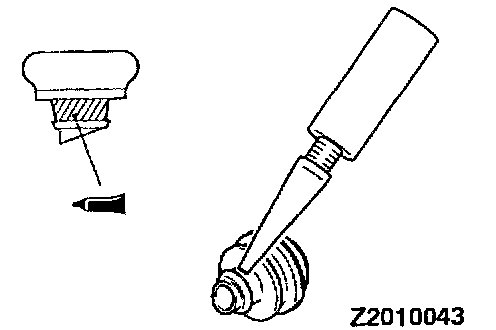

>B< AIR BLEEDER INSTALLATION





1. Apply sealant to the outer diameter of the air bleeder and install the air bleeder.
Specified sealant: 3M SUPER WEATHERSTRIP No. 8001 or equivalent
