Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Tools and Equipment >> Manual Transaxle Overhaul

Manual Transaxle Overhaul

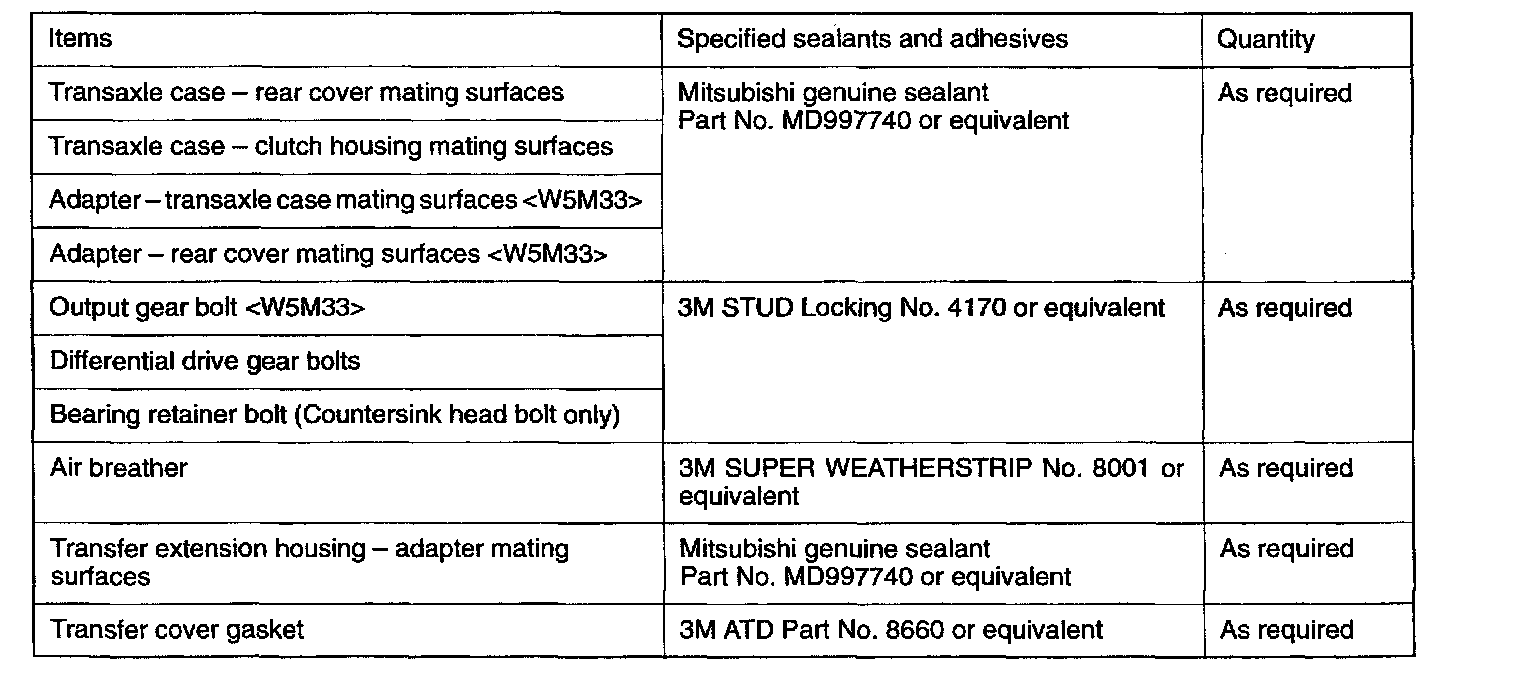

SEALANTS AND ADHESIVES

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

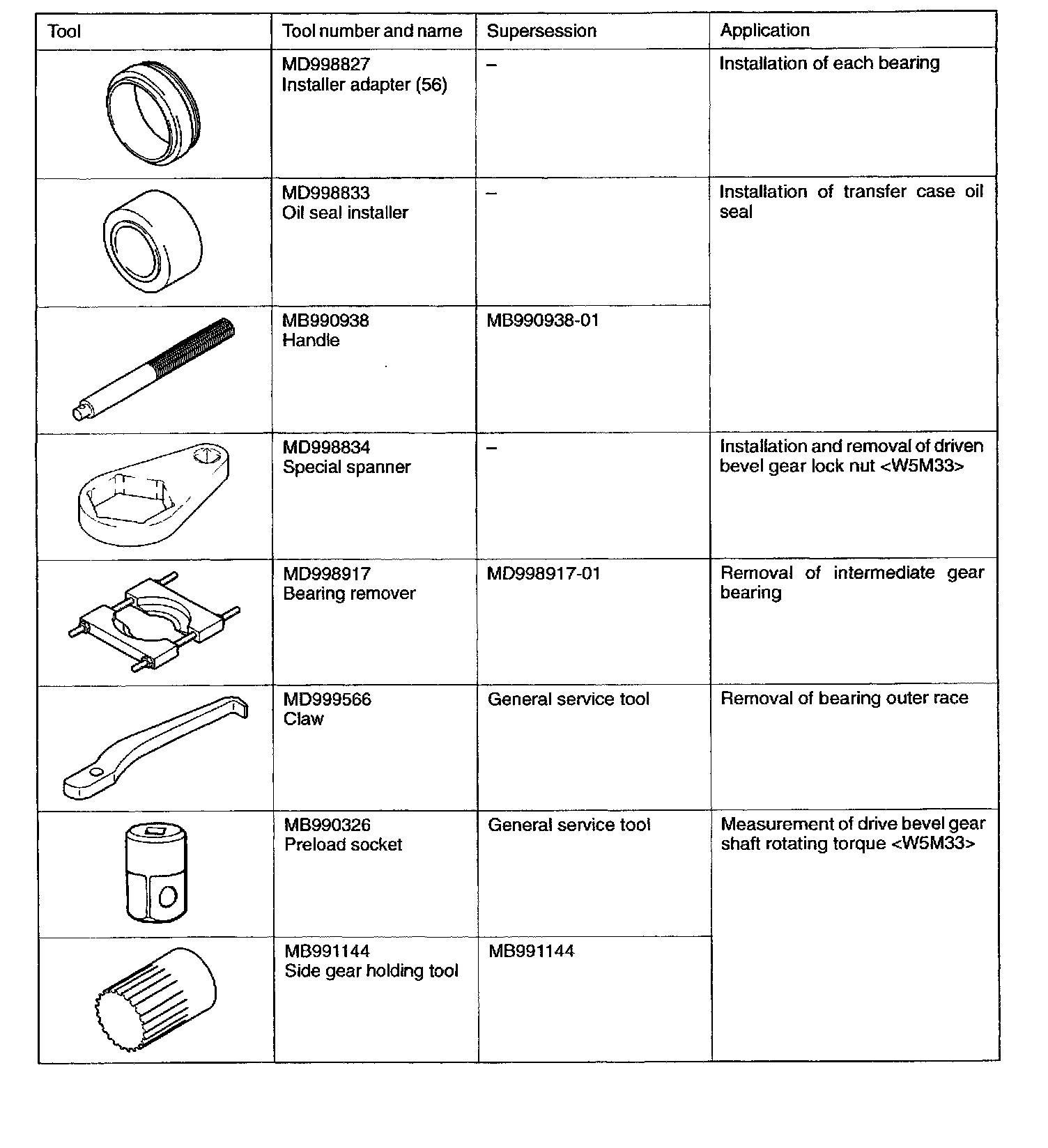

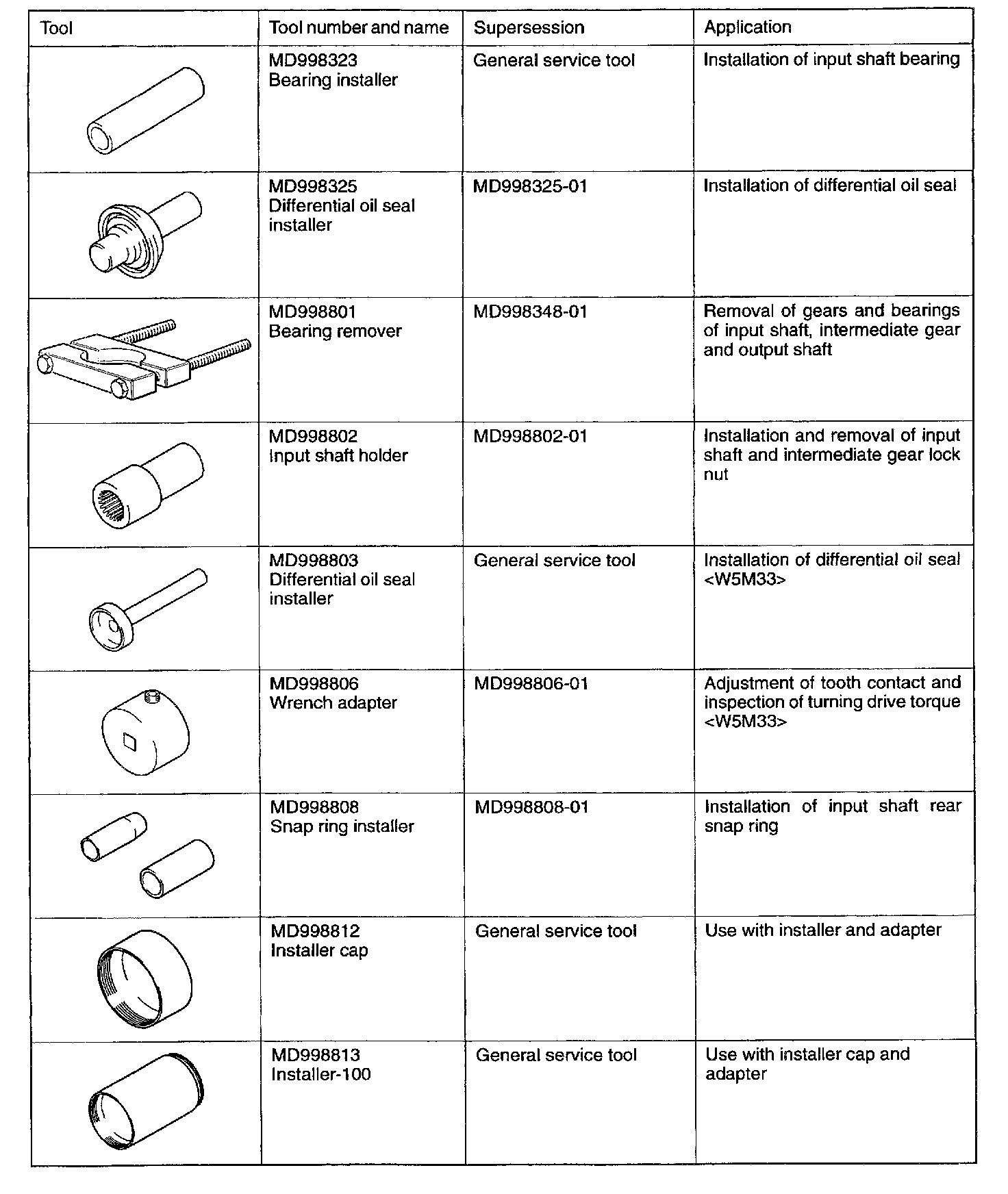

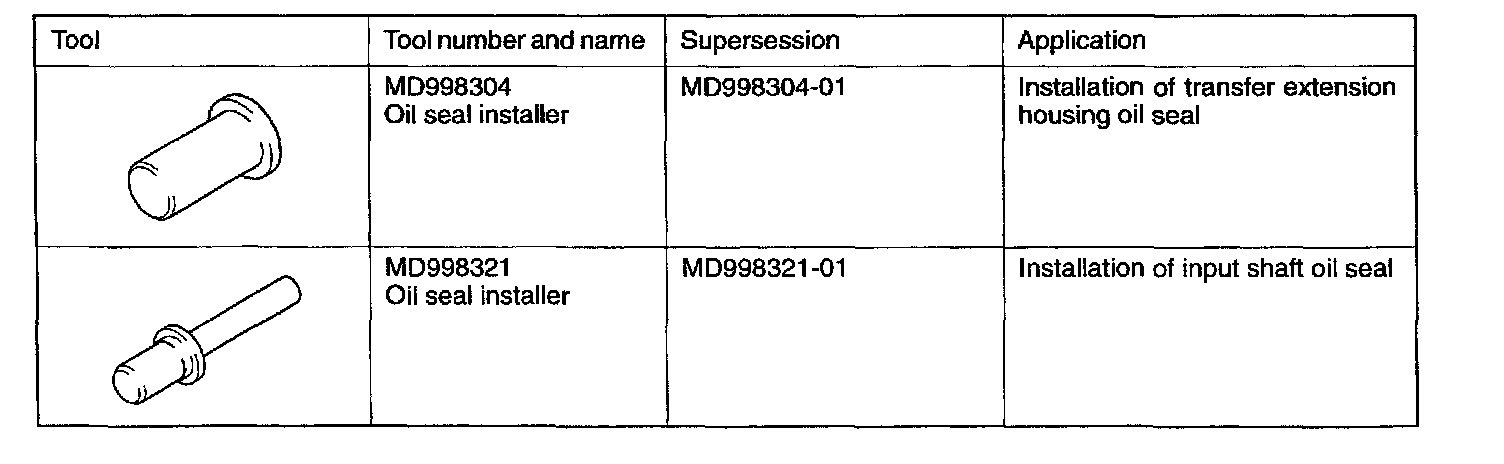

SPECIAL TOOLS
