Output Shaft
DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT

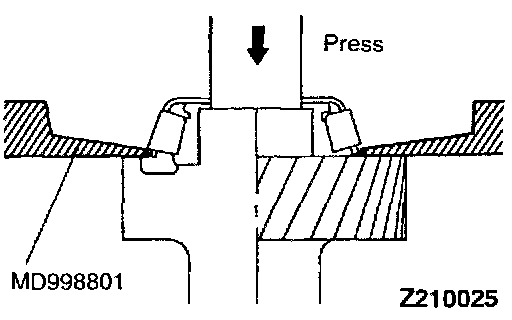

TAPER ROLLER BEARINGS REMOVAL
CAUTION:
- Do not reuse the bearings removed from the shaft.
- Replace the inner and outer races of the taper roller bearing as a set.
REASSEMBLY SERVICE POINT

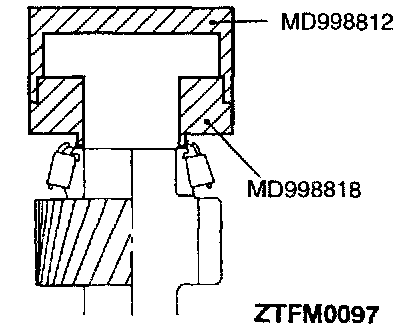

>A< TAPER ROLLER BEARINGS INSTALLATION
CAUTION: When installing the bearing, push the inner race only.
