Front Output Shaft






DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
TAPER ROLLER BEARINGS REMOVAL

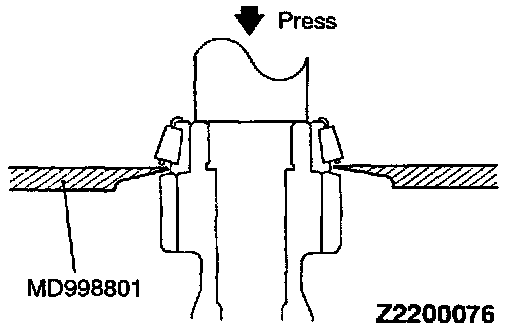

Remove the taper roller bearings using the special tool.

NOTE:
1. Do not reuse the bearing removed from the shaft.
2. Replace the inner and outer races of the taper roller bearing as a set.

REASSEMBLY SERVICE POINTS
>A< TAPER ROLLER BEARINGS INSTALLATION

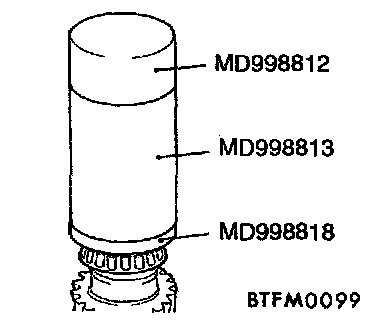

Install the taper roller bearing using the special tool.

NOTE: Apply the special tool to the inner race only when installing the bearing.

>B< TAPER ROLLER BEARINGS INSTALLATION

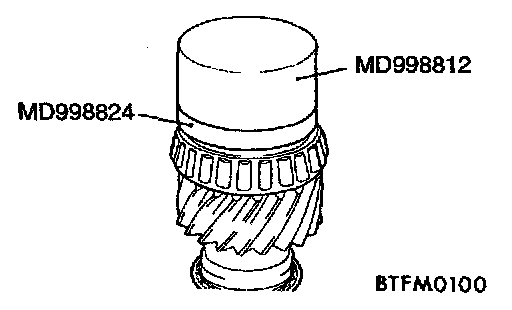

Install the taper roller bearing using the special tool.

NOTE: Apply the special tool to the inner race only when installing the bearing.
