Clutch Housing Disassembly and Reassembly
DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINTS

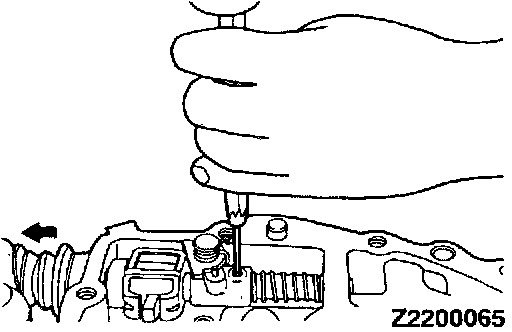

LOCK PIN REMOVAL
CAUTION: When removing the lock pin, turn the control lever to such position that the lock pin will not contact the clutch housing.

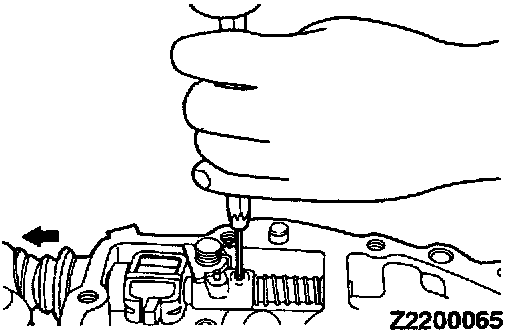

SPRING PIN REMOVAL
CAUTION: When removing the spring pin, pull the control shaft in the direction illustrated so that the spring pin will not contact the clutch housing.
REASSEMBLY SERVICE POINTS

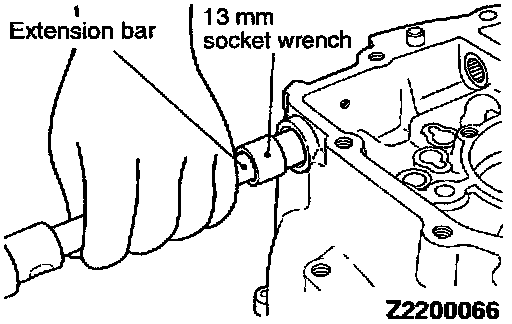

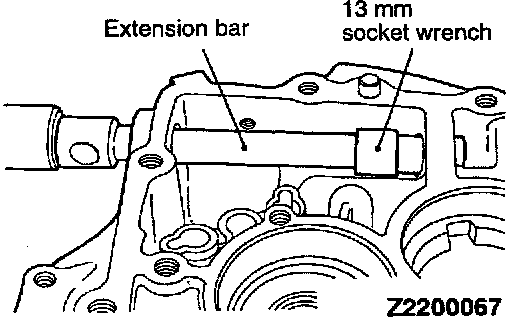

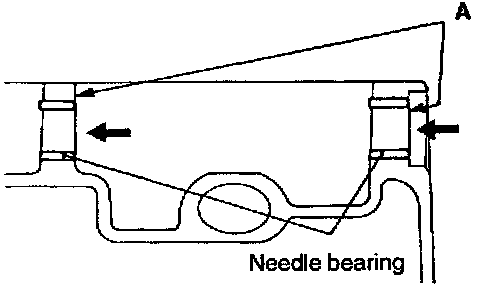

>A< NEEDLE BEARING INSTALLATION

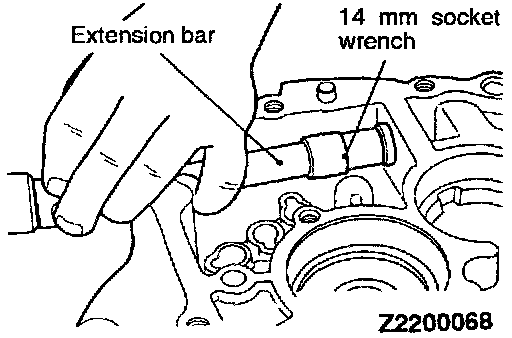

1. Install the needle bearing flush with the surface A of the clutch housing using a socket wrench.
2. Install with the part type stamped side facing the surface A.

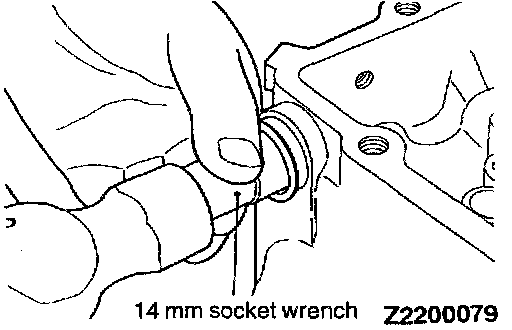

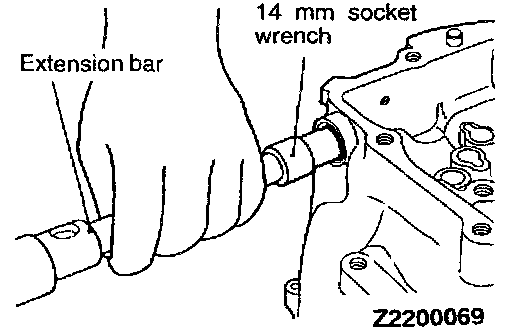

>B< OIL SEAL INSTALLATION

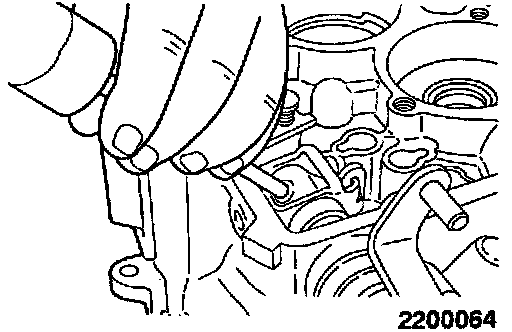

>C< SPRING PIN/LOCK PIN INSTALLATION
CAUTION:
- Do not reuse the spring pin and lock pin.
- Install the spring pin in such a way its slit will be at right angle to the control shaft center.
