Snap Rings, Spacers and Thrust Plate For Adjustment
SNAP RINGS AND SPACERS FOR ADJUSTMENT

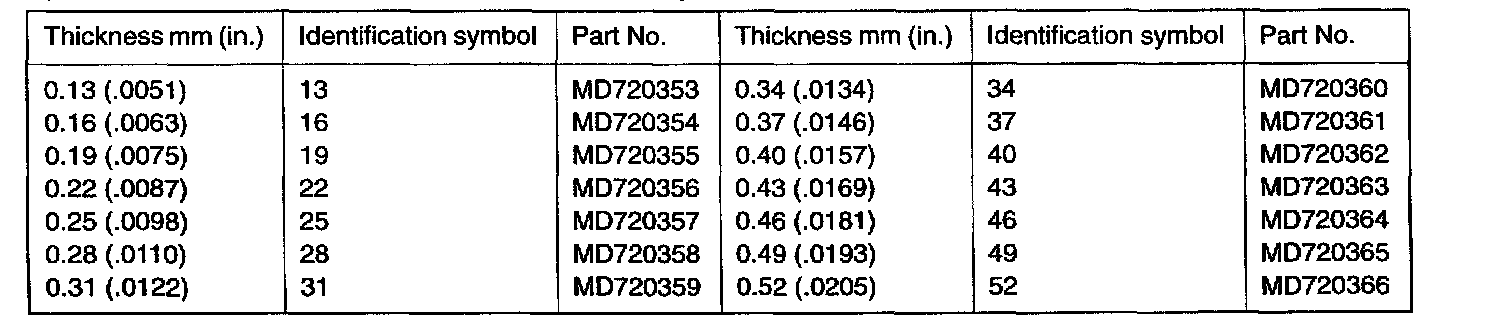

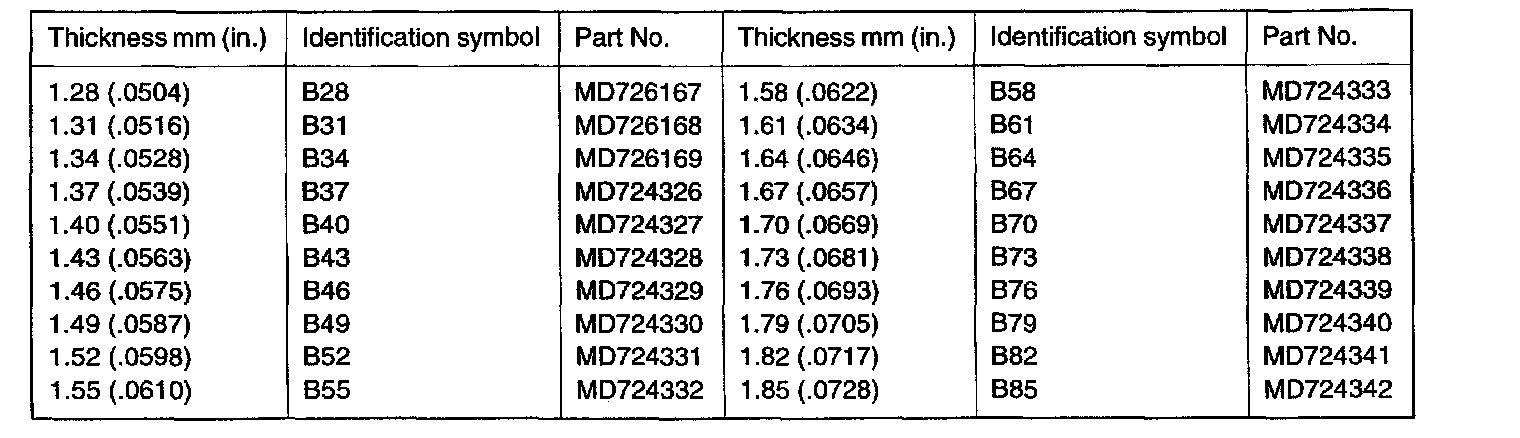

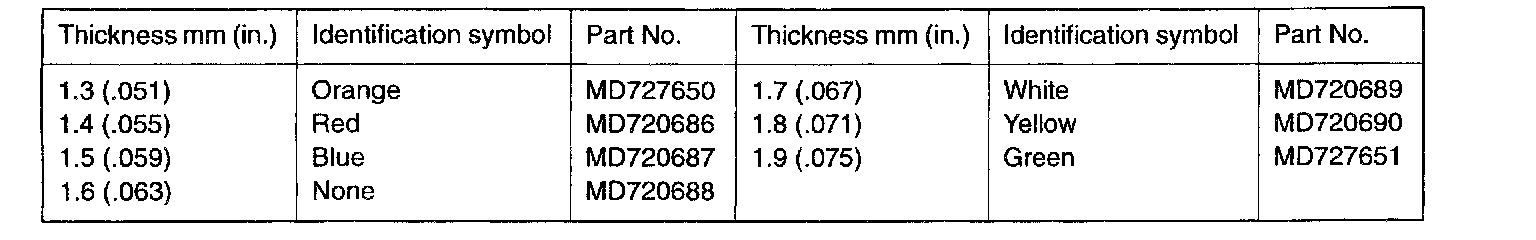

Snap ring (For adjustment of input shaft front bearing end play)

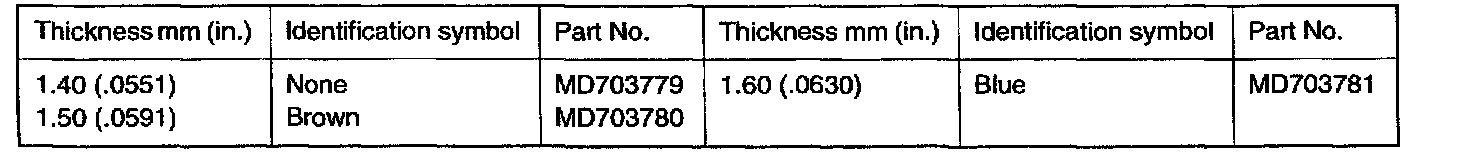

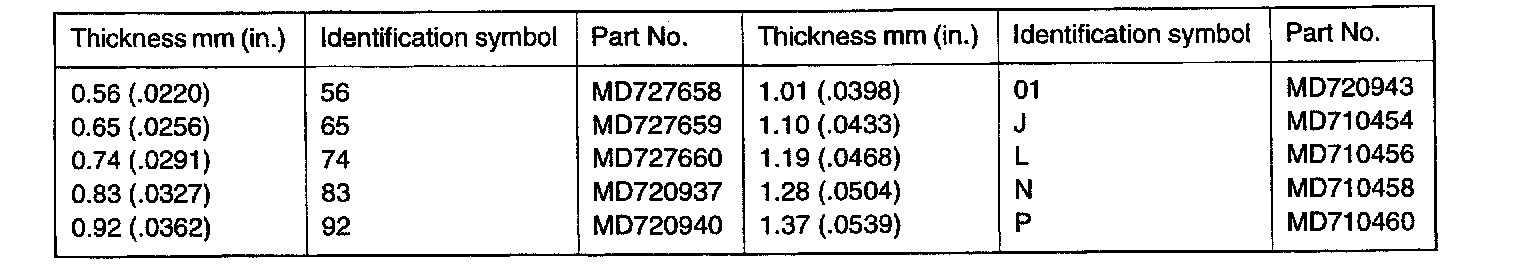

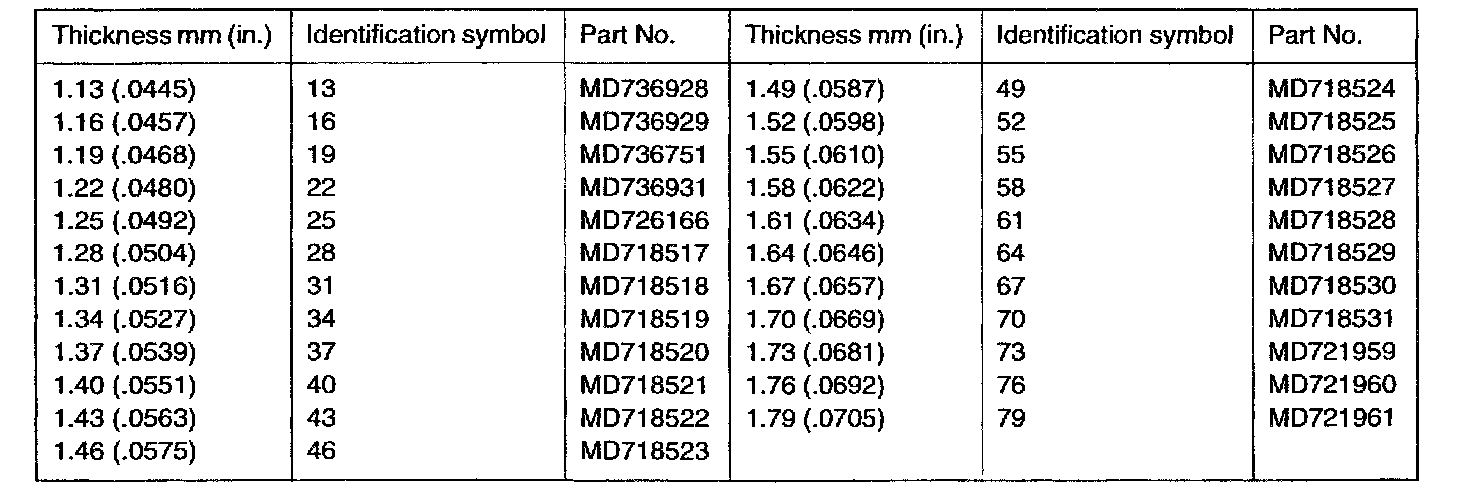

Snap Ring (For adjustment of input shaft rear bearing end play)

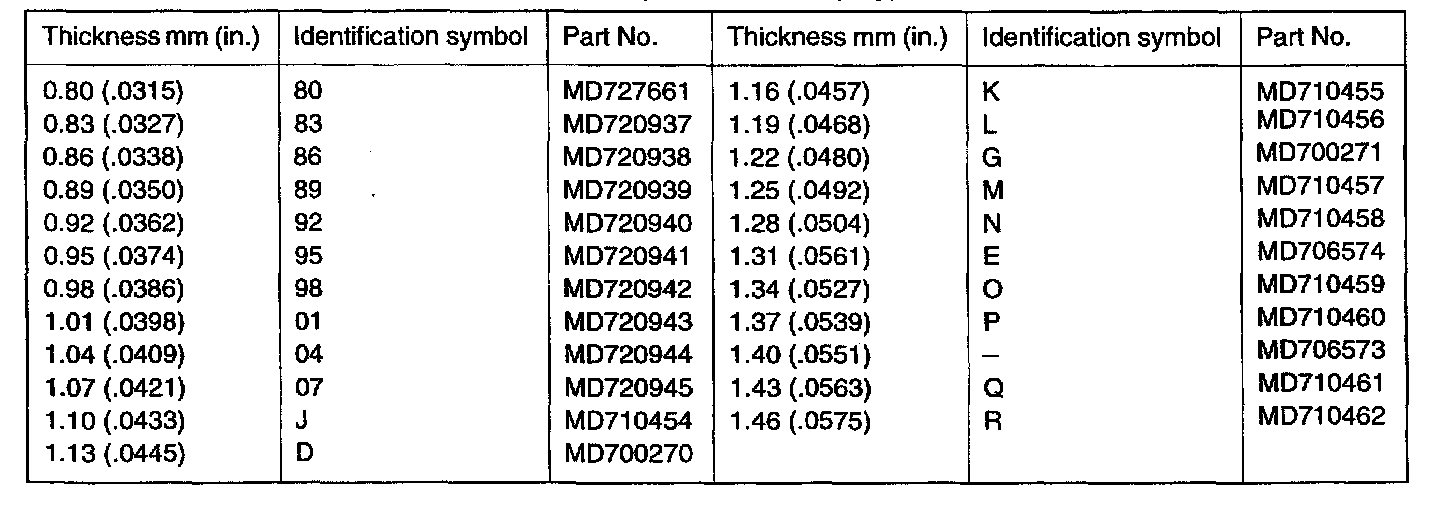

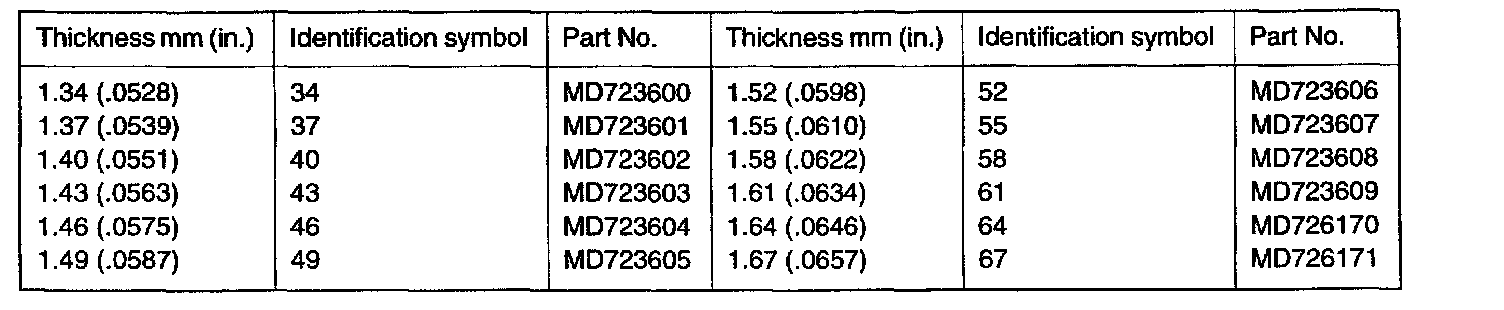

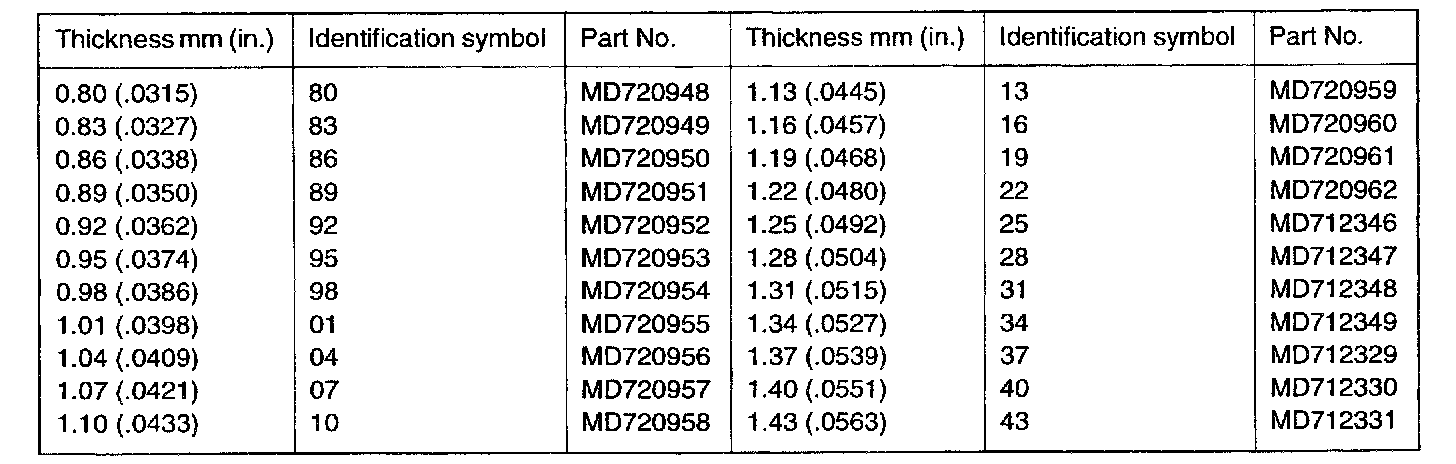

Spacer: F5M33, W5M33 (For adjustment of input shaft end play)

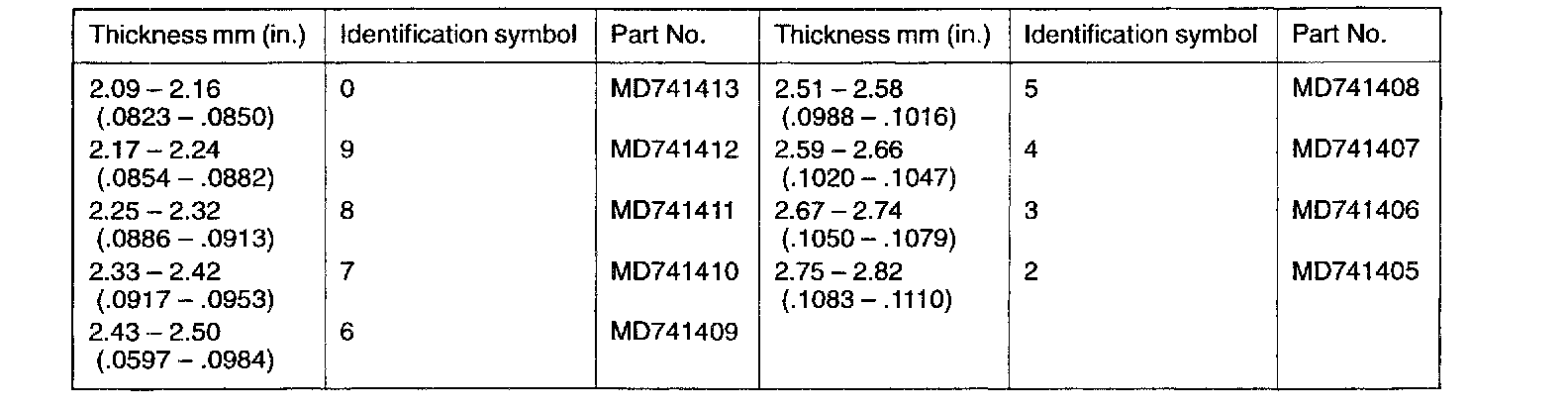

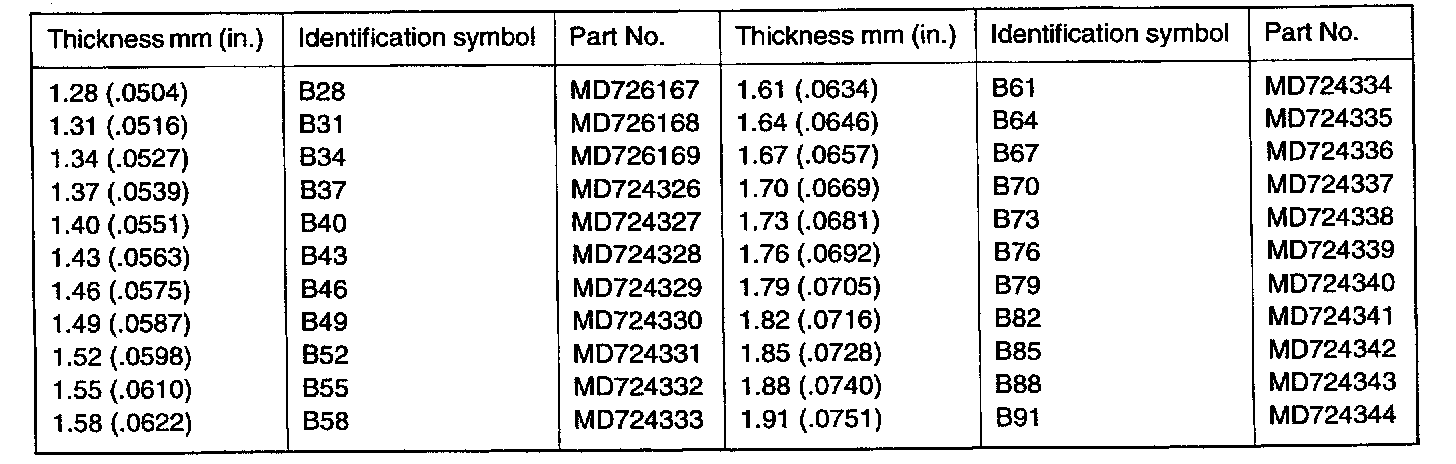

Snap ring: F5M33 (For adjustment of intermediate rear front bearing end play)
Snap ring: F5M31 (For adjustment of intermediate gear front bearing end play)

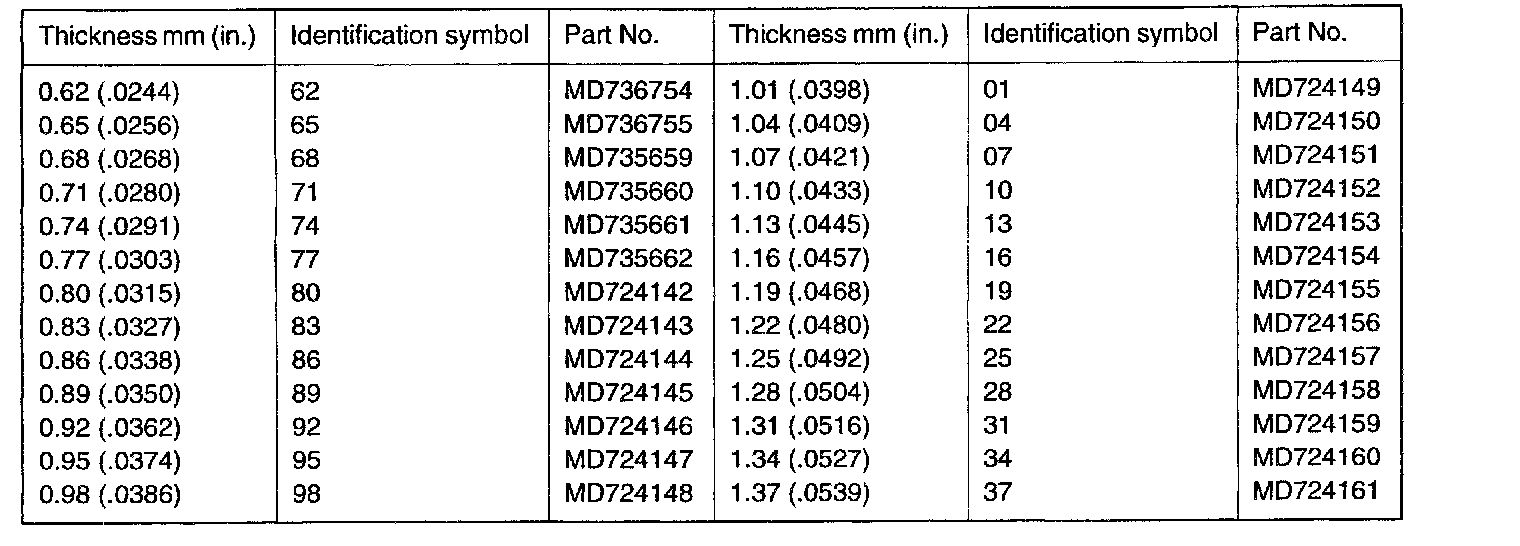

Spacer: F5M31, F5M33 (For adjustment of intermediate gear end play)

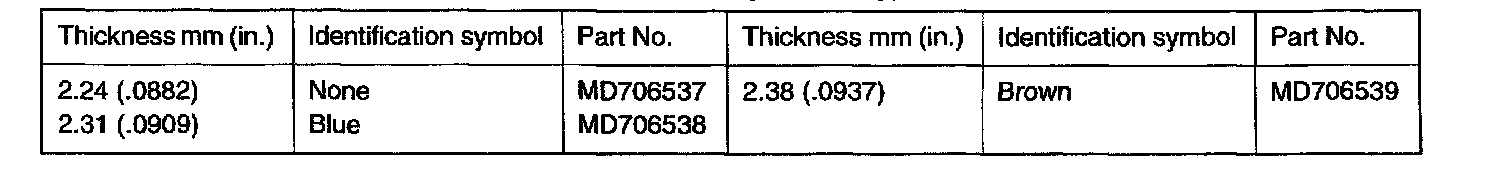

Spacer: W5M33 (For adjustment of intermediate gear preload)

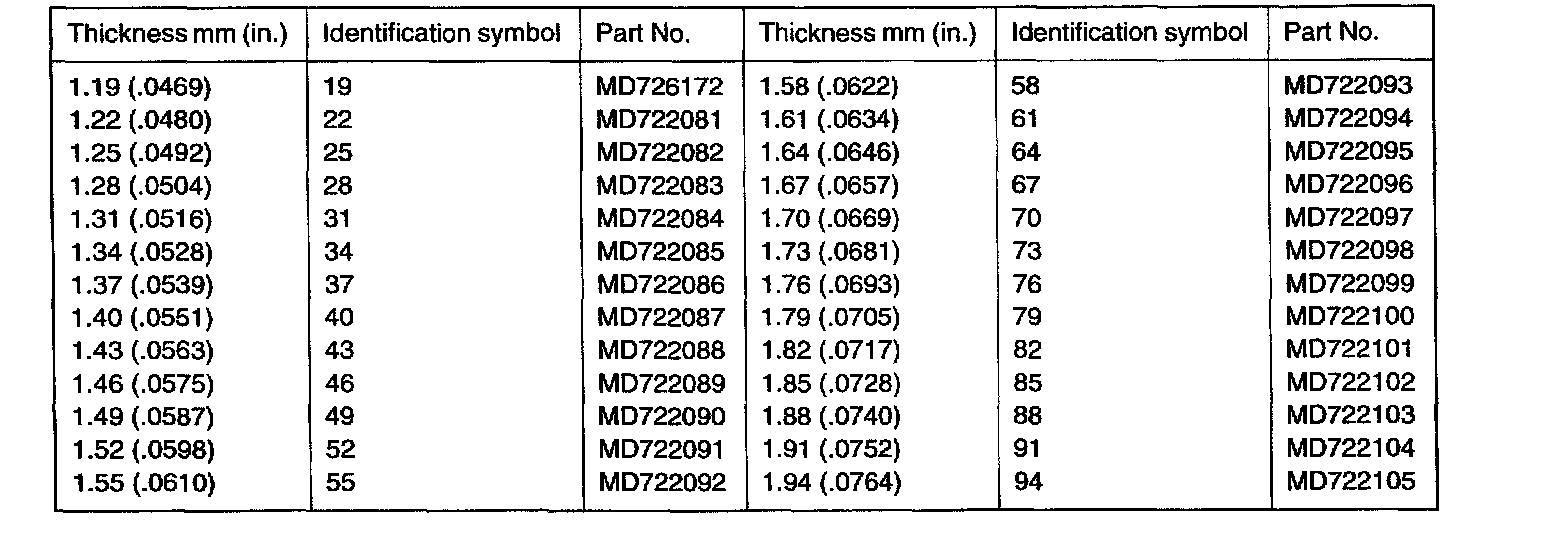

Spacer: F5M31, F5M33 (For adjustment of output shaft end play)

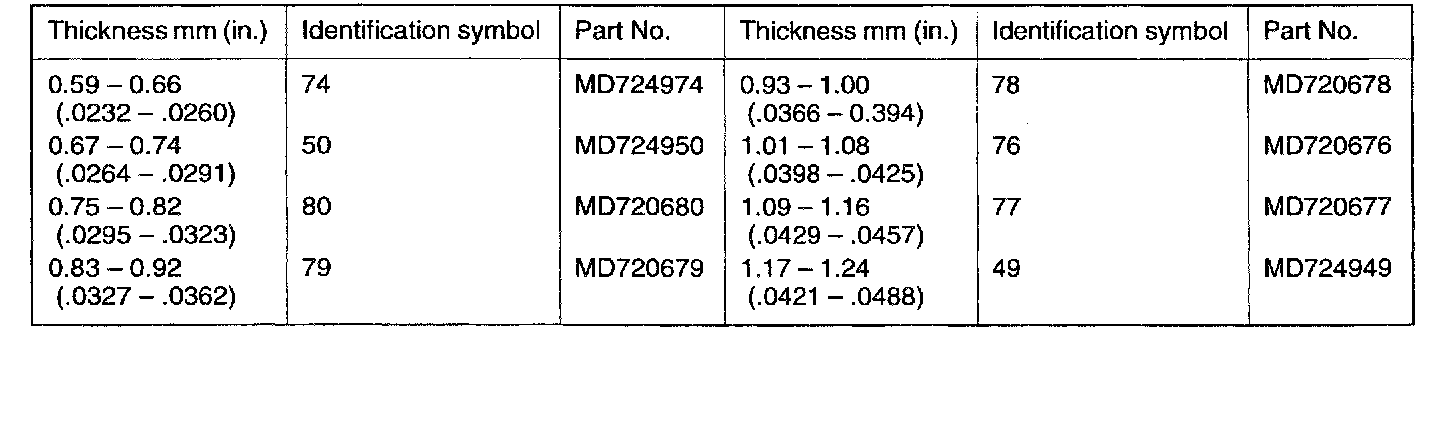

Spacer: W5M33 (For adjustment of front differential case end play)
Spacer: F5M31, F5M33 (For adjustment of front differential case end play)
Spacer (For adjustment of front differential pinion backlash)
Spacer: W5M33 (For adjustment of front output shaft preload)
Snap ring: W5M33 [For adjustment of viscous coupling end play (with VCU)]
Spacer: W5M33 (For adjustment of center differential pinion backlash front side)
Spacer: W5M33 (For adjustment of center differential case preload)
Spacer: W5M33 (For adjustment of center differential pinion backlash, rear side)
Spacer: W5M33 (For adjustment of drive bevel gear mount)
Spacer: W5M33 (For adjustment of drive bevel gear preload)
Spacer: W5M33 (For adjustment of drive bevel gear mount)
Spacer: W5M33 (For adjustment of driven bevel gear preload)
