Rear

WHEEL BEARING END PLAY CHECK





1. Jack up the vehicle and remove the rear wheel.
2. Release the parking brake.
3. Remove the caliper assembly and the brake disc or brake drum.

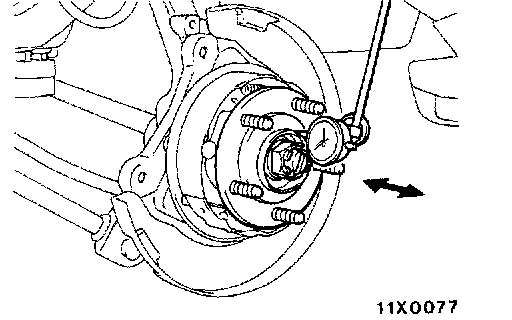

4. Set a dial gauge as shown in the illustration, and then move the hub in the axial direction and measure the play.

Limit value: 0.05 mm (0.002 inch)

5. If the play exceeds the limit value, replace the rear hub assembly.
