Front

WHEEL BEARING END PLAY CHECK





1. Remove the disc brake caliper and suspend it with a wire.
2. Remove the brake disc from the front hub.

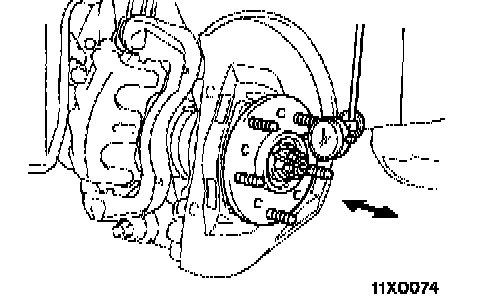

3. Attach a dial gauge as shown in the illustration, and then measure the end play while moving the hub in the axial direction.

Limit: 0.05 mm (0.002 inch)

4. If end play exceeds the limit, replace the front hub assembly.
