Limited Slip Differential

LIMITED SLIP DIFFERENTIAL CONDITION CHECK (VCU TYPE)
1. Place the shift lever in the neutral position and block the front wheels with chocks.
2. Release the parking brake lever fully.
3. Jack up the rear wheels and apply rigid racks to the specified positions of the side sills.
4. Disconnect the propeller shaft from the differential.

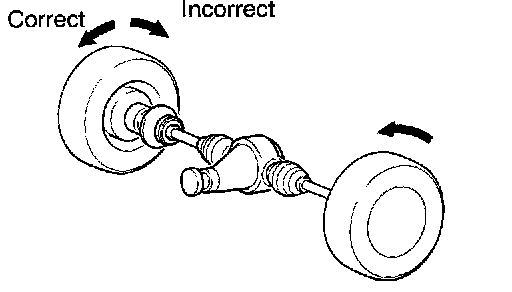

5. While turning one wheel slowly and make sure that the opposite wheel turns in the same direction.
6. If the opposite wheel turns in reverse, disassemble the limited slip differential with VCU and replace the VCU.
