Mechanical Specifications

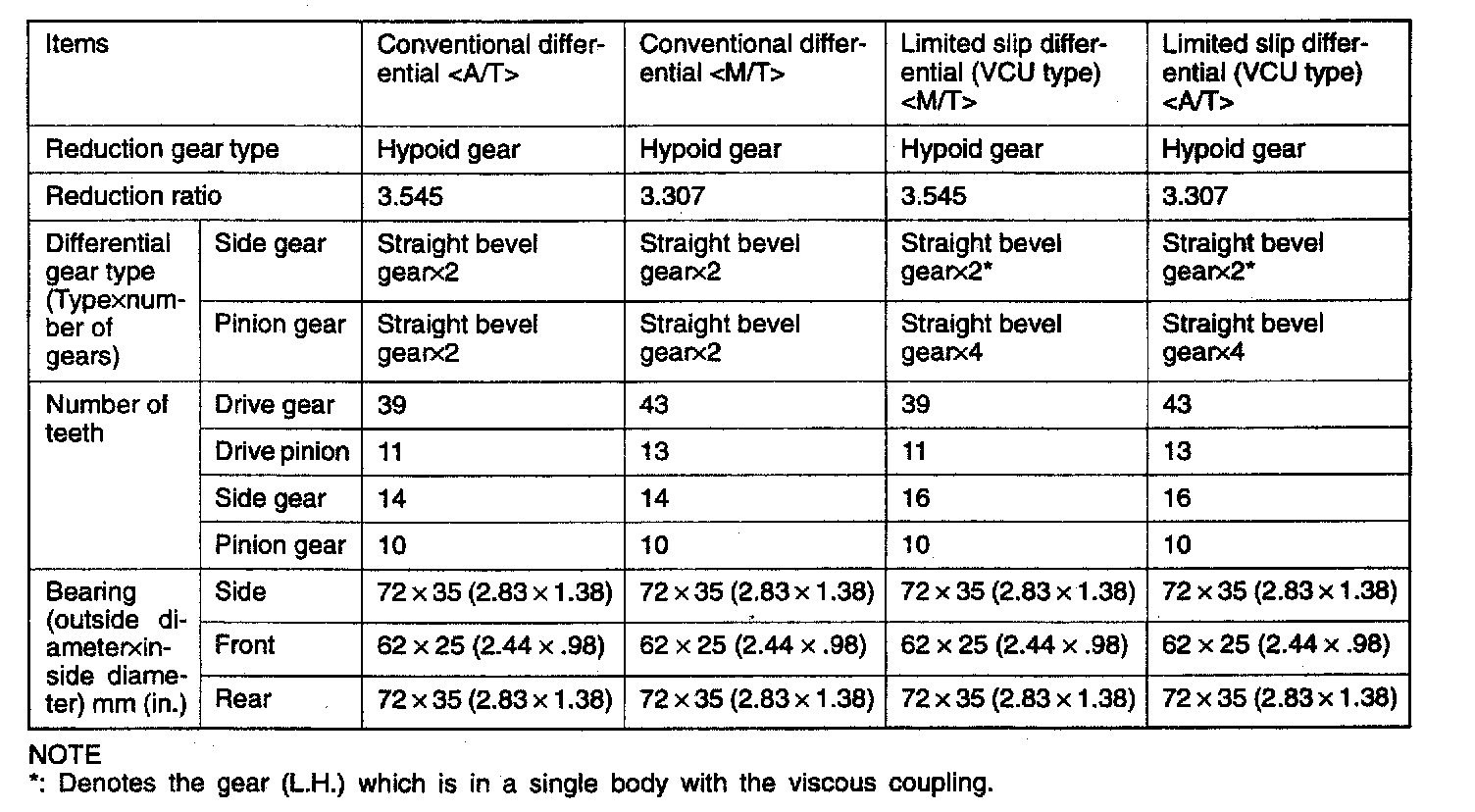

Rear Axle (AWD), Differential Dimensions:

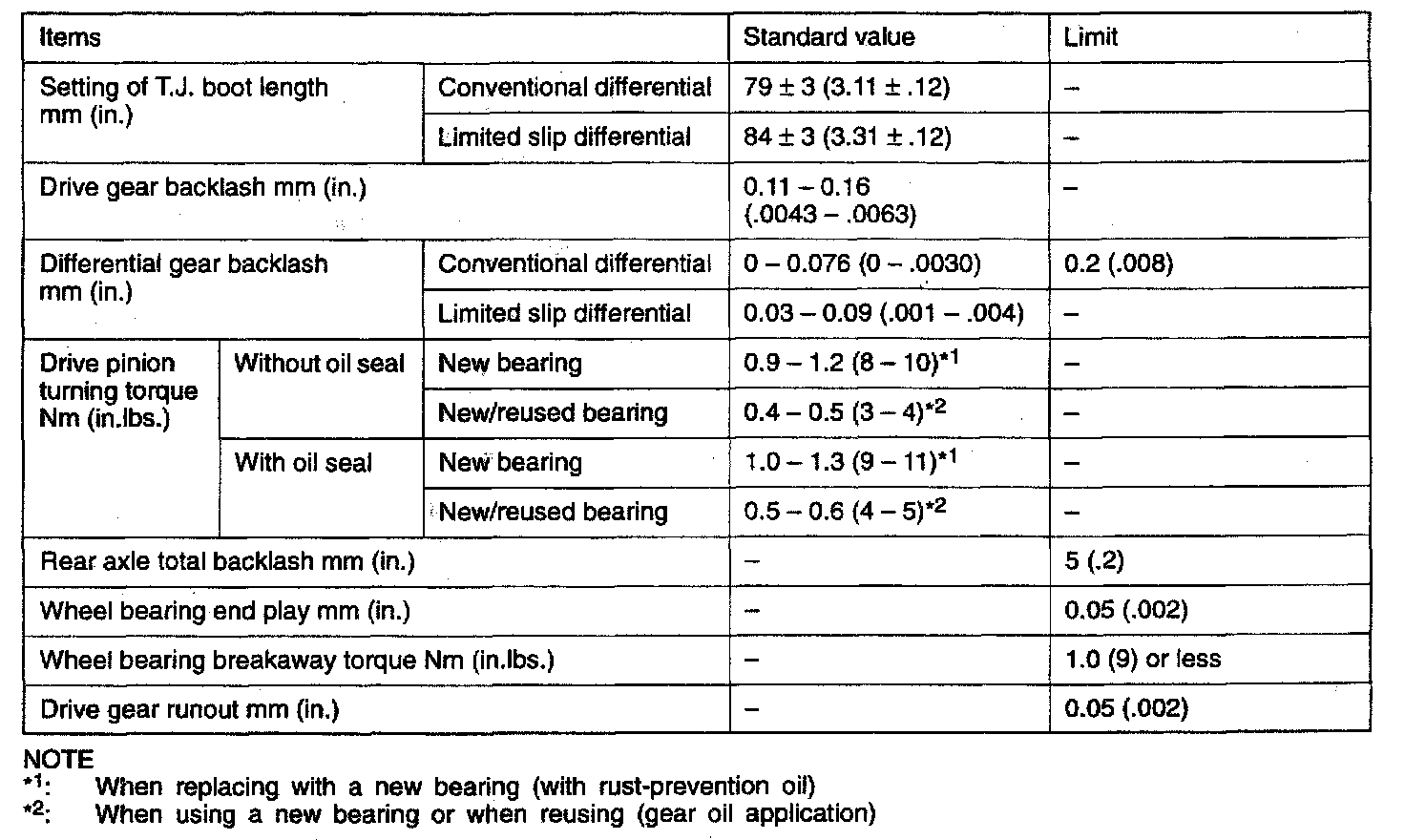

Rear Axle (AWD), Differential Standards & Limits:
