Seals and Gaskets: Service and Repair

DIFFERENTIAL CARRIER OIL SEAL REPLACEMENT





1. Remove the drive shaft.
2. Remove the oil seal of the differential carrier.

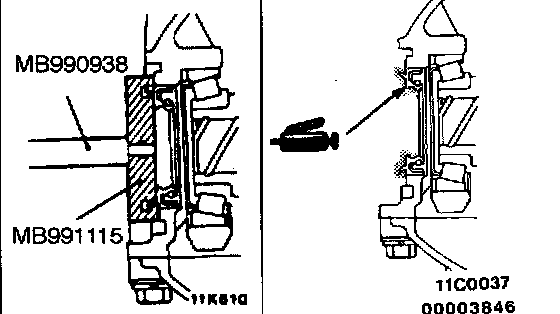

3. Use the special tool to tap on a new oil seal as far as the end of the differential carrier.
4. Apply multipurpose grease to the lip section of the oil seal and to the oil seal contact surface of the drive shaft.
5. Replace the circlip on the drive shaft with a new one, and then install the drive shaft onto the differential carrier.
6. Check the wheel alignment.
