Removal and Replacement

Part 1 Of 2:

Part 2 Of 2:

REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
CLUTCH HOSE REMOVAL

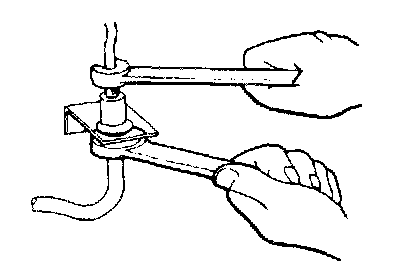

Holding the nut at the clutch hose side, loosen the flare nut on the clutch pipe.

INSTALLATION SERVICE POINT
>A< CLUTCH HOSE/CLUTCH PIPE INSTALLATION

1. Temporarily tighten the clutch pipe flare nut by hand, and then tighten it to the specified torque, being careful that the clutch hose does not become twisted.
2. After tightening the clutch pipe flare nut, check to be sure there is no leakage of the clutch fluid.

INSPECTION
- Check the pedal shaft bushing for wear.
- Check the pedal arm for bend or torsion.
- Check the turnover spring for deterioration.
- Check the master cylinder or clutch hose for fluid leakage.
- Check the clutch hose or pipe for cracks or clogging.
