Transmission Mount: Service and Repair
REMOVAL AND INSTALLATION
Removal Service Point
Transaxle Mount Bracket Removal
Slightly lower the transaxle, and then remove the transaxle mount bracket.
Installation Service Point

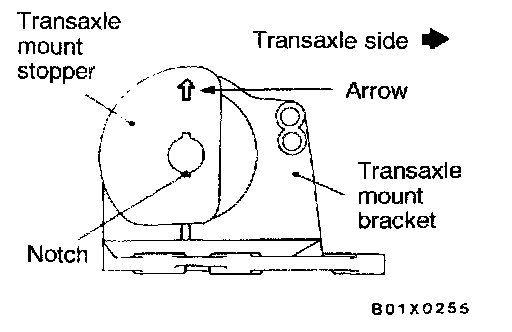

>A< Transaxle Mount Stopper Installation
Align the notches on the stopper with the transaxle mount bracket with the arrow mark facing toward the shown direction Then install the stopper.
INSPECTION
- Check each insulator for cracks or damage.
- Check each bracket for deformation or damage.
