Required For Overhaul

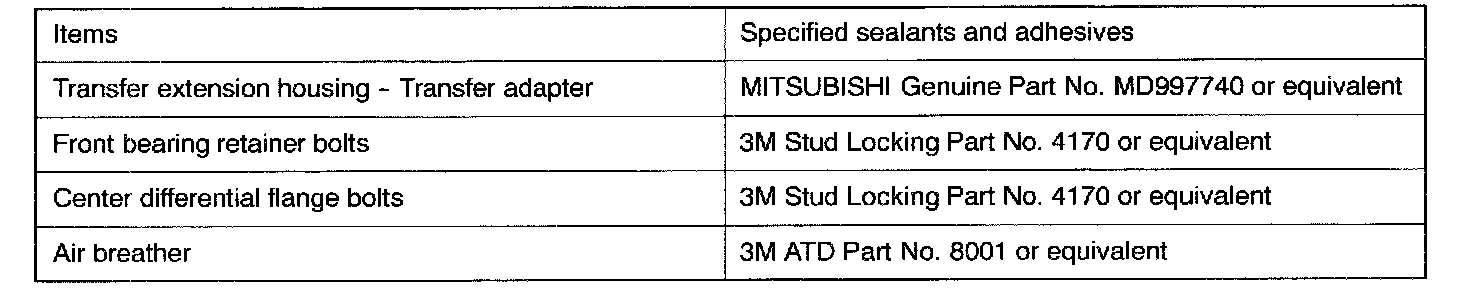

SEALANTS AND ADHESIVES





W4A33

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

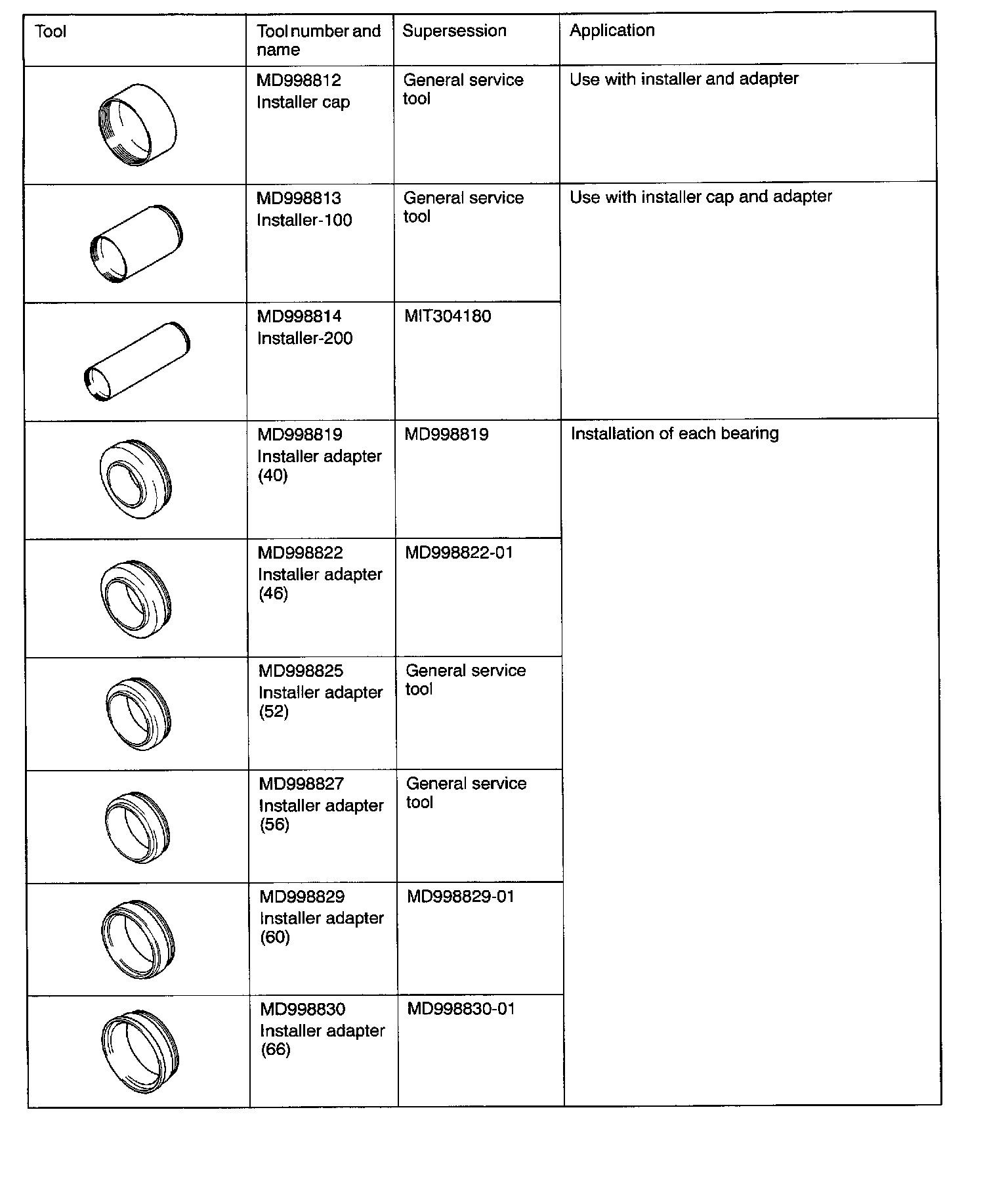

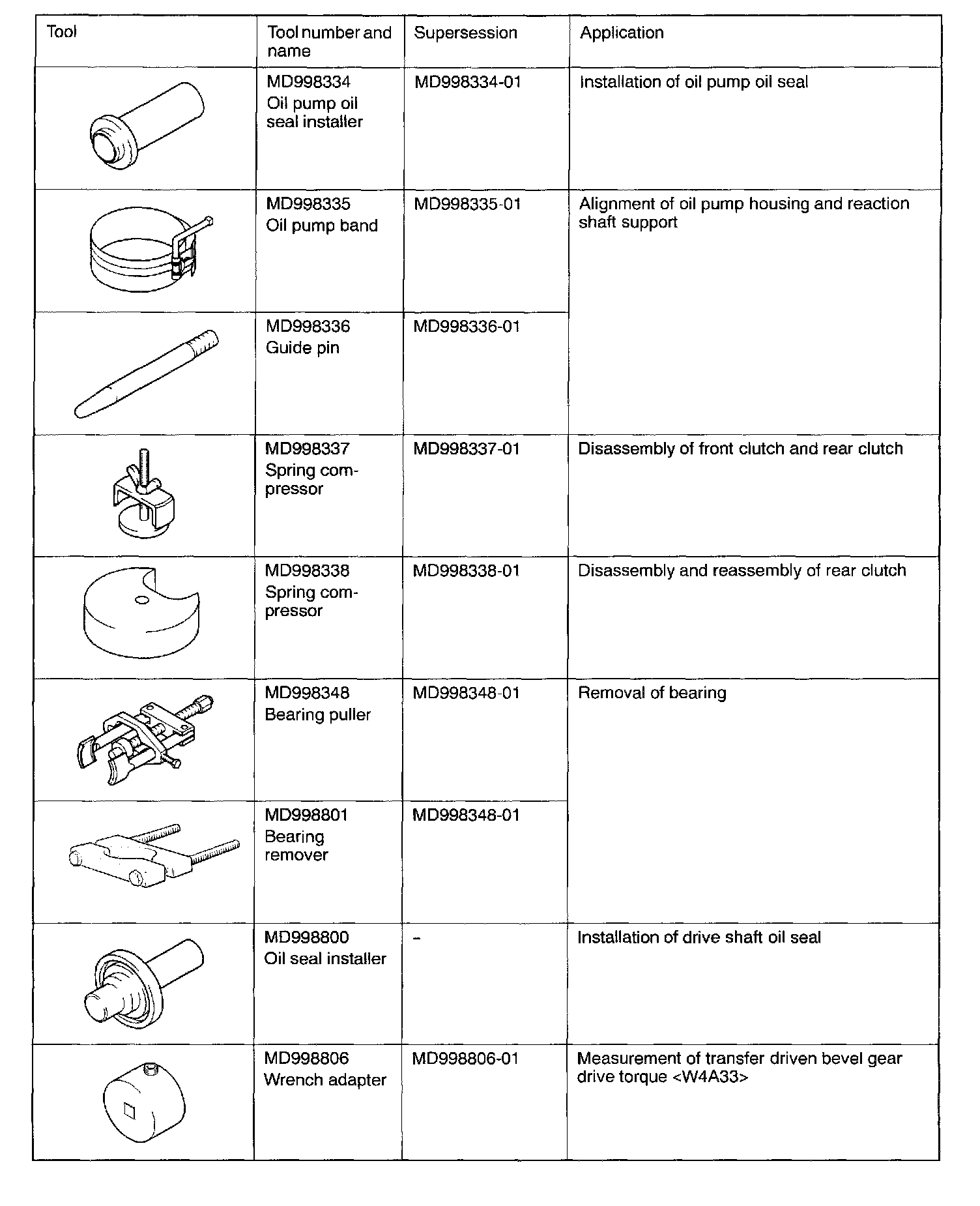

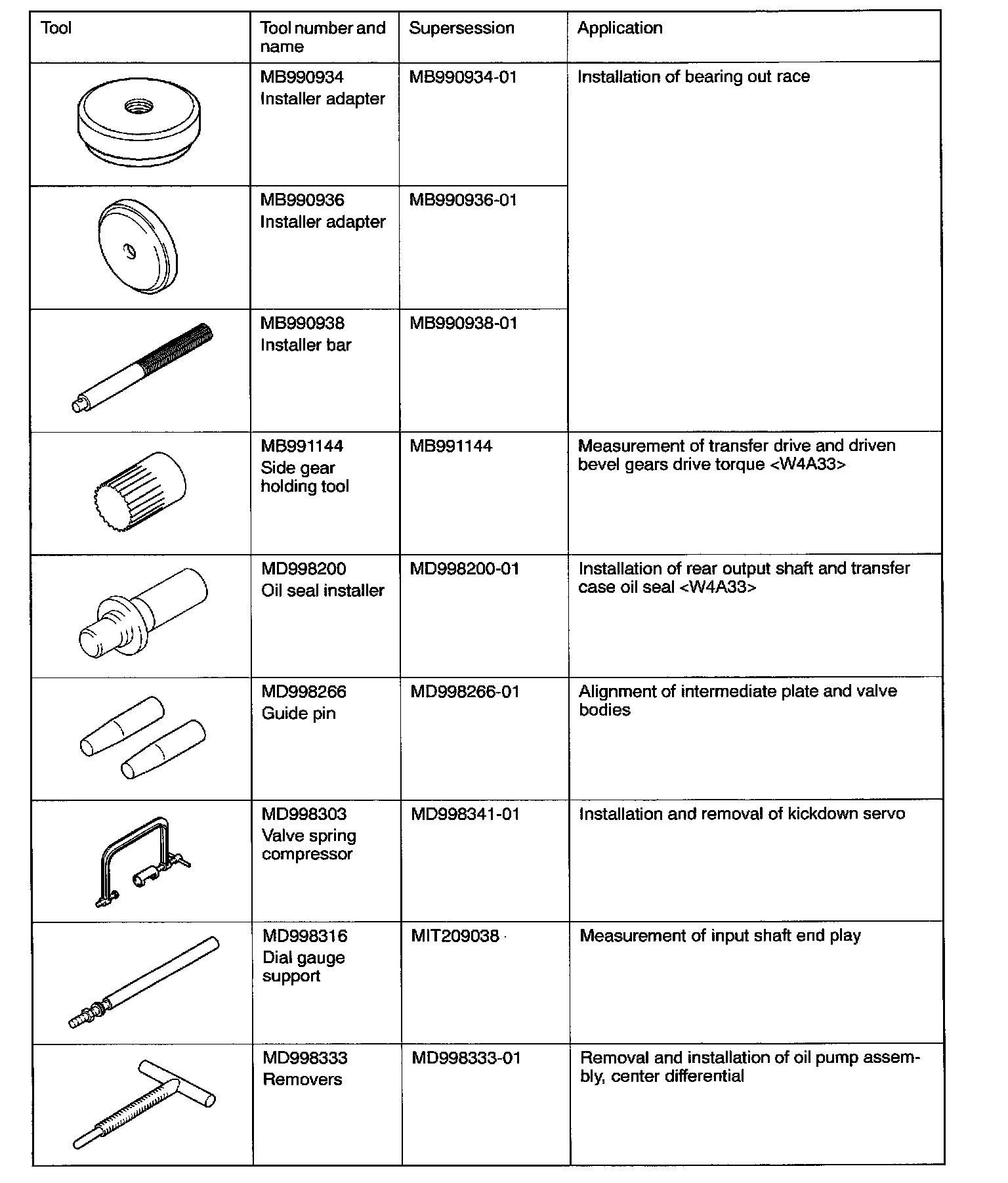

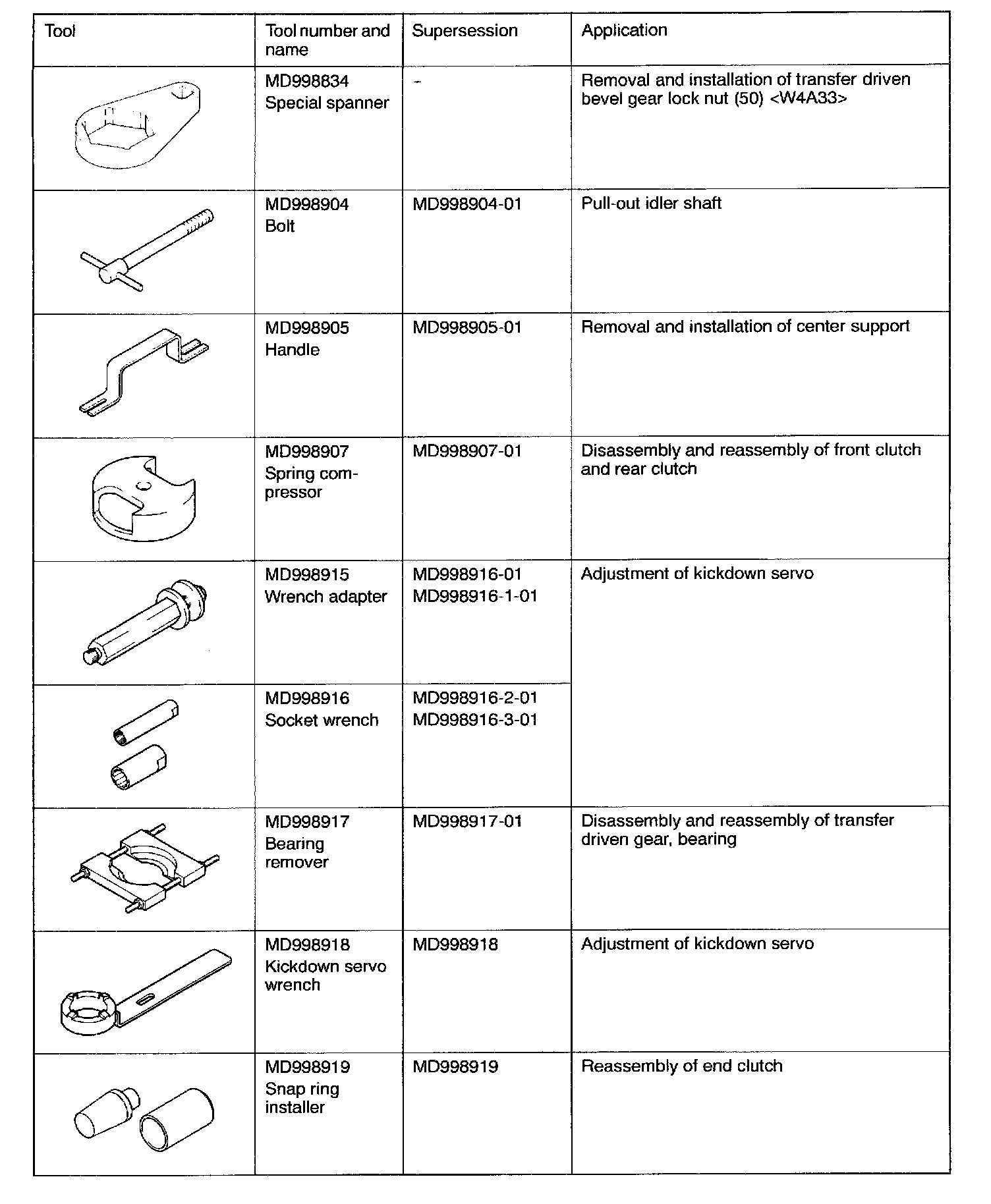

SPECIAL TOOLS
