Shift Interlock: Service and Repair

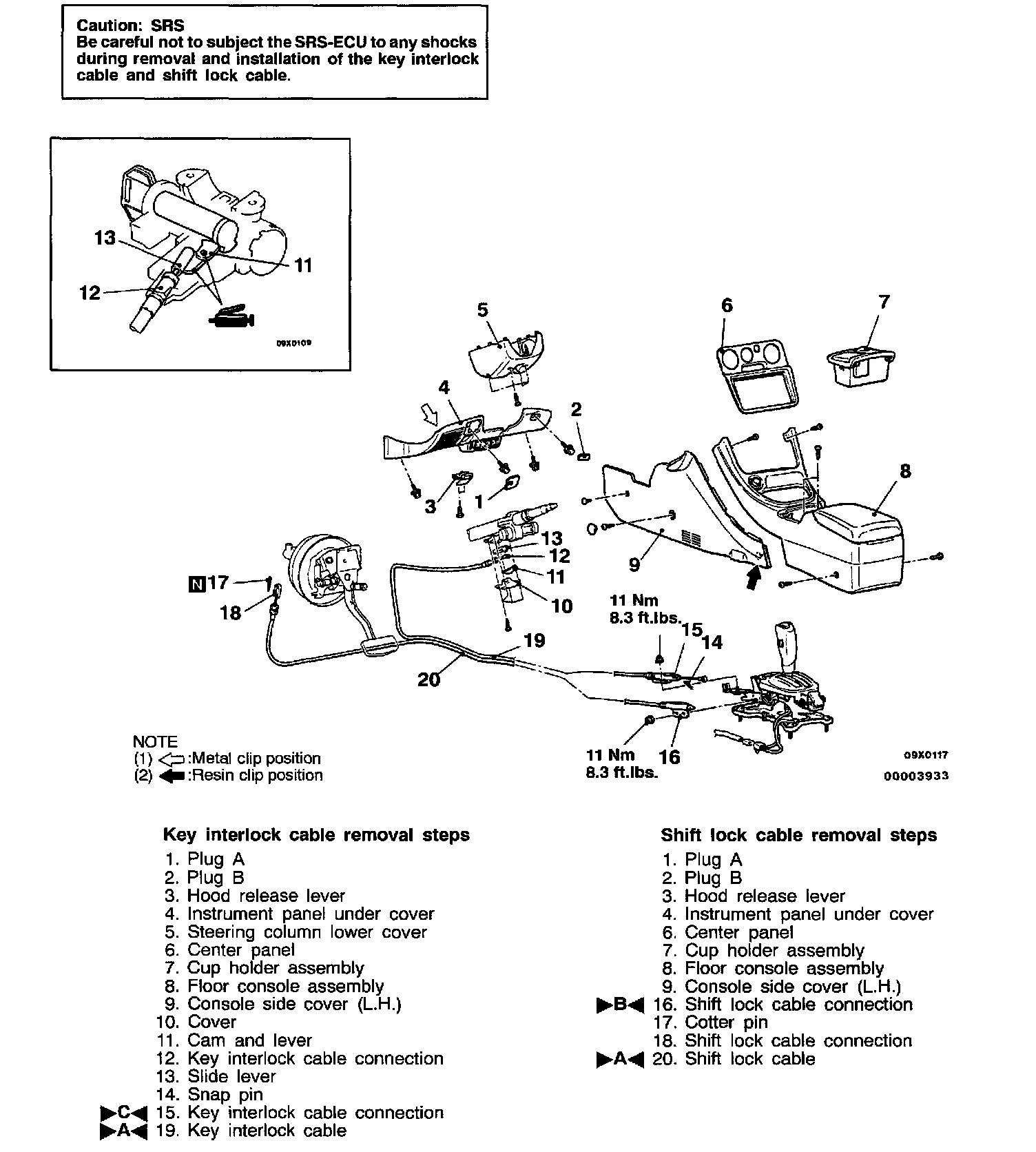

REMOVAL AND INSTALLATION

Installation Service Points
>A< Shift Lock Cable/ Key Interlock Cable Installation

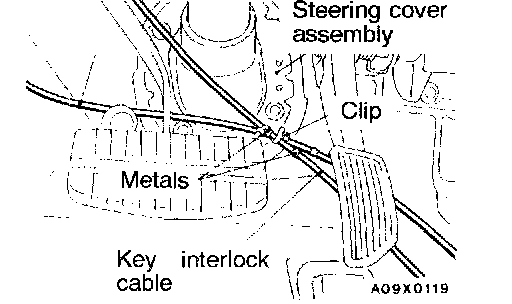

Secure the section between the metals of the shift lock cable and key interlock cable with the clip of the steering cover assembly.

CAUTION: Do not change the routing of shift lock cable to the selector lever assembly.

>B< Shift Lock Cable (Selector Lever Side) Installation





1. Place the selector lever in position "P".
2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking. OP-C4 KEY INTERLOCK

>C< Cable (Selector Lever Side) Installation

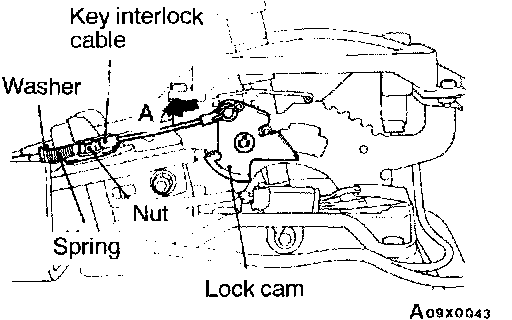

1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.

INSPECTION
Check the cable assemblies for function and for damage.
