Front Output Shaft






DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
TAPER ROLLER BEARINGS REMOVAL

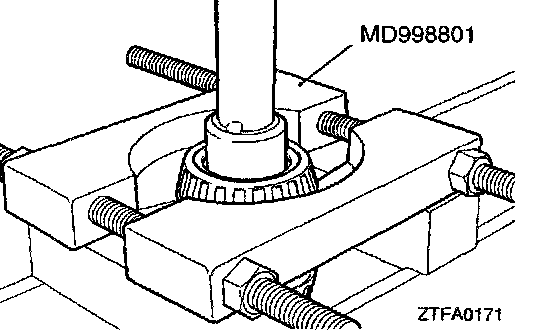

1. Using the special tool, remove the taper roller bearings on both ends of the front output shaft.

REASSEMBLY SERVICE POINT
>A< TAPER ROLLER BEARINGS INSTALLATION

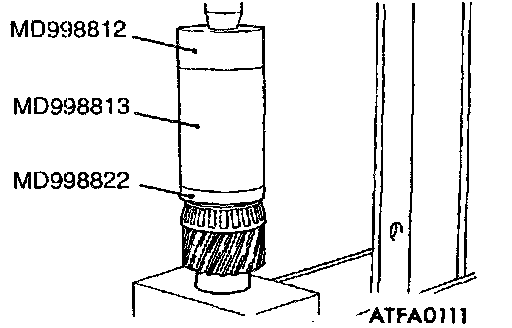

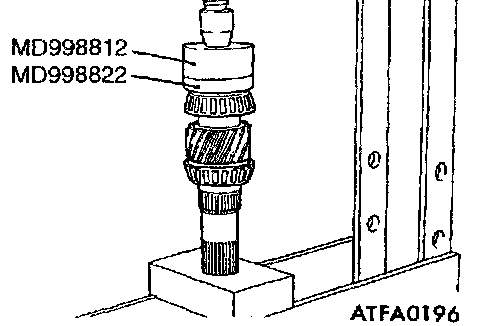

1. Using the special tool, press-fit the taper roller bearings on both ends of the front output shaft.
