End Clutch

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT

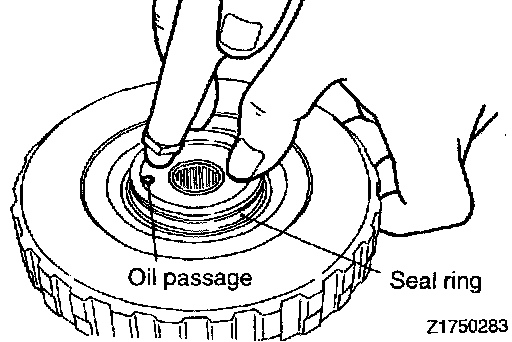

END CLUTCH PISTON REMOVAL

1. Remove the piston. If it is hard to remove, place the retainer on the workbench with piston side down and blow air through the oil passage in the back of retainer.

REASSEMBLY SERVICE POINTS

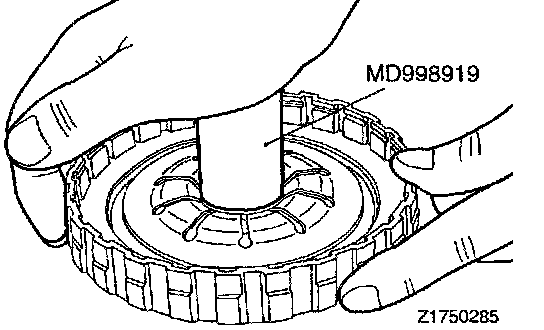

>A< SNAP RING INSTALLATION

1. Using the special tool, fit the snap ring.

CAUTION: Make sure that the snap ring is fitted in position in the groove.

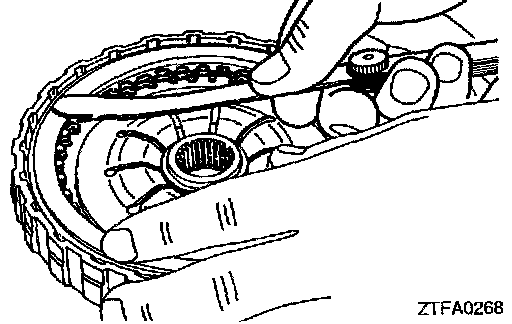

>B< SNAP RING SELECTION

1. Check clearance between the snap ring and clutch reaction plate. To check the clearance, hold entire inside diameter of the clutch reaction plate down with 50 N (11 lbs.) force. If clearance is out of standard value, select a snap ring to obtain the standard value.
Standard value: 0.60 - 0.85 mm (0.0236 - 0.0335 inch)
