Annulus Gear and Transfer Drive Gear Set

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINT
BEARING/TRANSFER DRIVE GEAR REMOVAL

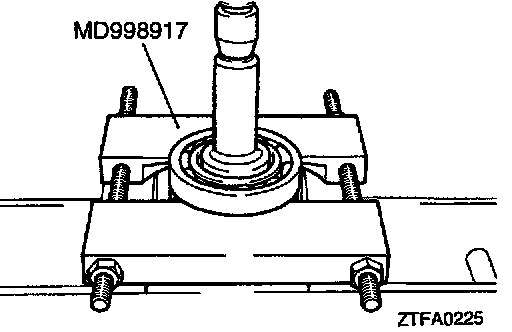

1. Using the special tool, remove the transfer drive gear together with two bearings from the output flange.

CAUTION: Install the special tool in position between the output flange and bearings.

2. Using the special tool, remove the bearings from both sides of the transfer drive gear.

REASSEMBLY SERVICE POINTS
>A< TRANSFER DRIVE GEAR / BEARING INSTALLATION

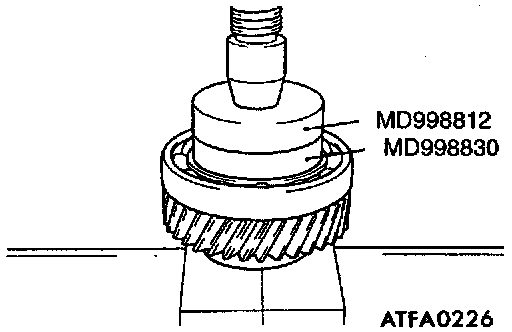

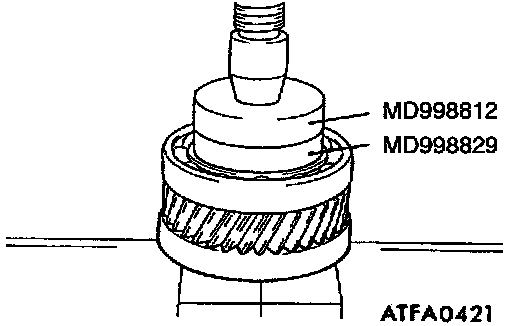

1. Using the special tool, press-fit the bearings into both sides of the transfer drive gear.

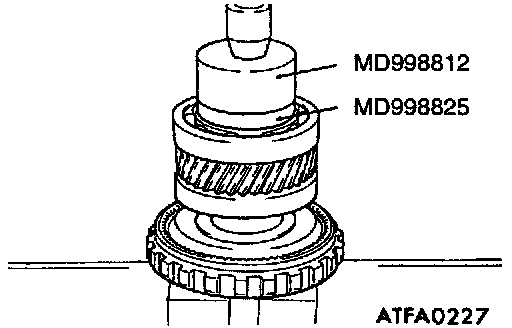

2. Using the special tool, install the transfer drive gear to the output flange.

>B< SNAP RING SELECTION

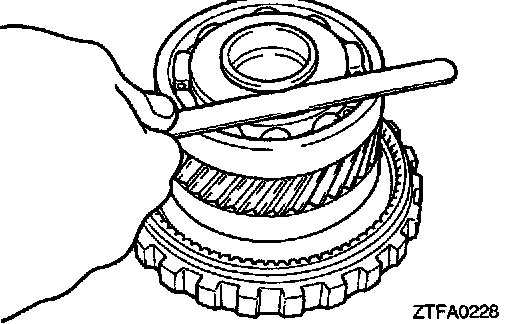

1. Measure the snap ring groove clearance and select the appropriate spacer to obtain the specified end play.
Standard value: 0.0 - 0.09 mm (0.0 - 0.0035 inch)
