Thrust Plate, Thrust Washer, Reaction Plate, Snap Ring

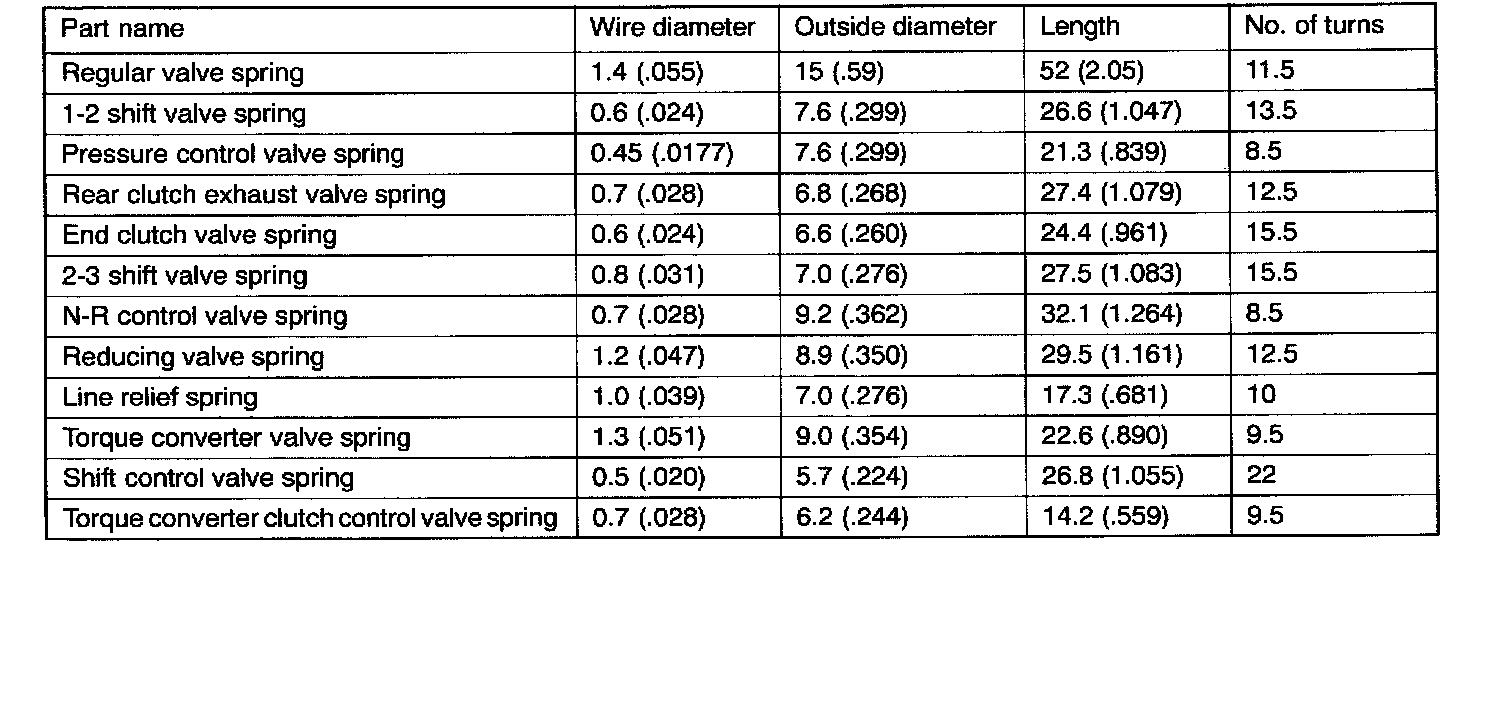

VALVE BODY SPRING IDENTIFICATION CHART
PRESSURE PLATES, SNAP RINGS AND SPACERS FOR ADJUSTMENT

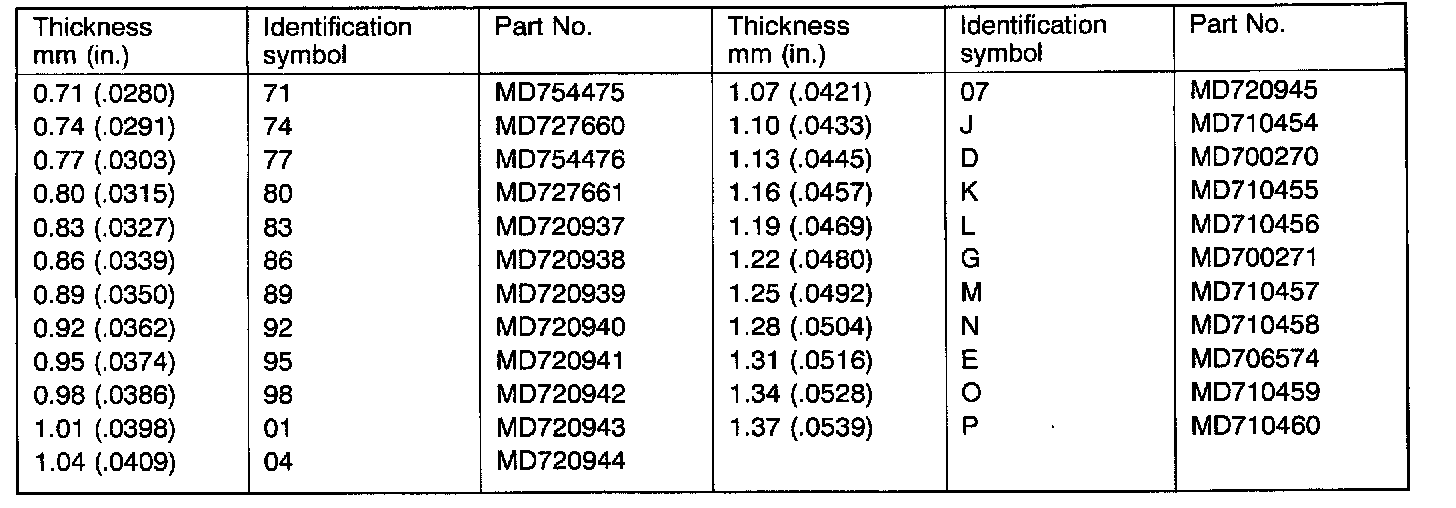

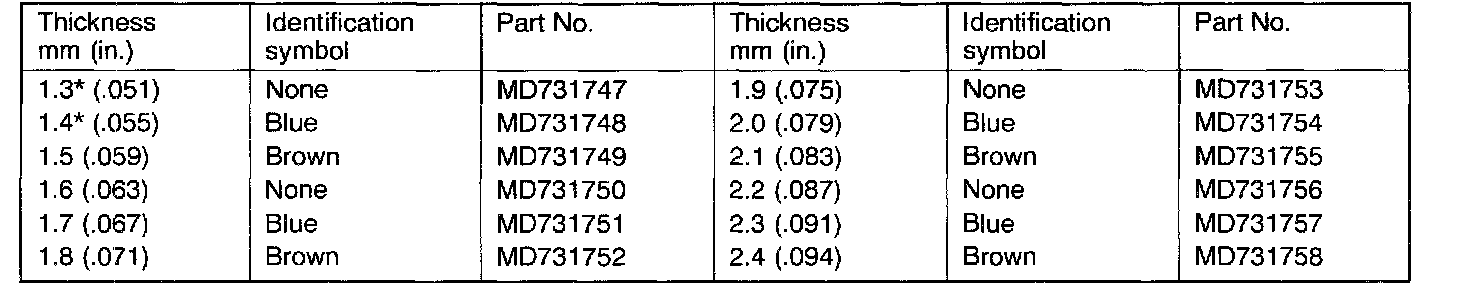

Pressure plate (For adjustment of low-reverse brake end play

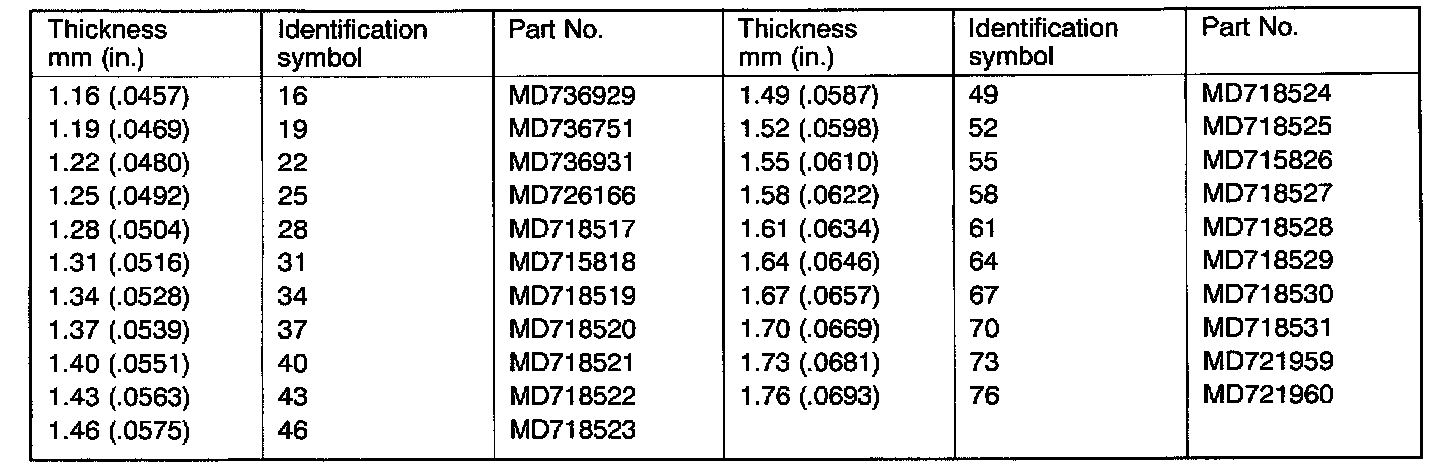

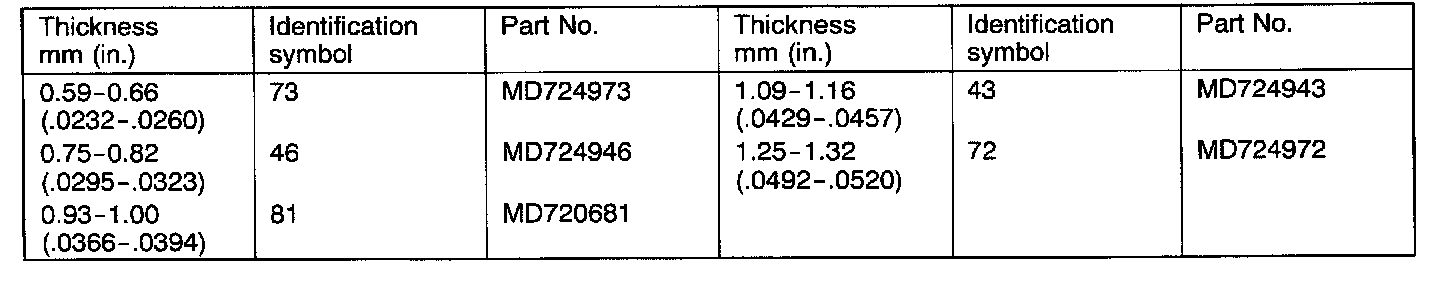

Snap ring (For adjustment of front clutch and rear clutch end play) *.. rear clutch only

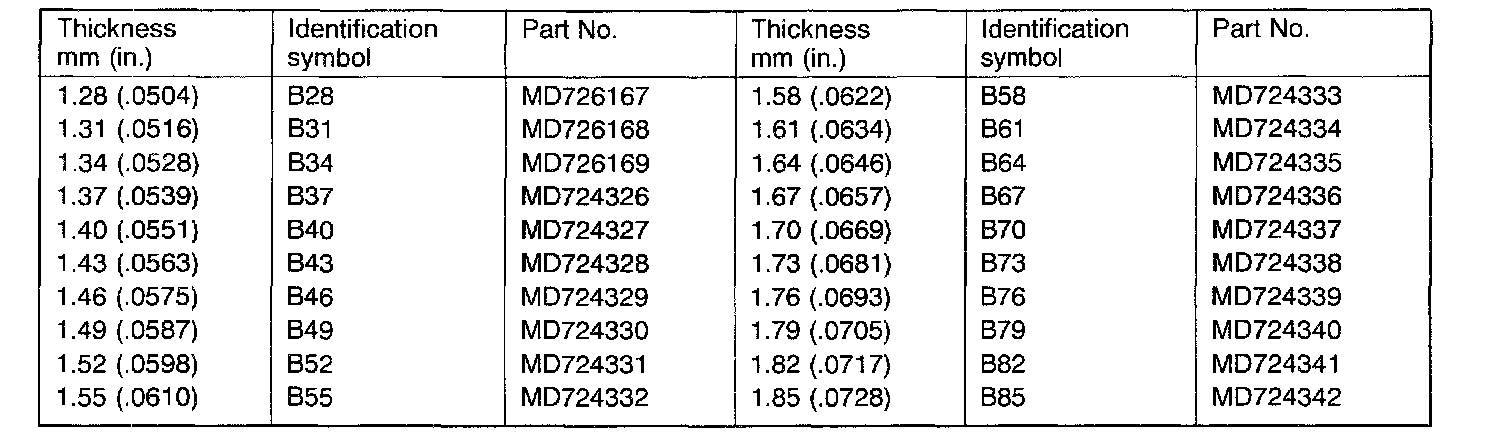

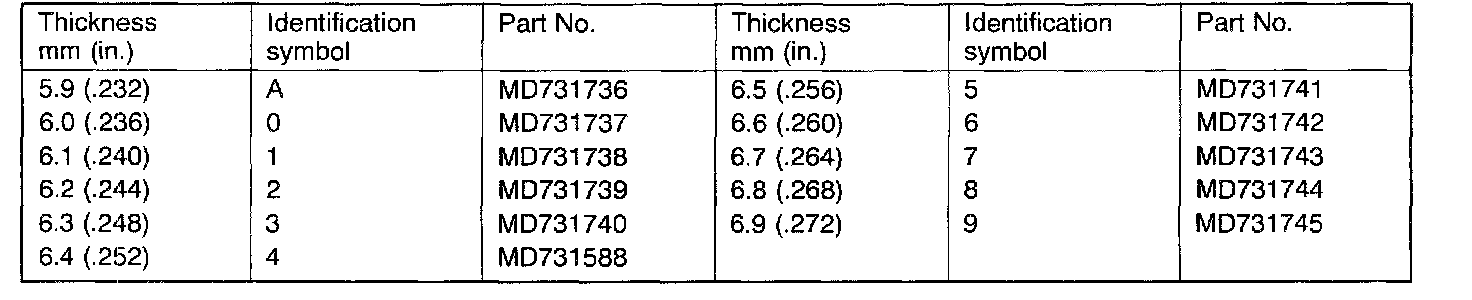

Snap ring (For adjustment of end clutch end play)

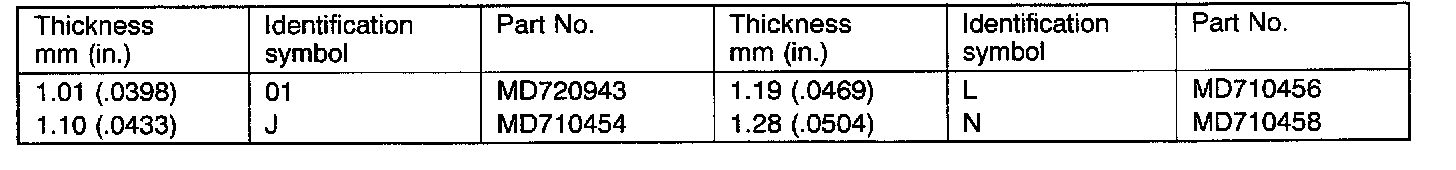

Spacer (For adjustment of transfer driven gear preload)

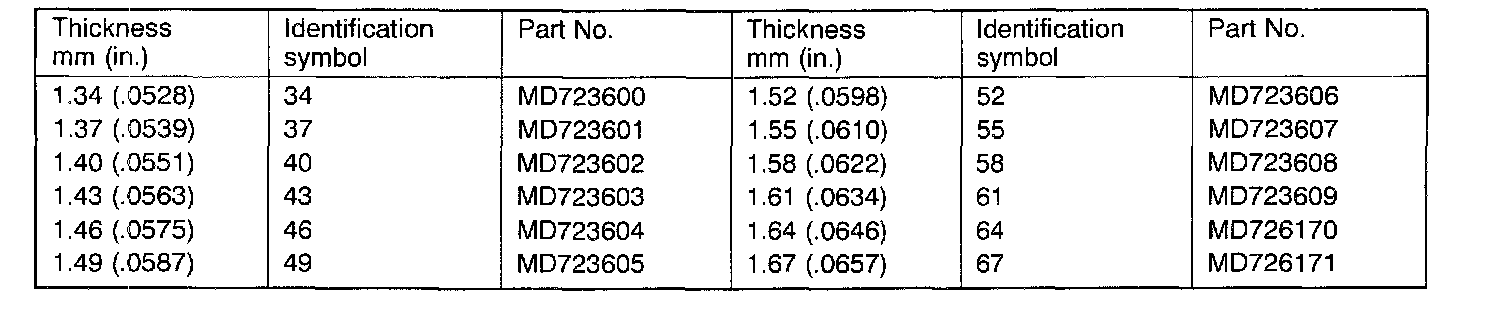

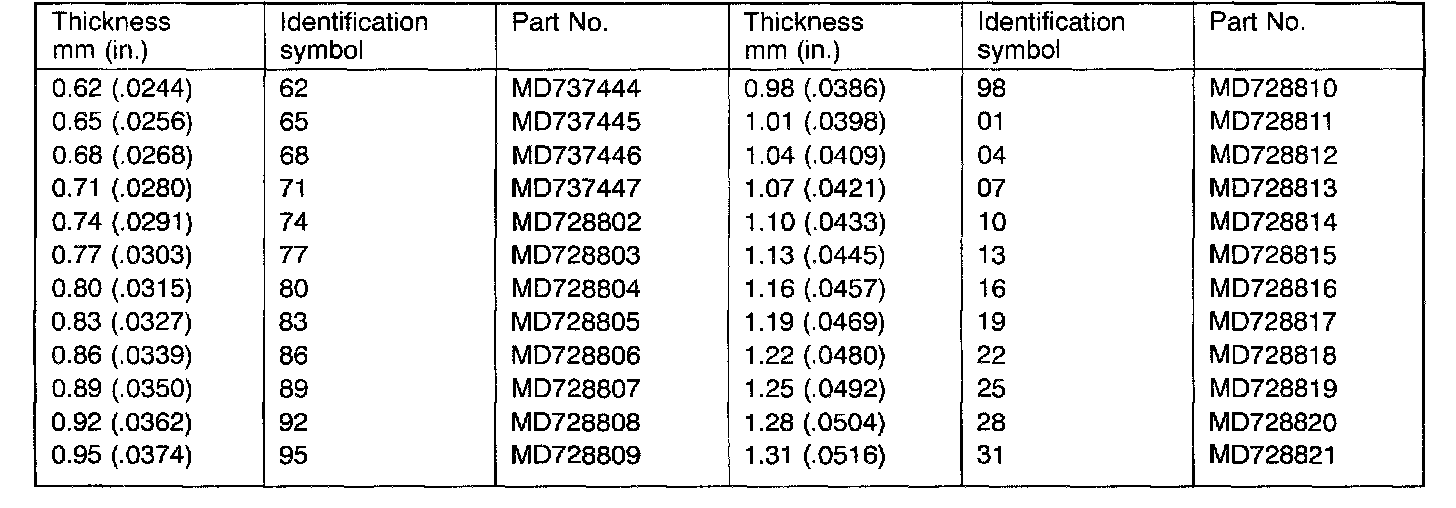

Snap ring (For adjustment of output flange bearing end play)

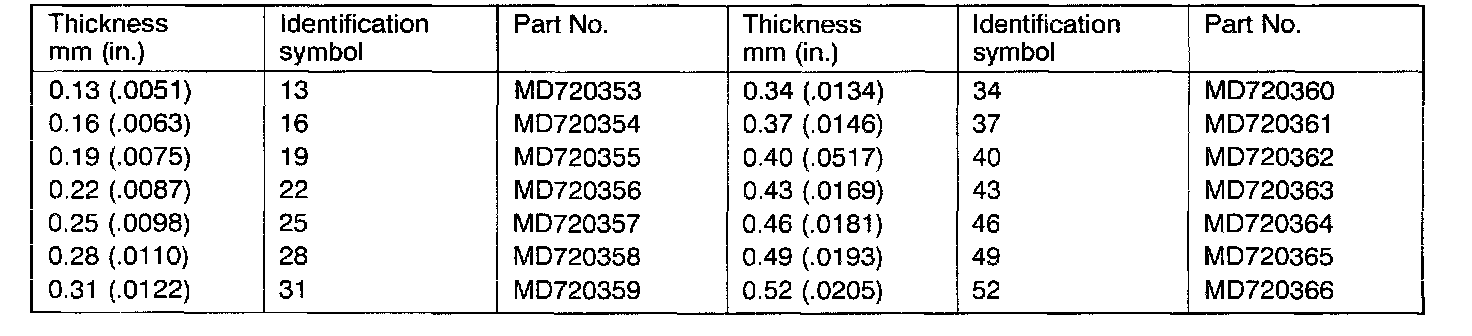

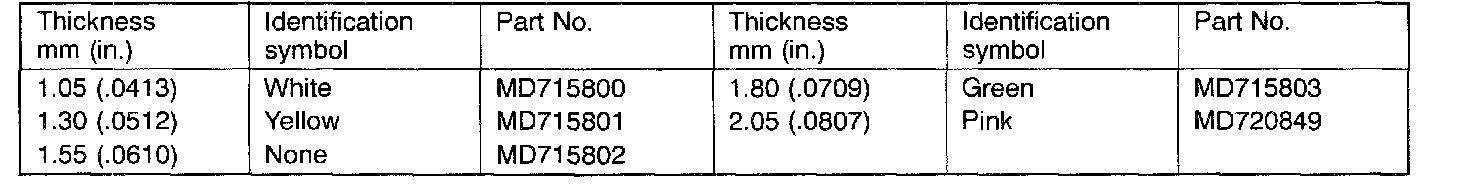

Spacer - F4A33 (For adjustment of differential case preload)
Spacer - W4A33 (For adjustment of differential case end play)

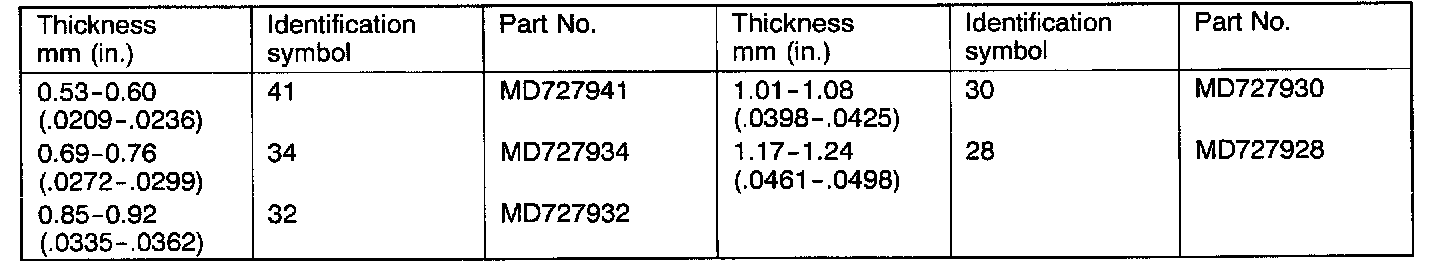

Spacer (For adjustment of differential gear and pinion backlash)

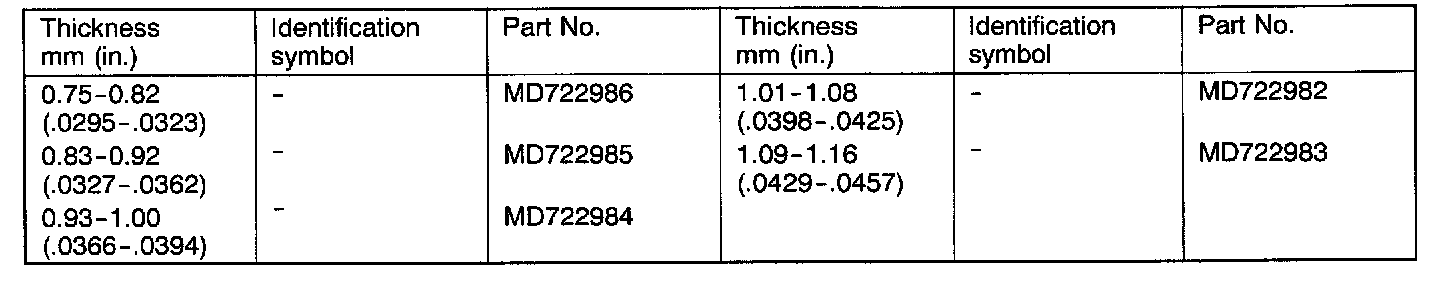

Spacer - W4A33 (For adjustment of center differential front side gear end play)
Spacer - W4A33 (For adjustment of center differential rear side gear end play)
Spacer - W4A33 (For adjustment of drive bevel gear mount)
Spacer - W4A33 (For adjustment of drive bevel gear train preload)
Spacer - W4A33 (For adjustment of driven bevel gear train preload)
Spacer - W4A33 (For adjustment of driven bevel gear mount)
Spacer - W4A33 (For adjustment of front output bearing preload)
