General Information

GENERAL INFORMATION
The automatic transaxles come in two models, namely, F4A23, F4A33 and W4A33. These transaxles are essentially the same as the conventional models.





FUNCTION ELEMENT TABLE

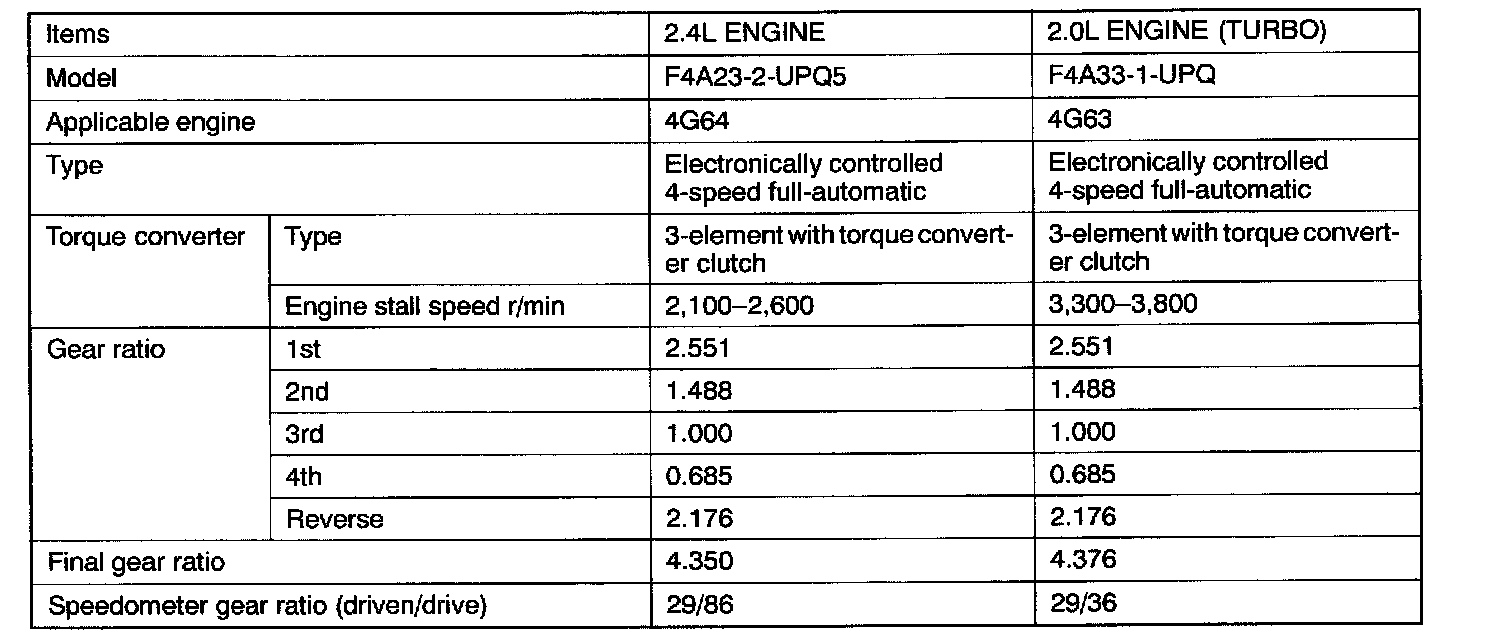

F4A23:

F4A33:

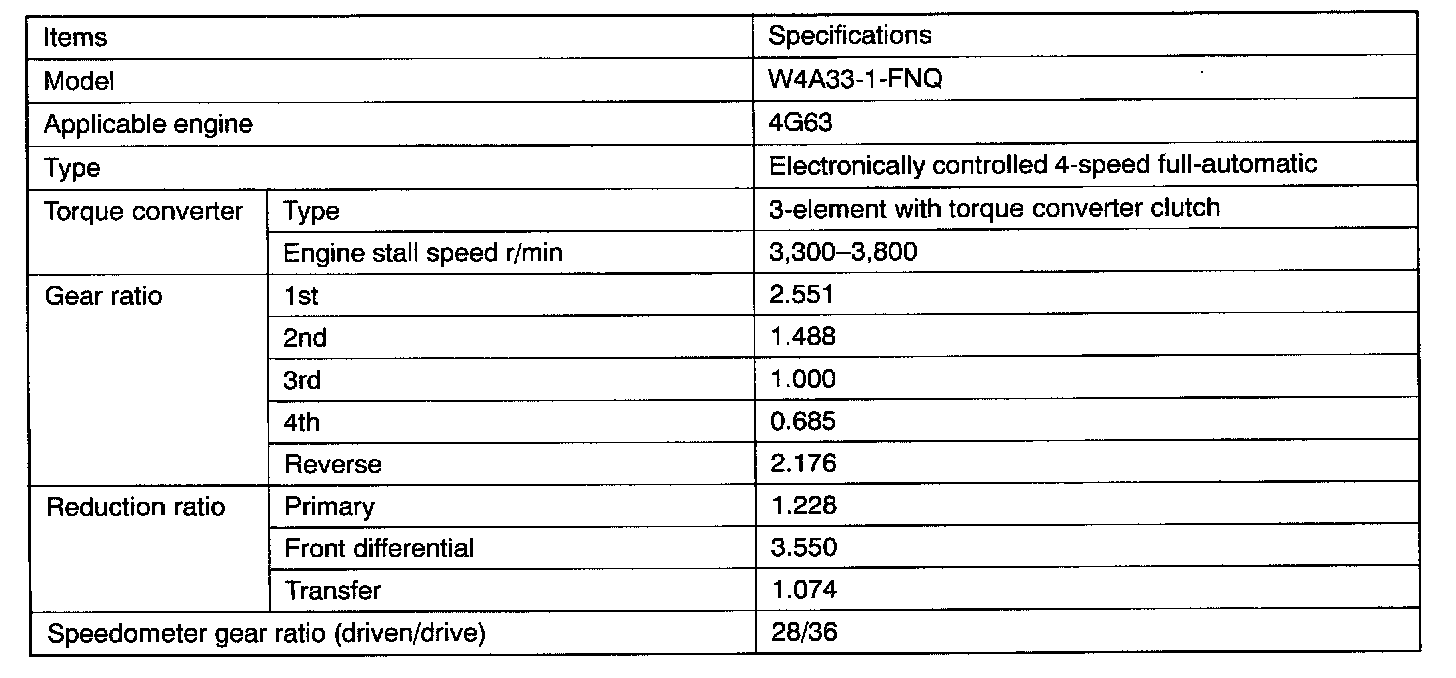

W4A33:

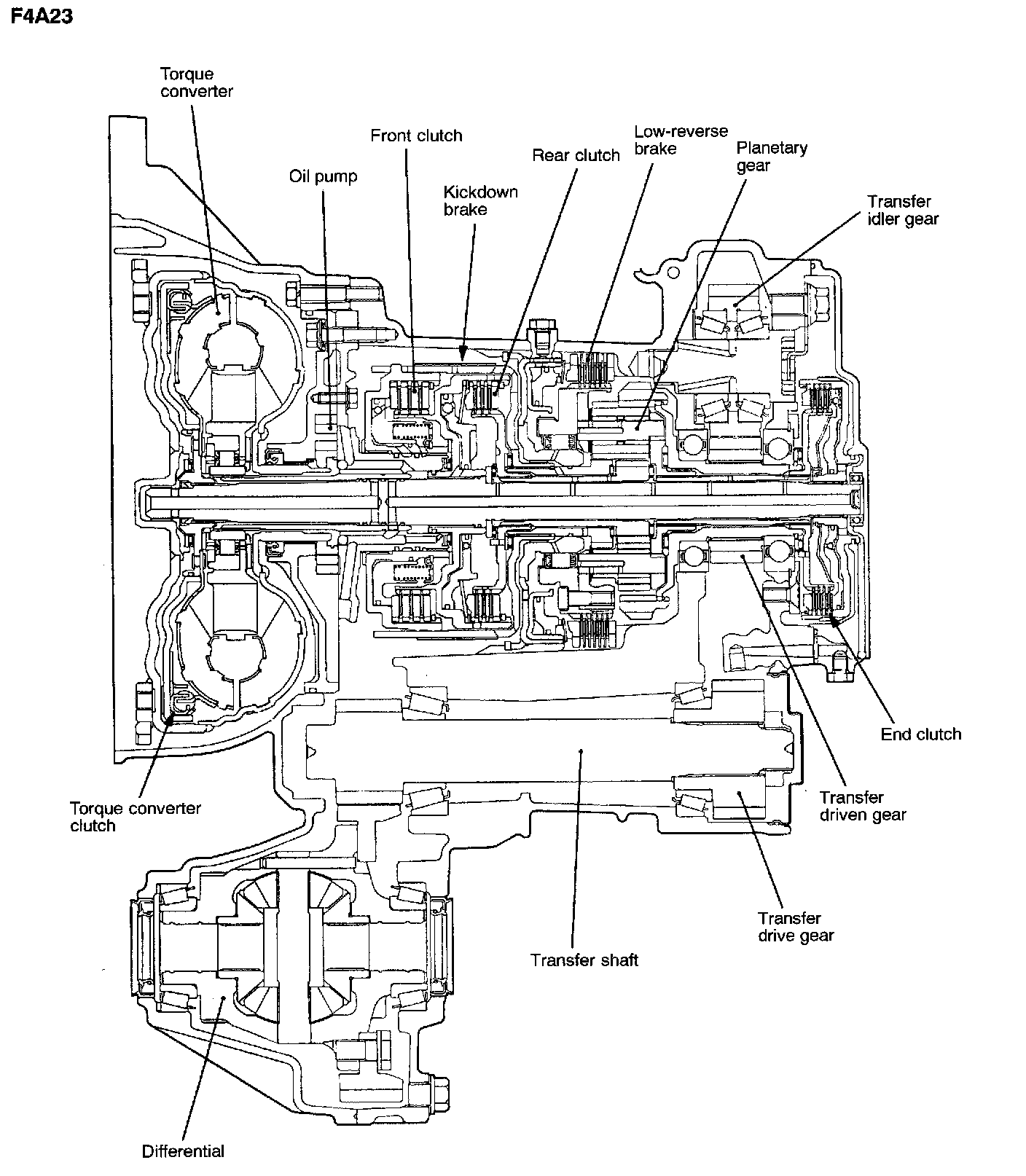

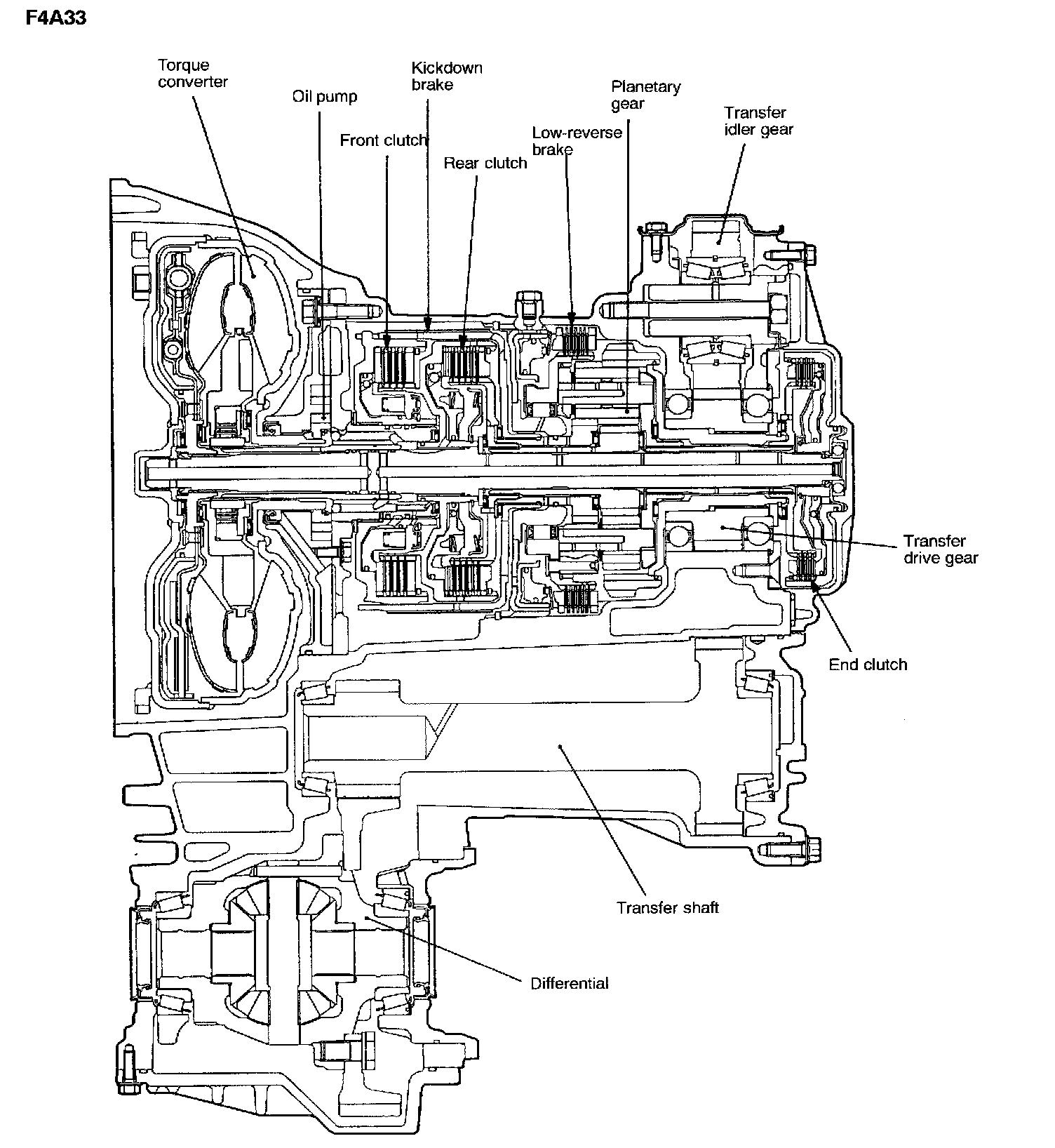

SECTIONAL VIEW
