Kickdown Servo Adjustment

KICKDOWN SERVO ADJUSTMENT
1. Completely remove all dirt and other materials adhered around the kickdown servo switch.
2. Remove the snap ring.
3. Remove the kickdown servo switch.

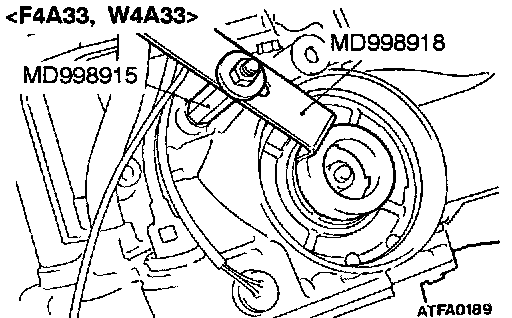

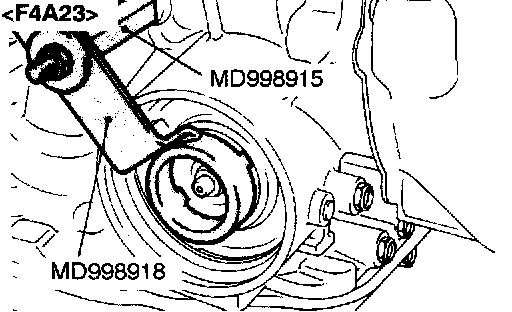

4. To prevent rotation of the piston, engage the pawl of the special tool into the notch of the piston, and using the adapter, secure the piston as shown to the left.

CAUTION:
1. Don't press in the piston with the special tool.
2. When mounting the adapter on the transaxle case, tighten it by hand. Do not overtighten.

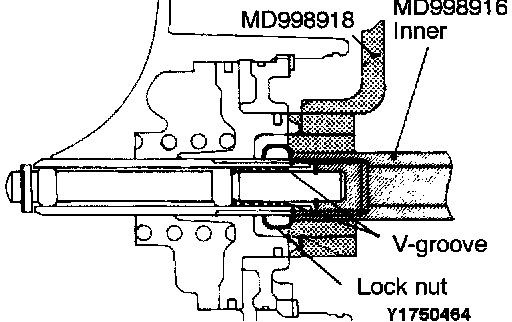

5. Loosen the lock nut to before the V-groove of the adjusting rod, and tighten the special tool (inner) until it contacts the lock nut.





6. Engage the special tool (outer) on the lock nut.

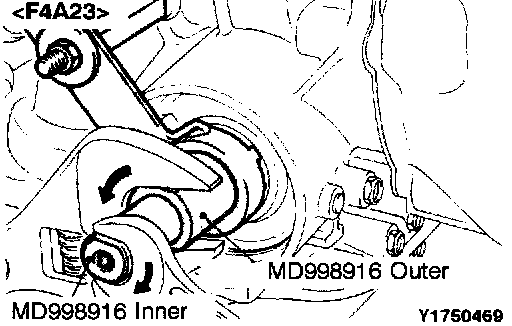

Rotating the outer cylinder counterclockwise and the inner cylinder clockwise, lock the lock nut and special tool (inner).

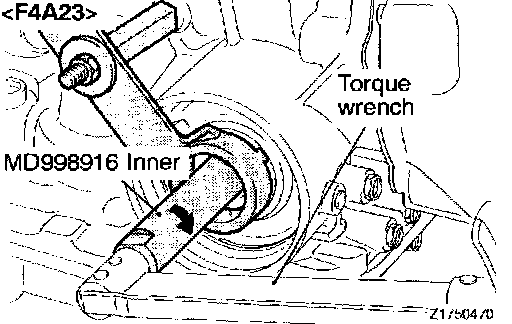

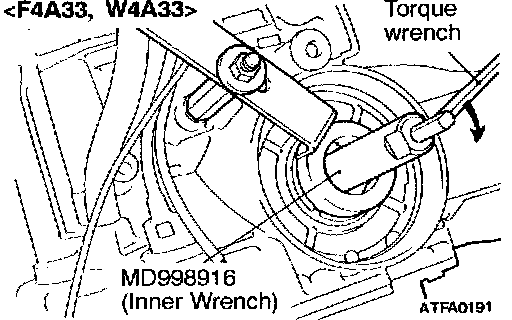

7. Attach a torque wrench to the special tool (inner) and tighten to a torque of 10 Nm (7.2 ft. lbs.) and repeating "Tighten" and "Loosen" two times then torque to 5 Nm (3.6 ft. lbs.). After that, back off the special tool (inner) 2 to 2-1/4 turns.

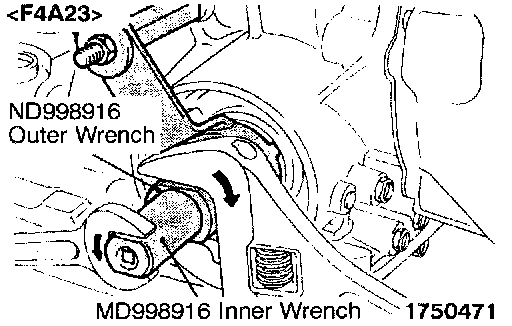

8. Engage the tool (outer) on the lock nut.

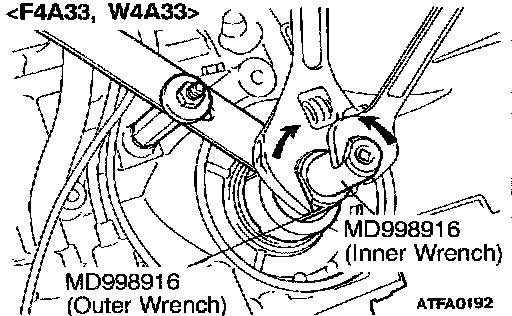

Rotating the outer cylinder clockwise and the inner cylinder counterclockwise, unlock the lock nut and special tool (inner).

CAUTION: When unlocking the nut and special tool, apply equal force to both parts.

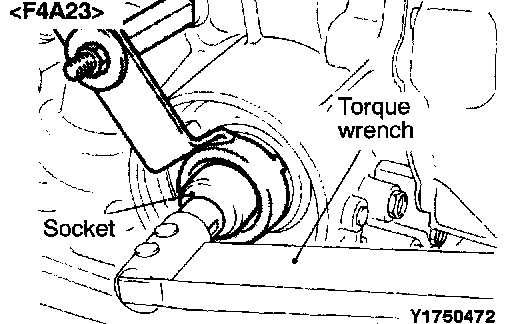

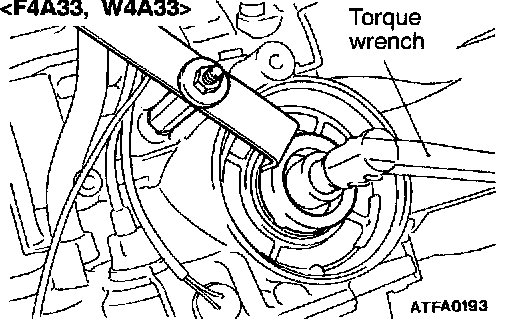

9. Tighten the lock nut by hand until the lock nut contacts the piston. Then using the torque wrench, tighten to the specified torque.
Lock nut: 29 Nm (21 ft. lbs.)

CAUTION: If it is rapidly tightened with the socket wrench or torque wrench, the lock nut and adjusting rod may rotate together.





10. Remove the special tool which fastens the piston. Attach the plug to the outlet of the low-reverse pressure.
