Continuity Check

Foreword
A circuit consists of the power supply, switch, relay, load, ground, etc. There are various methods to check a circuit including an overall check, voltage check, short-circuit check, and continuity check. Each of # these methods is briefly described in the following:

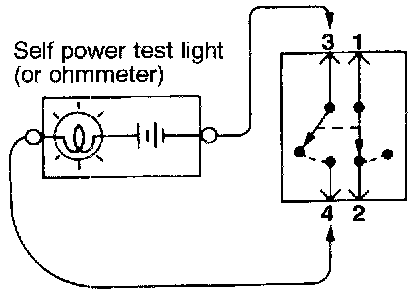

1. When the switch is in the OFF position, the self power test light must illuminate or the ohmmeter should read 0 Ohm, only when the terminals 1 and 2 are interconnected.
2. When the switch is the ON position, the self power test light should come on or the ohmmeter should read 0 Ohm, only when the terminals 3 and 4 are interconnected.
