Wheels: Testing and Inspection

WHEEL RUNOUT CHECK

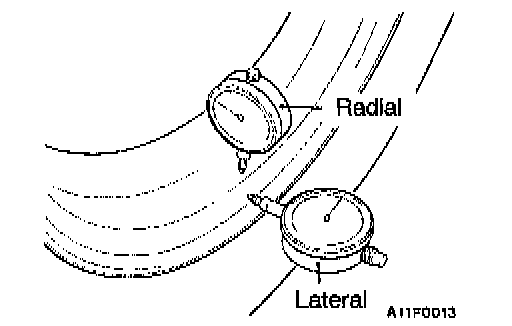

Jack up the vehicle so that the wheels are clear of the floor. While slowly turning the wheel, measure wheel runout with a dial indicator.

Limit:
Radial Runout:
Steel wheel; 1.2 mm (0.05 inch) or less
Aluminum wheel; 1.0 mm (0.04 inch) or less
Lateral Runout:
Steel wheel; 1.2 mm (0.05 inch) or less
Aluminum wheel; 1.0 mm (0.04 inch) or less
