Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Strut / Shock Absorber >> Service and Repair >> Rear Suspension >> Removal and Installation

Removal and Installation

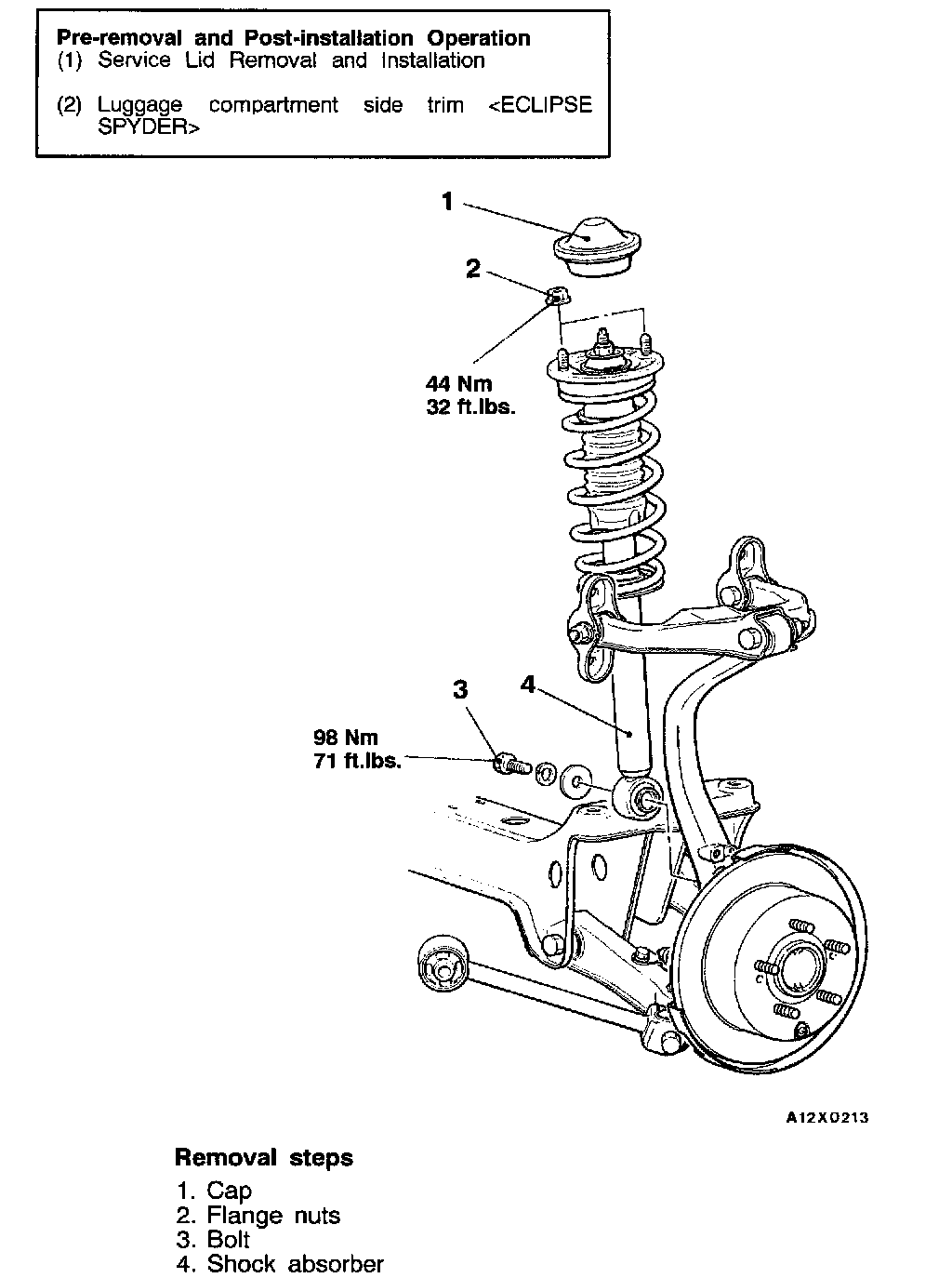

REMOVAL AND INSTALLATION

INSPECTION
- Check the rubber parts for cracks and wear.
- Check the shock absorber for malfunctions, oil leakage or abnormal noise.
