Front Suspension

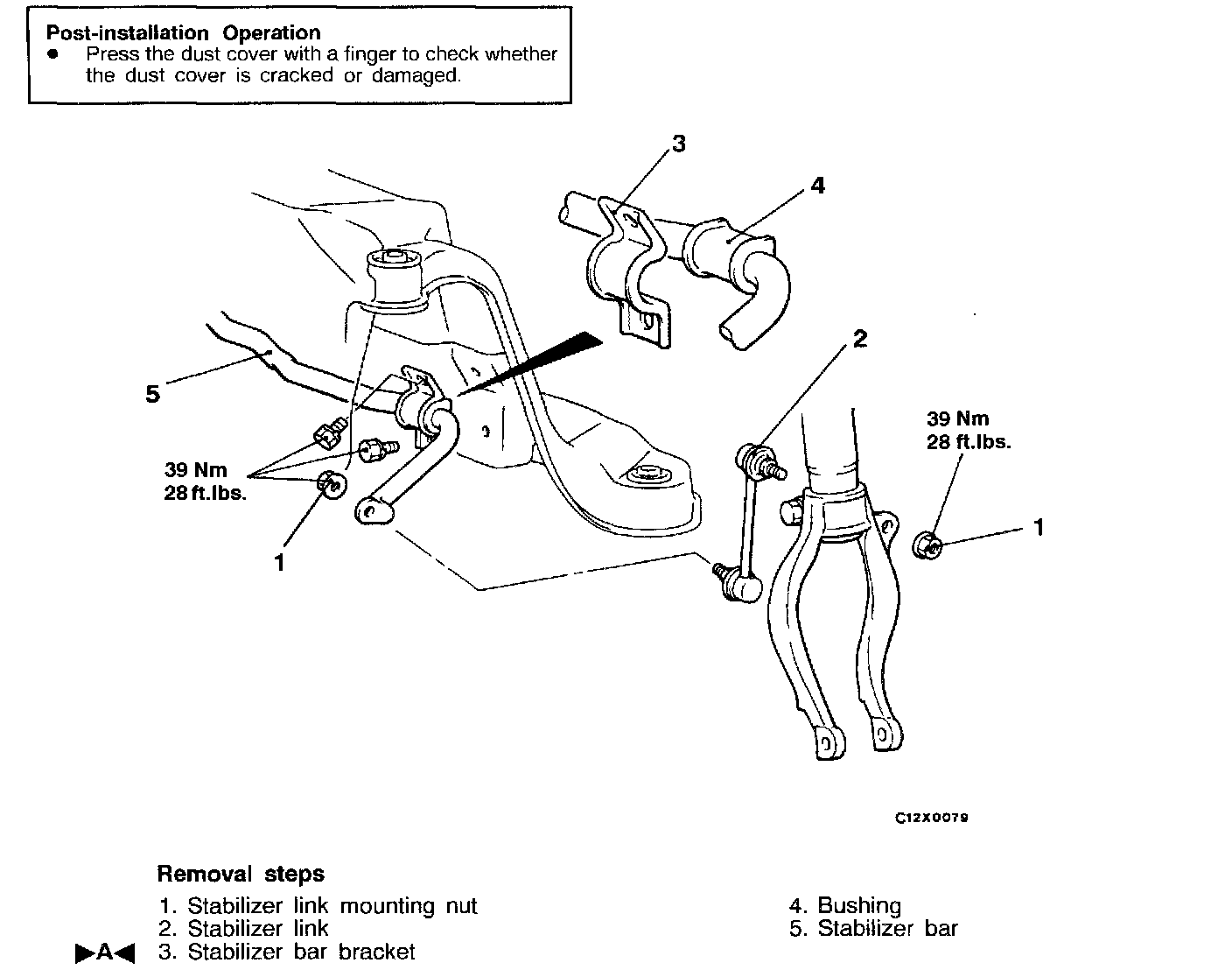

REMOVAL AND INSTALLATION

Installation Service Point
]A[ Stabilizer Bar Bracket Installation

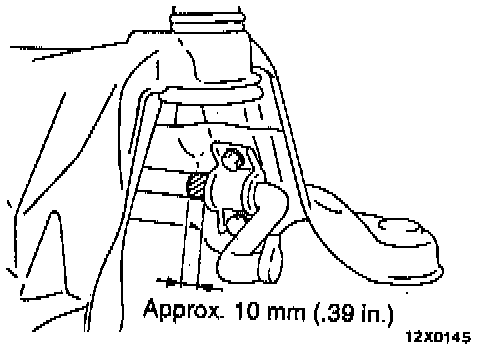

Position the stabilizer bar so that the marking on the stabilizer bar and the edge of the bracket becomes the reference value, and then tighten the stabilizer bar bracket mounting bolt.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the stabilizer bar for deterioration or damage.
- Check all bolts for condition and straightness.

Stabilizer Link Ball Joint Breakaway Torque Check





1. After shaking the ball joint stud several times, install the nut to the stud and use the special tool to measure the breakaway torque of the ball joint.

Standard value: 0.5 - 1.5 Nm (4 - 13 inch lbs.)

2. When the measured value exceeds the standard value, replace the stabilizer link.
3. When the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to use that ball joint.

Ball Joint Dust Cover Check
1. Check the dust cover for cracks or damage by pushing it with finger.
2. When dust cover is cracked or damaged, replace the stabilizer link assembly.

NOTE: If the dust cover is cracked, the ball joint could be damaged, so if the dust cover is damaged during maintenance work, replace it.

Stabilizer Link Ball Joint Dust Cover Replacement





Replace the dust cover by the following procedure only if the dust cover has become damaged by accident during servicing.
1. Remove the clip ring and the dust cover.





2. Apply multipurpose grease to the inside of the dust cover.

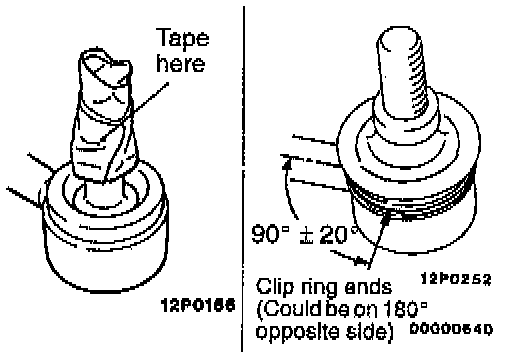

3. Use plastic tape on the stabilizer link threads as shown in the illustration, and then install the dust cover to the stabilizer link.
4. Secure the dust cover by the clip ring.

NOTE: When installing the clip ring, align the ends at a 90° angle from the axis of the stabilizer link.

5. Check the dust cover for cracks or damaged by pushing it with finger.
