Rear Suspension

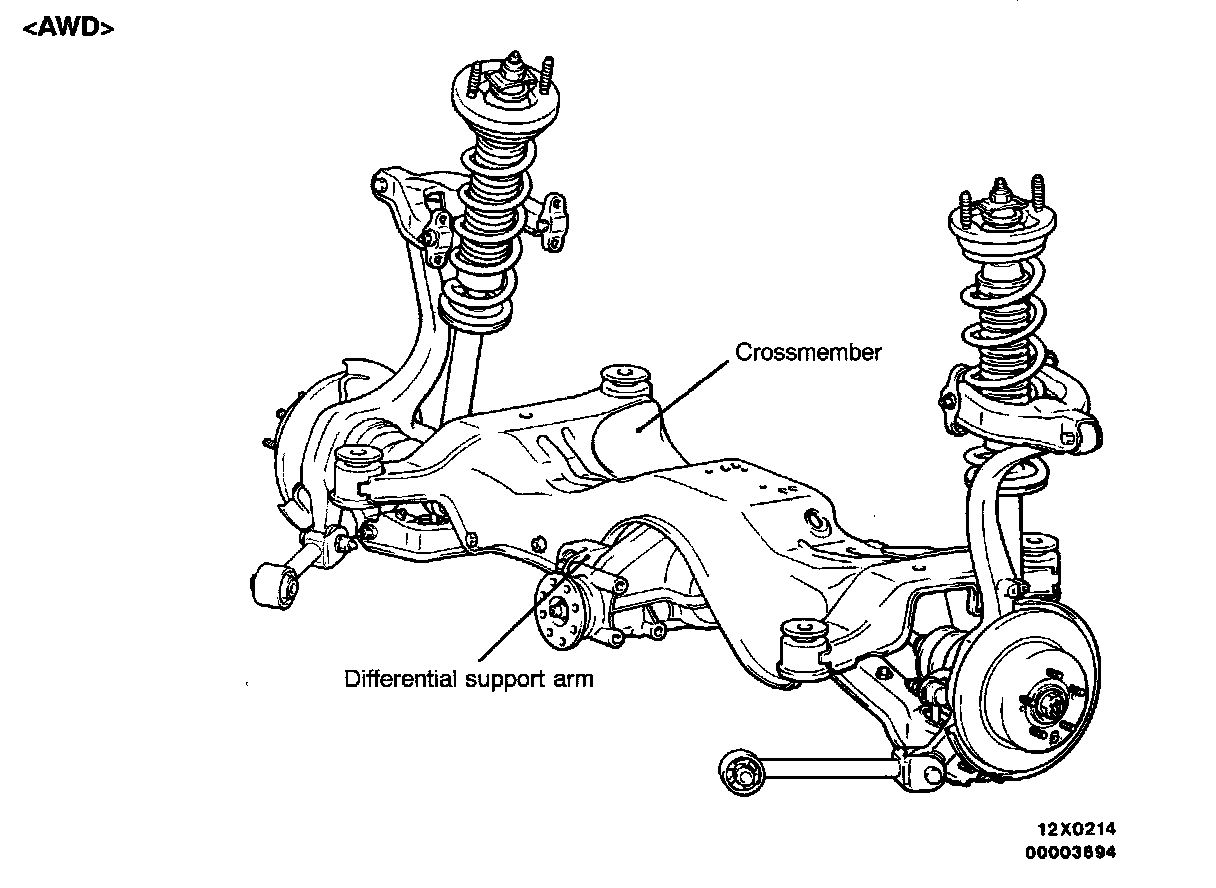

A newly-developed multi-link type of suspension has been adopted for the rear suspension. The layout of each arm and the rigidity balance of each bushing have been rationalized to provide both excellent steering stability and riding comfort.
