Upper Control Arm

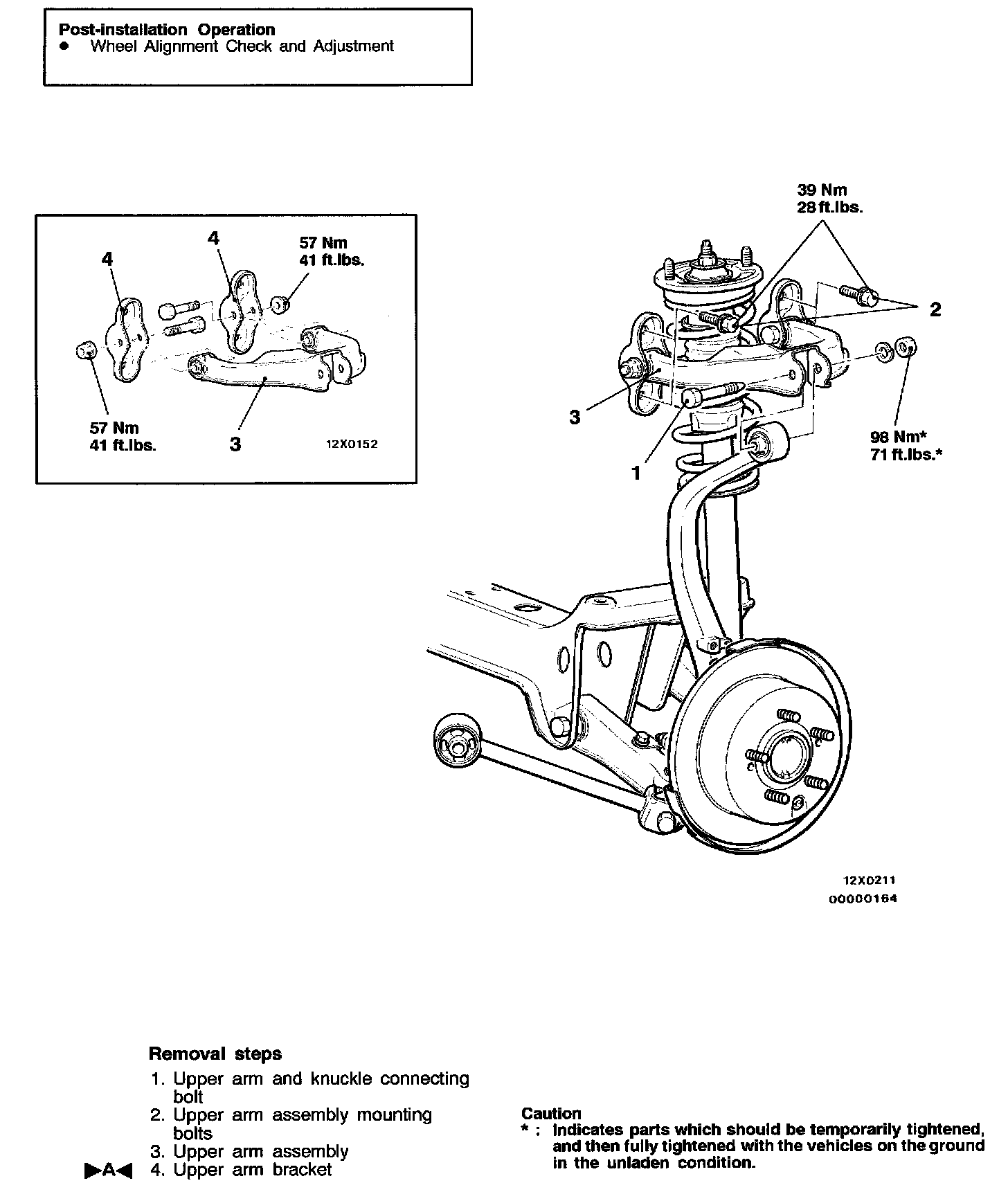

REMOVAL AND INSTALLATION

Installation Service Point
]A[ Upper Arm Bracket Installation

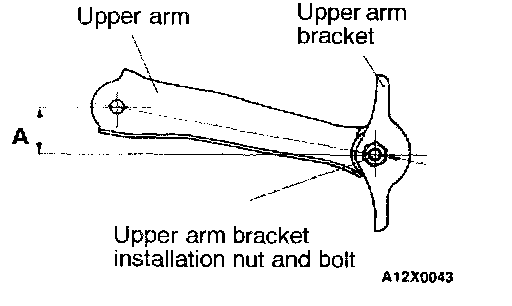

Tighten the upper arm bracket installation nut and bolt so that the dimension shown in the illustration is at the standard value.

Standard value (A): 37.2 ± 2 mm (1.46 ± 0.08 inch)





NOTE: If the upper arm bracket is installed with the former-mentioned standard value, the reference dimension is determined as follows;
B: 213.5 mm (8.4 inch)
C: 269.2 mm (10.6 inch)

INSPECTION
- Check the bushings for wear and deterioration.
- Check the upper arm for bends or damage.
- Check all bolts for condition and straightness.
