Lower Control Arm

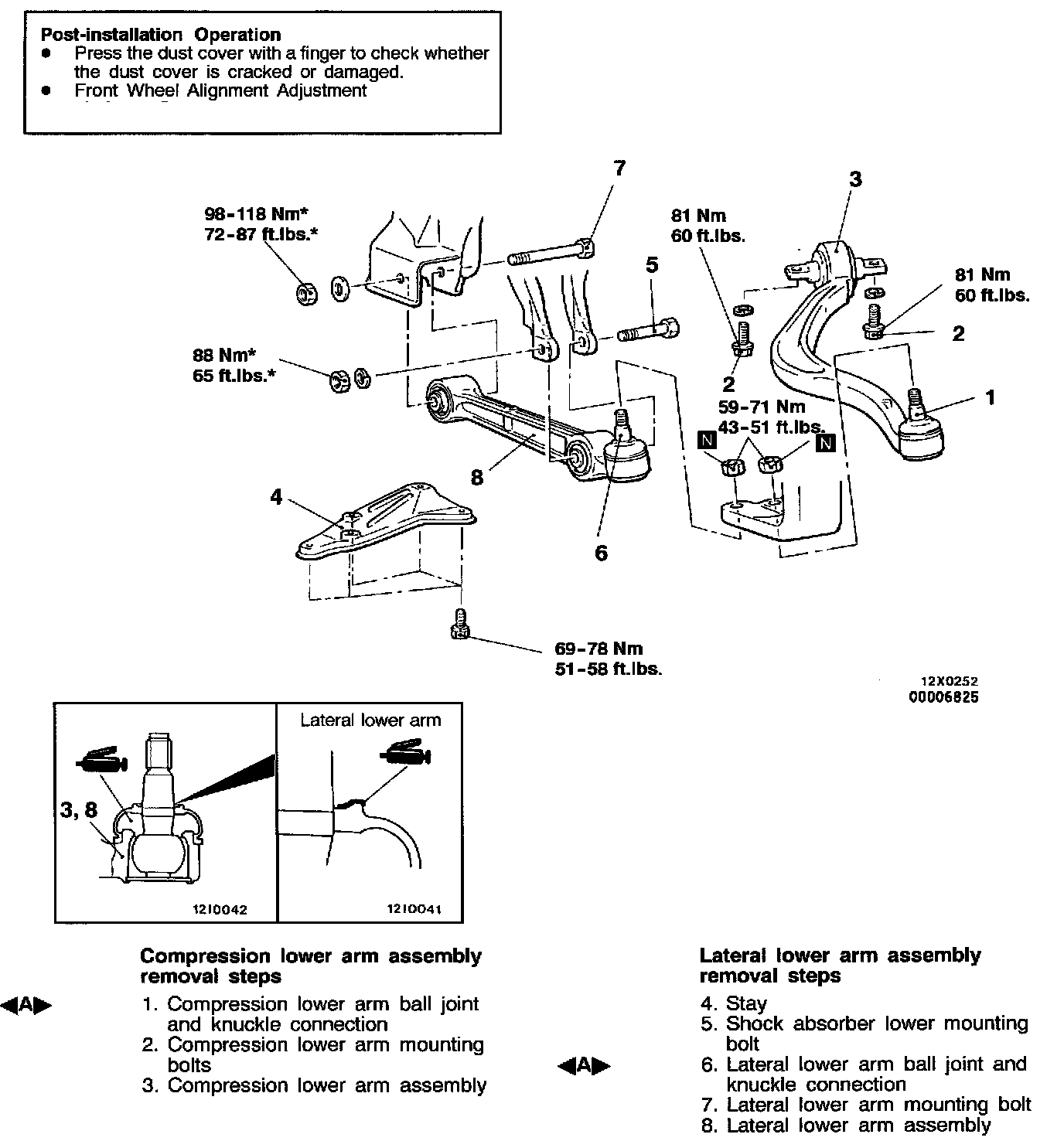

REMOVAL AND INSTALLATION

Removal Service Point
[A] Compression Lower Arm Ball Joint And Knuckle/Lateral Lower Arm Ball Joint And Knuckle Disconnection





CAUTION:

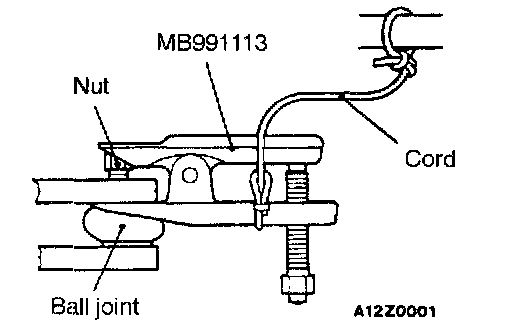

1. Use the special tool to loosen the tie rod end mounting nut. Only loosen the nut; do not remove it from the ball joint.
2. Support the special tool with a cord, etc. to prevent it from coming off.

INSPECTION
- Check the bushings for wear and deterioration.
- Check the lower arm for bends or damage.
- Check all bolts for condition and straightness.

Ball Joint Breakaway Torque Check

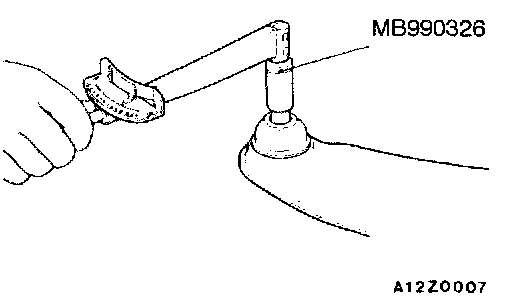

1. After shaking the ball joint stud several times, install the nut to the stud and use the special tool to measure the breakaway torque of the ball joint.

Compression lower arm ball joint
Standard value: 0.5 - 2.5 Nm (4 - 22 inch lbs.)
Lateral lower arm ball joint
Standard value: 1.5 Nm (13 inch lbs.) or less

2. When the measured value exceeds the standard value, replace the compression lower arm assembly or lateral lower arm assembly.
3. When the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to use that ball joint.

Ball Joint Dust Cover Check
1. Check the dust cover for cracks or damage by pushing it with finger.
2. When dust cover is cracked or damaged, replace the compression lower arm assembly or lateral lower arm assembly.

NOTE: If the dust cover is cracked, the ball joint could be damaged, so if the dust cover is damaged during maintenance work, replace it.

Lower Arm Ball Joint Dust Cover Replacement





Replace the dust cover by the following procedure only if the dust cover has become damaged by accident during servicing.
1. Remove the dust cover.
2. Apply multipurpose grease to the inside of the dust cover.
3. Apply multipurpose grease to the shown portion on the top of the lateral lower arm assembly dust cover.

CAUTION: Be careful not to let multipurpose grease touch the ball joint thread and the knuckle joint (tapered portion). If it touches, wipe away it.

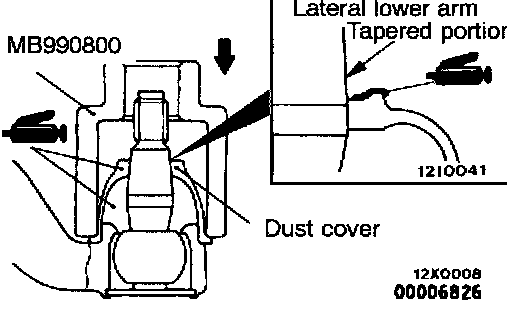

4. Drive in the dust cover with special tool until it is fully seated.
5. Check the dust cover for cracks or damage by pushing it with finger.
