Home >> Mitsubishi >> 1999 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Removal and Replacement

Removal and Replacement

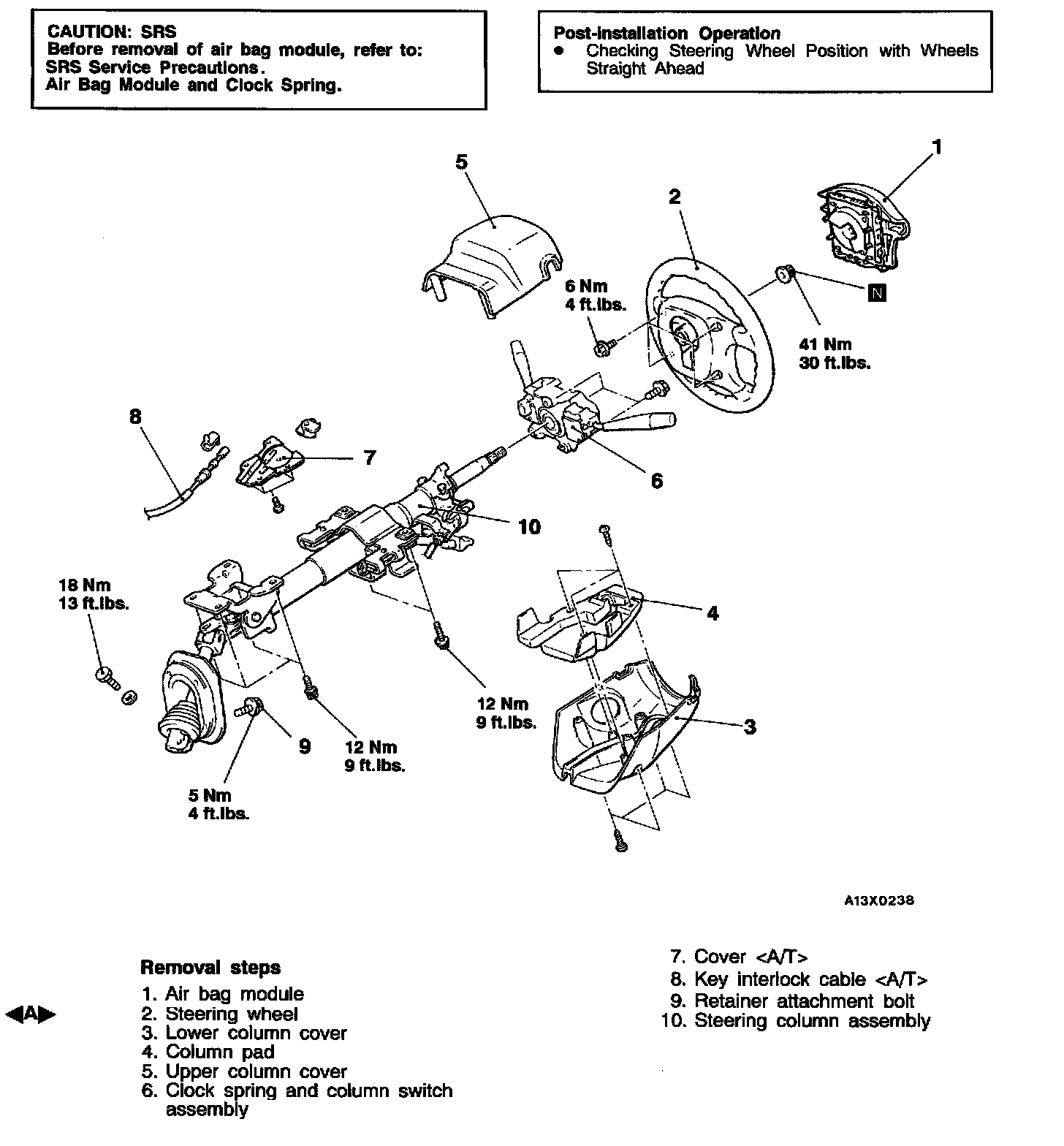

REMOVAL AND INSTALLATION

Removal Service Point

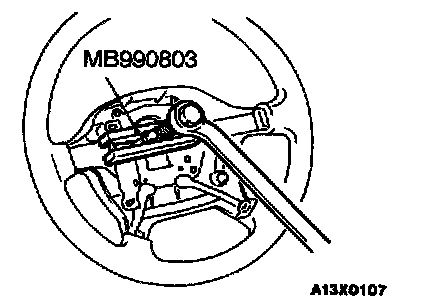

[A] Steering Wheel Removal
