Removal and Replacement

REMOVAL

Removal Service Point

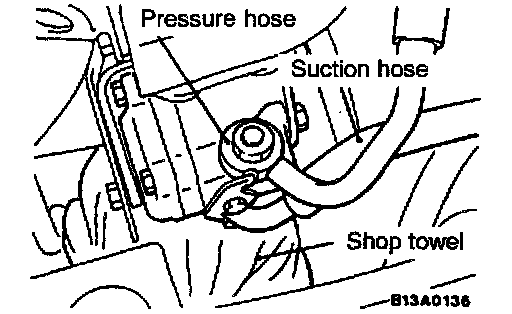

[A] Suction Hose/Pressure Hose Removal





CAUTION: Generator is below the oil pump, so cover the generator with a shop towel before removing any of the hoses.

INSTALLATION

Installation Service Point

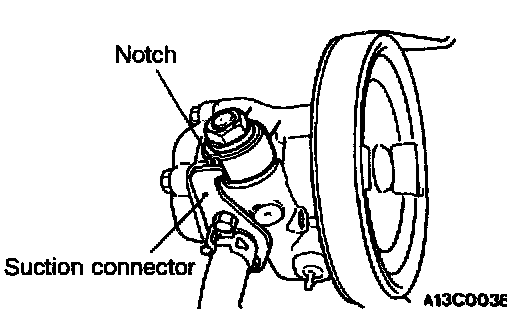

]A[ Pressure Hose Installation





Connect the pressure hose so that its notch part contacts the suction connector.
