Front Steering Knuckle: Service and Repair

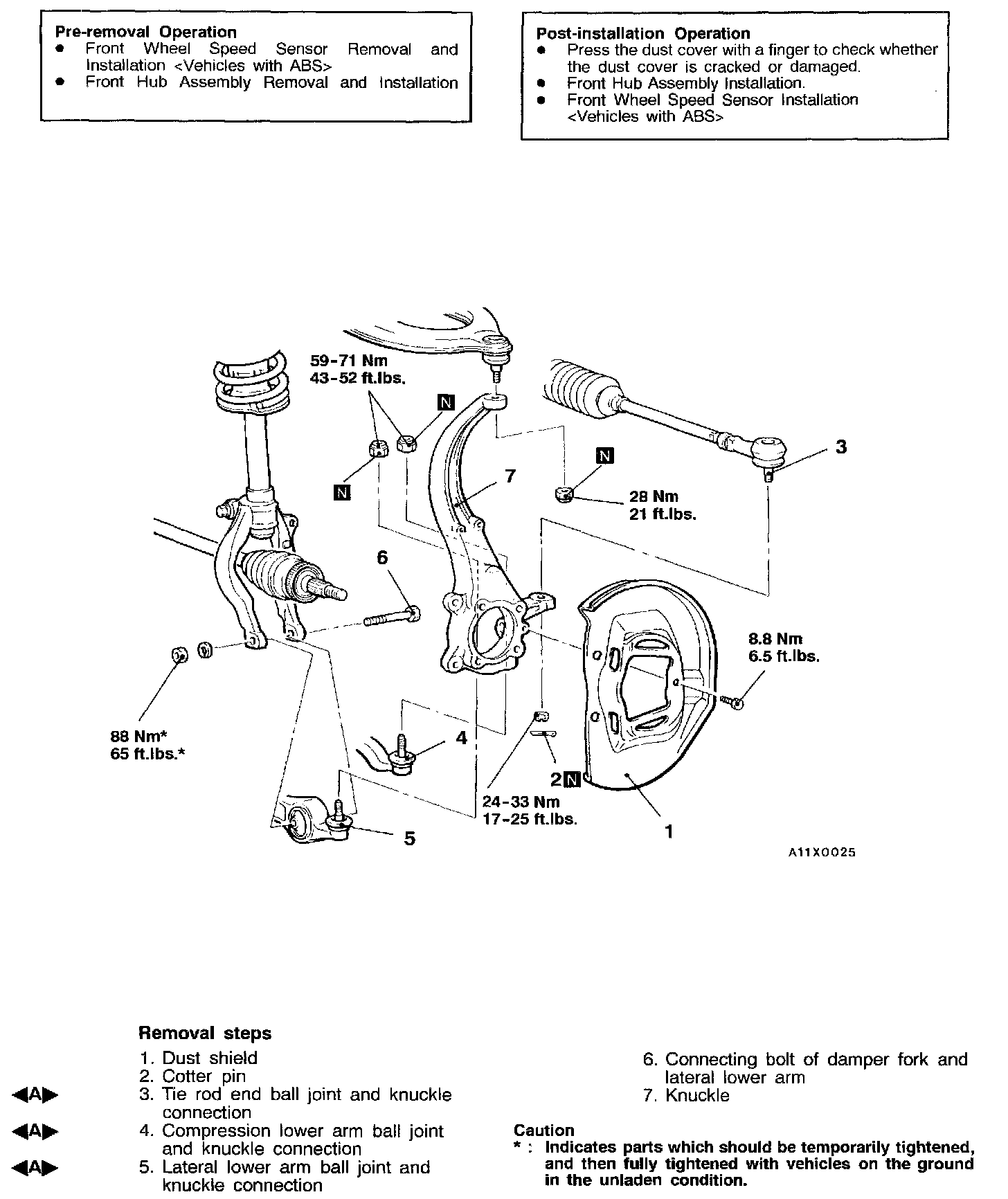

REMOVAL AND INSTALLATION

Removal Service Point

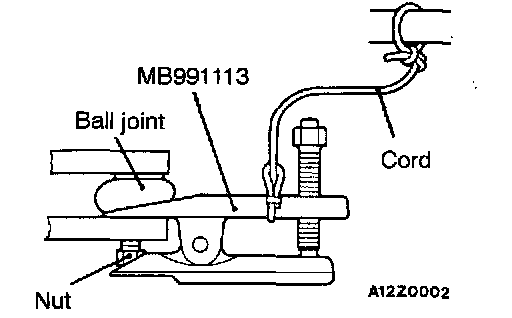

[A] Tie Rod End Ball Joint And Knuckle/Compression Lower Arm Ball Joint And Knuckle/Lateral Lower Arm Ball Joint And Knuckle Disconnection





CAUTION: Support the special tool with a cord, etc; to prevent it from coming off.

NOTE: Use the special tool to loosen the tie rod end mounting nut. Only loosen the nut; do not remove it from the ball joint.

INSPECTION
- Check the knuckle for damage, bending or cracking.
