Starting System: Testing and Inspection

TROUBLESHOOTING GUIDE

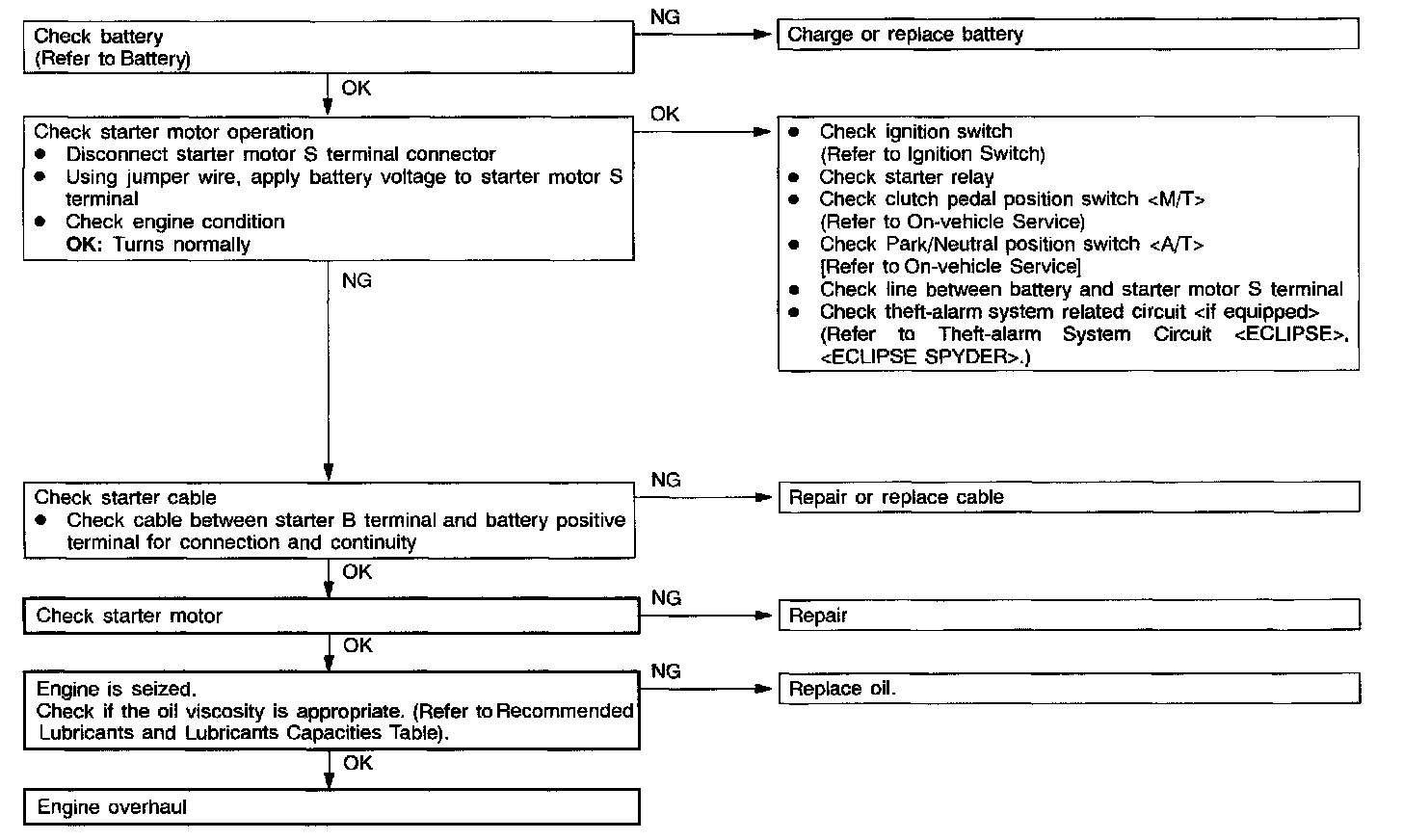

The starting system troubleshooting guide is shown in the following chart.

TROUBLESHOOTING HINTS
The starter motor does not operate.
- Check the starter (coil).
- Check for poor contact at the battery terminals and starter.
- Check park/neutral position switch.
- Check starter relay.
- Check clutch pedal position switch.
- Check theft-alarm starter relay.
- Check key reminder switch.
