Overhaul

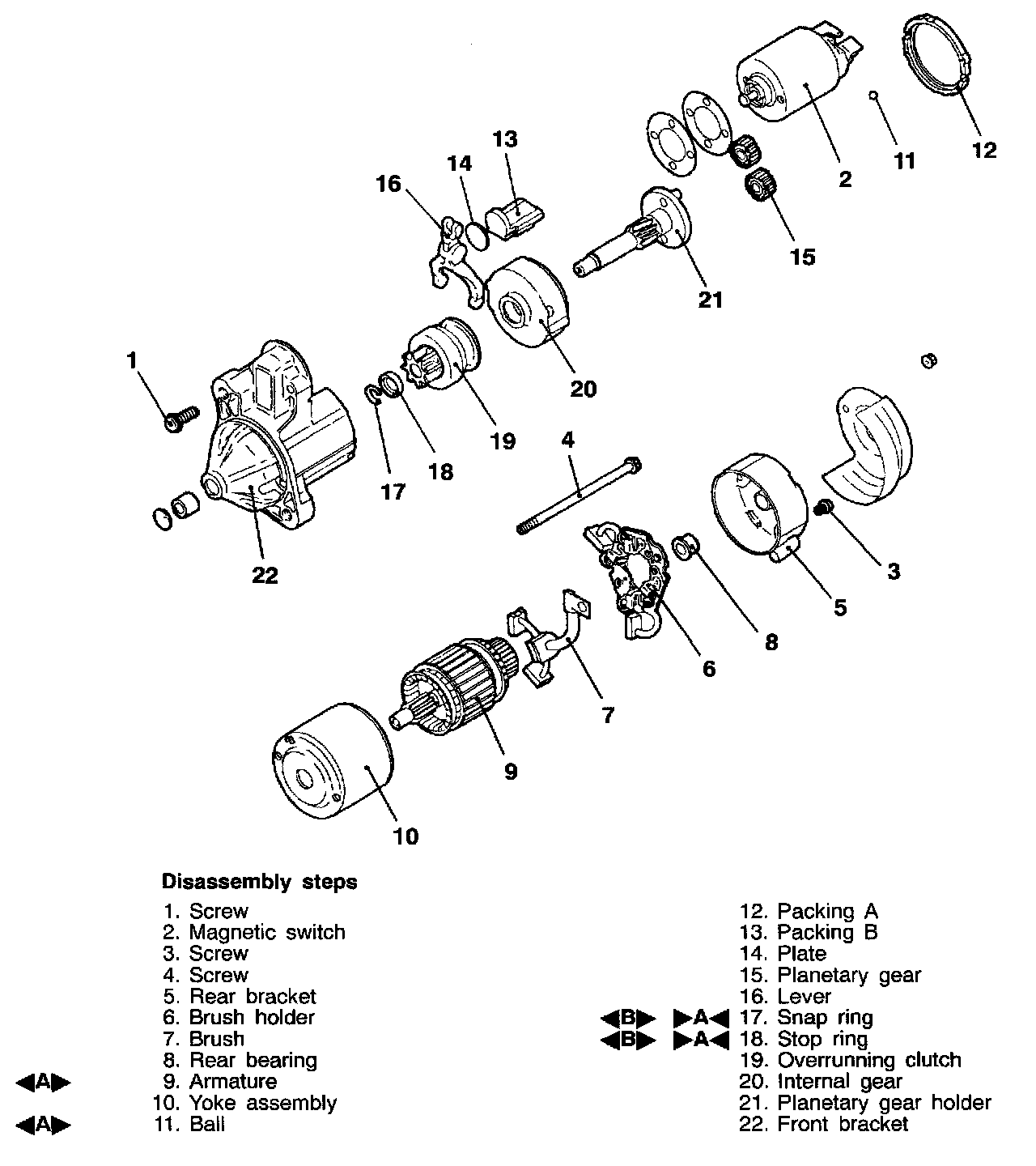

DISASSEMBLY AND REASSEMBLY
DISASSEMBLY SERVICE POINTS
ARMATURE/BALL REMOVAL
CAUTION: When removing the armature, take care not to lose the ball (which is used as a bearing) in the armature end.
SNAP RING/STOP RING REMOVAL
Snap Ring/Stop Ring Removal:
1. Press the stop ring, by using an appropriate socket wrench, to the snap ring side.
Snap Ring/Stop Ring Removal:
2. After removing the snap ring (by using snap-ring pliers), remove the stop ring and the overrunning clutch.
STARTER MOTOR PART CLEANING
1. Do not immerse parts in cleaning solvent. Immersing the yoke and field coil assembly and/or armature will damage insulation. Wipe these parts with a cloth only.
2. Do not immerse drive unit in cleaning solvent. Overrunning clutch is pre-lubricated at the factory and solvent will wash lubrication from clutch.
3. The drive unit may be cleaned with a brush moistened with cleaning solvent and wiped dry with a cloth.
REASSEMBLY SERVICE POINT
Stop Ring/Snap Ring Installation:
>A< STOP RING/SNAP RING INSTALLATION
Using a suitable pulling tool, pull overrunning clutch stop ring over snap ring.
