Starter Motor: Adjustments

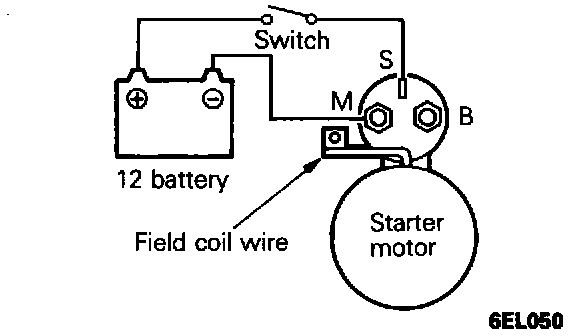

PINION GAP ADJUSTMENTPinion Gap Adjustment:
1. Disconnect wire from M-terminal of magnetic switch.
2. Connect a 12V battery between S-terminal and M-terminal.
3. Set the switch to "ON", and pinion will move out.
CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent coil from burning.
Pinion Gap Adjustment:
4. Check pinion to stopper clearance (pinion gap) with a feeler gauge.
Standard value: 0.5 - 2.0 mm (0.020 - 0.079 in.)
Pinion Gap Adjustment:

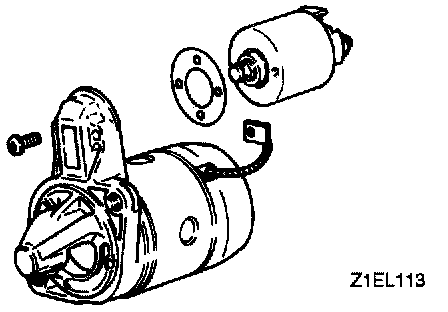

5. If pinion gap is out of specification, adjust by adding or removing gaskets between magnetic switch and front bracket.
